Steering Wheel Secondary/Configurable Control Wiring Schematics

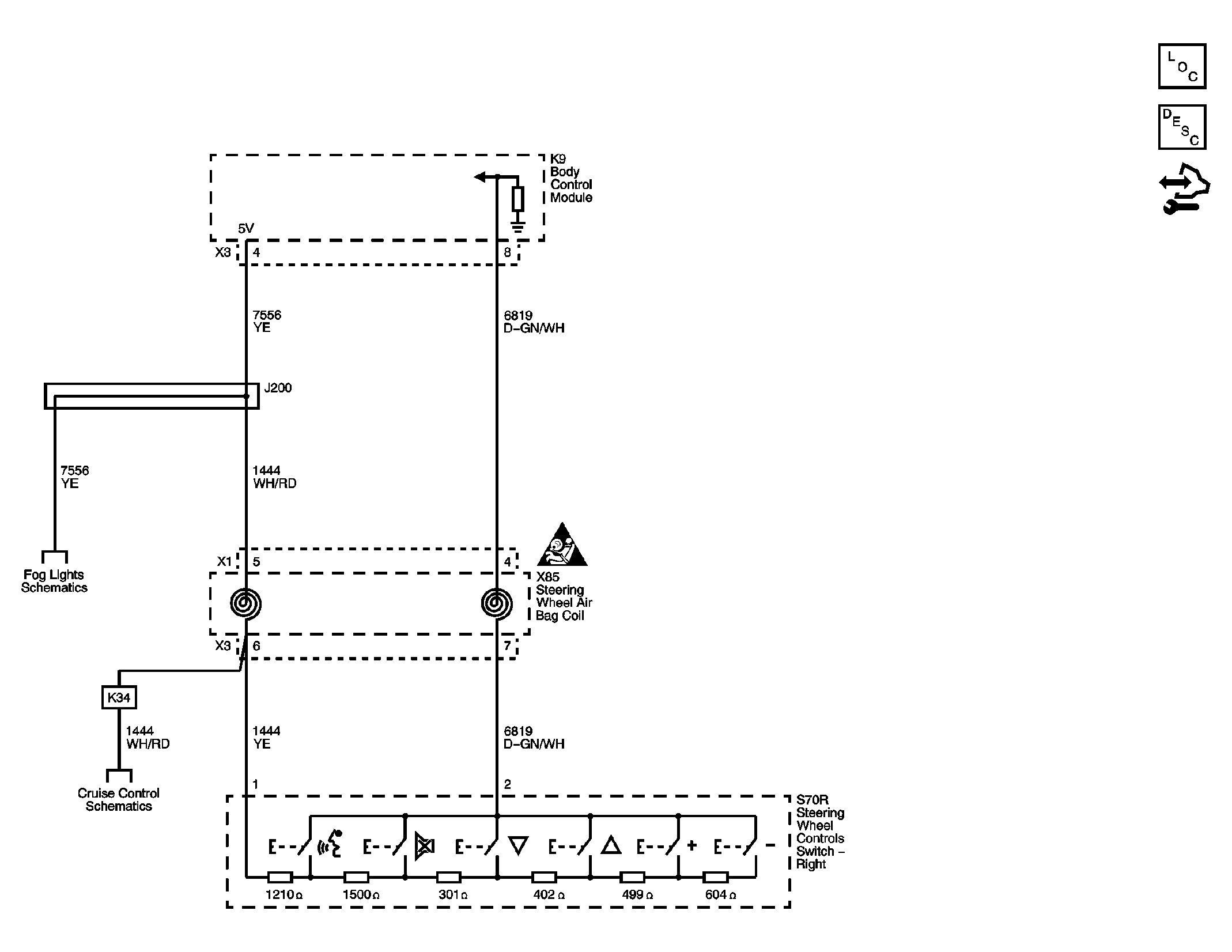

Fig 1: W1Y Wiring Schematic

GM2458145

Courtesy of GENERAL MOTORS CORP.
