Engine Coolant Level Indicator Module Replacement

WARNING: This page is about a different car, the 2012 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

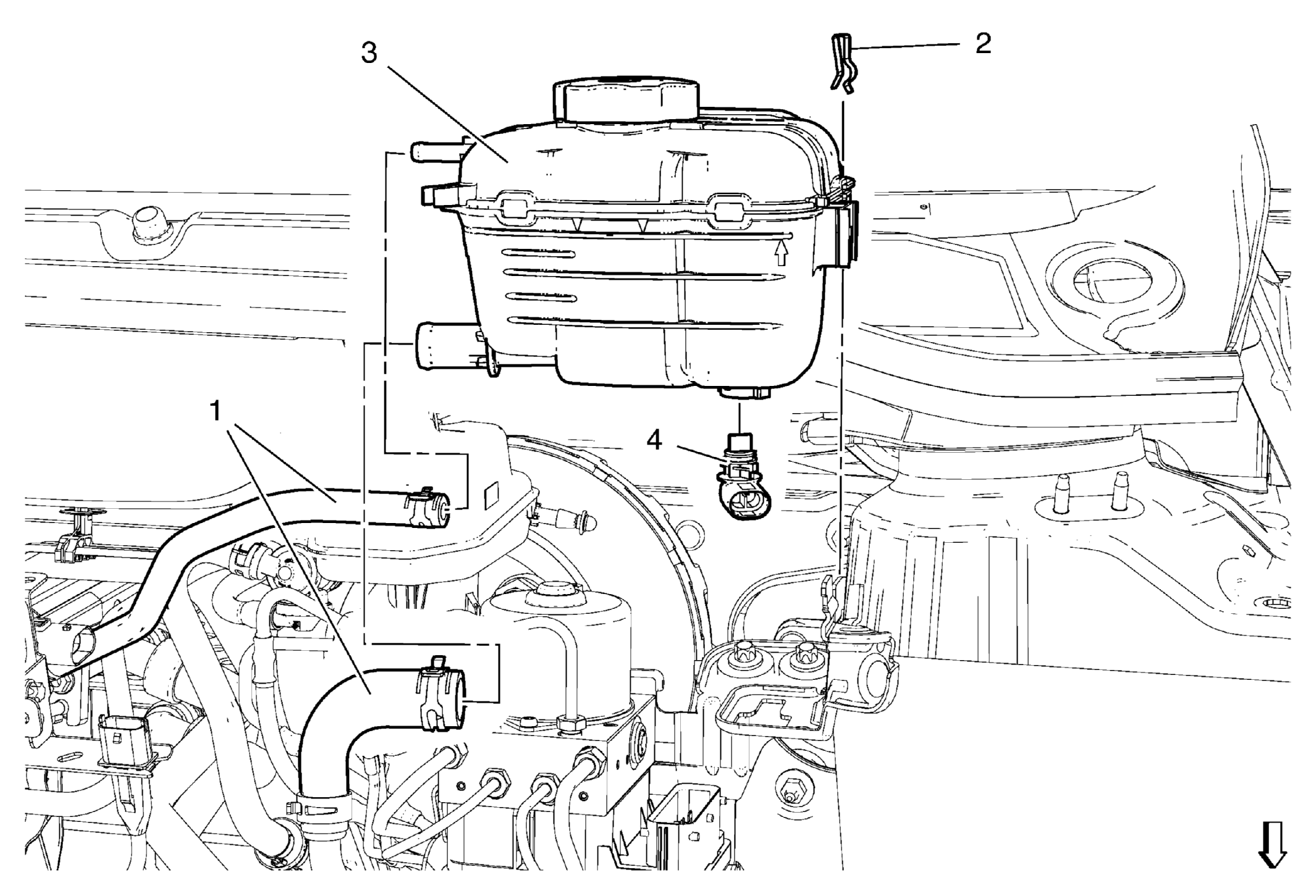

Fig 1: Engine Coolant Level Indicator Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Drain the cooling system. Refer to Cooling System Draining and Filling (GE-47716 Fill) , Cooling System Draining and Filling (Static Fill) . Remove the fuse block. Refer to Fuse Block Replacement .
1	Coolant Hose (Qty: 2)
2	Radiator Surge Tank Clip
3	Radiator Surge Tank
4	Engine Coolant Level Indicator Module Procedure Disconnect the electrical connector.
