Identifying Overhead Console Components

Identifying Overhead Console Components

Component Name Callout
S72 Sunroof Switch 1
S88 Sunroof Ventilation Switch 2
E37B Dome / Reading Lamps - 2nd Row 3
K61 Sunroof Control Module 4

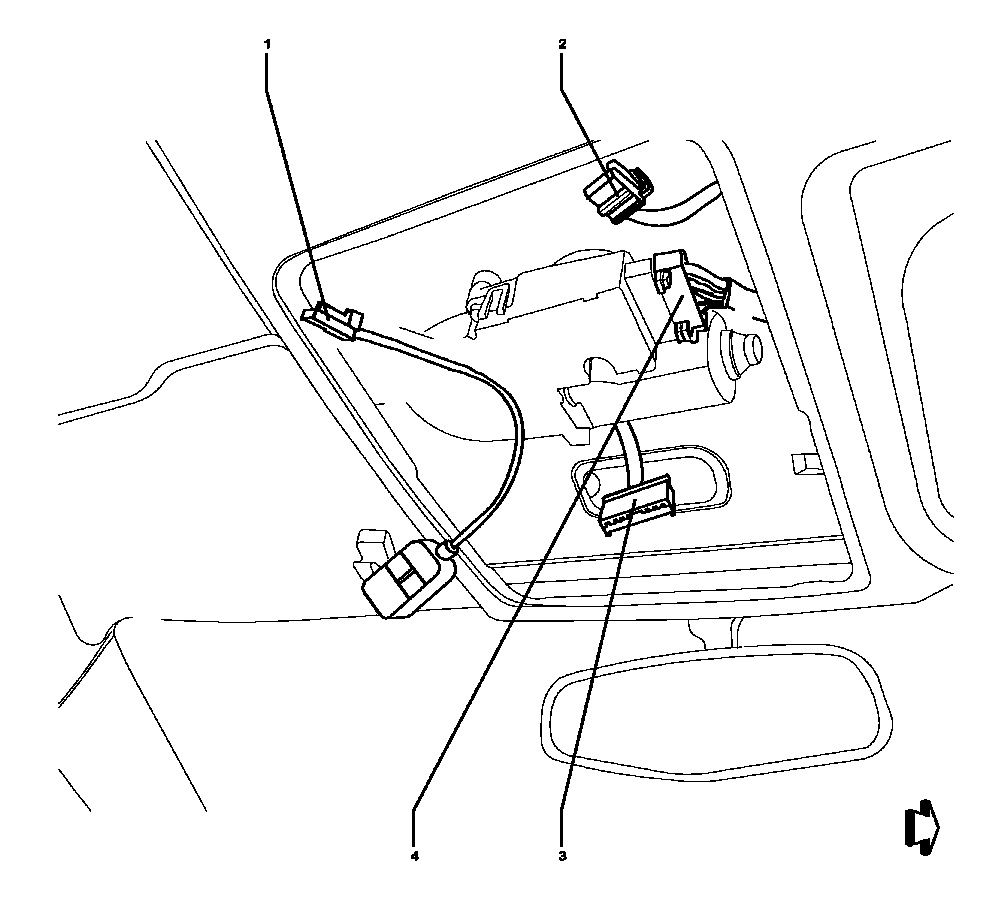

Fig 1: Identifying Overhead Console Components
GM2224427Courtesy of GENERAL MOTORS CORP.
