Identifying Front of the Engine Compartment Components

Identifying Front of the Engine Compartment Components

Component Name Callout
G105 Engine Compartment - Front Left 1
G10 Cooling Fan Motor 2
B34B Engine Coolant Temperature Sensor 2 3

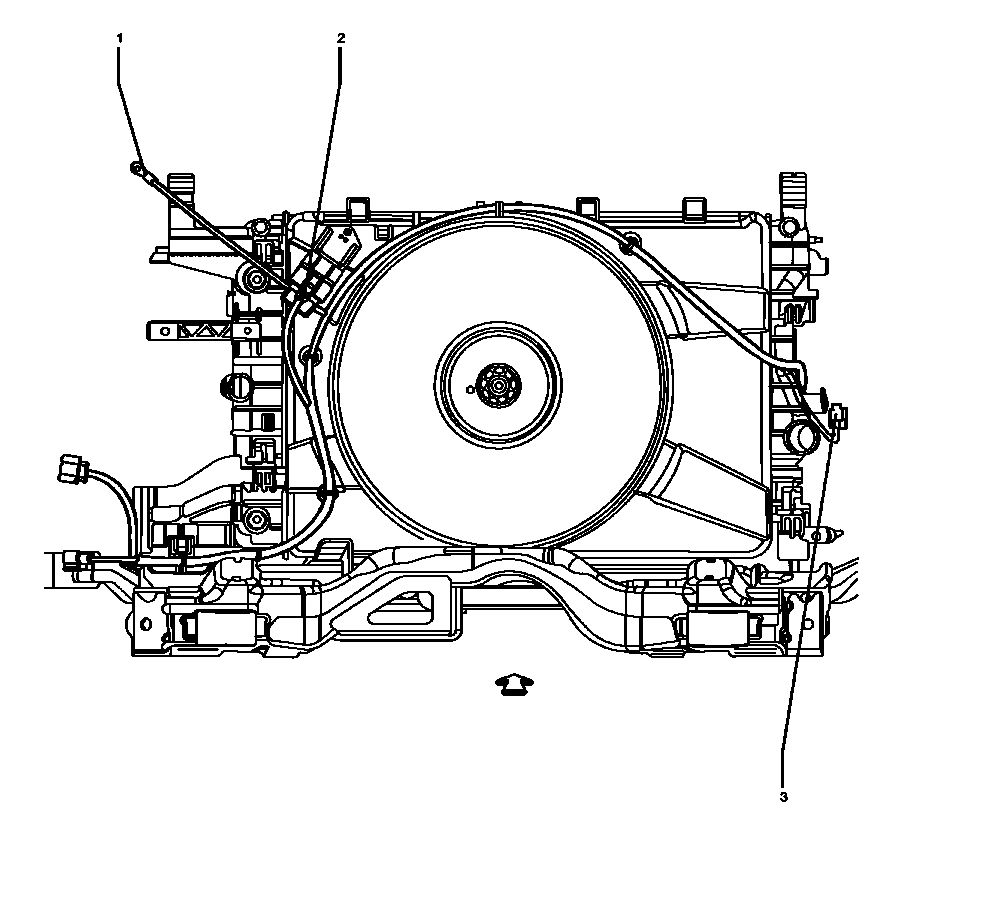

Fig 1: Identifying Front of the Engine Compartment Components
GM2205868Courtesy of GENERAL MOTORS CORP.
