Identifying Front Passenger Door Components

Identifying Front Passenger Door Components

Component Name Callout
A9B Outside Rearview Mirror - Passenger 1
S79P Window Switch - Passenger 2
M74P Window Motor - Passenger 3
P19U Speaker - Right Front 4

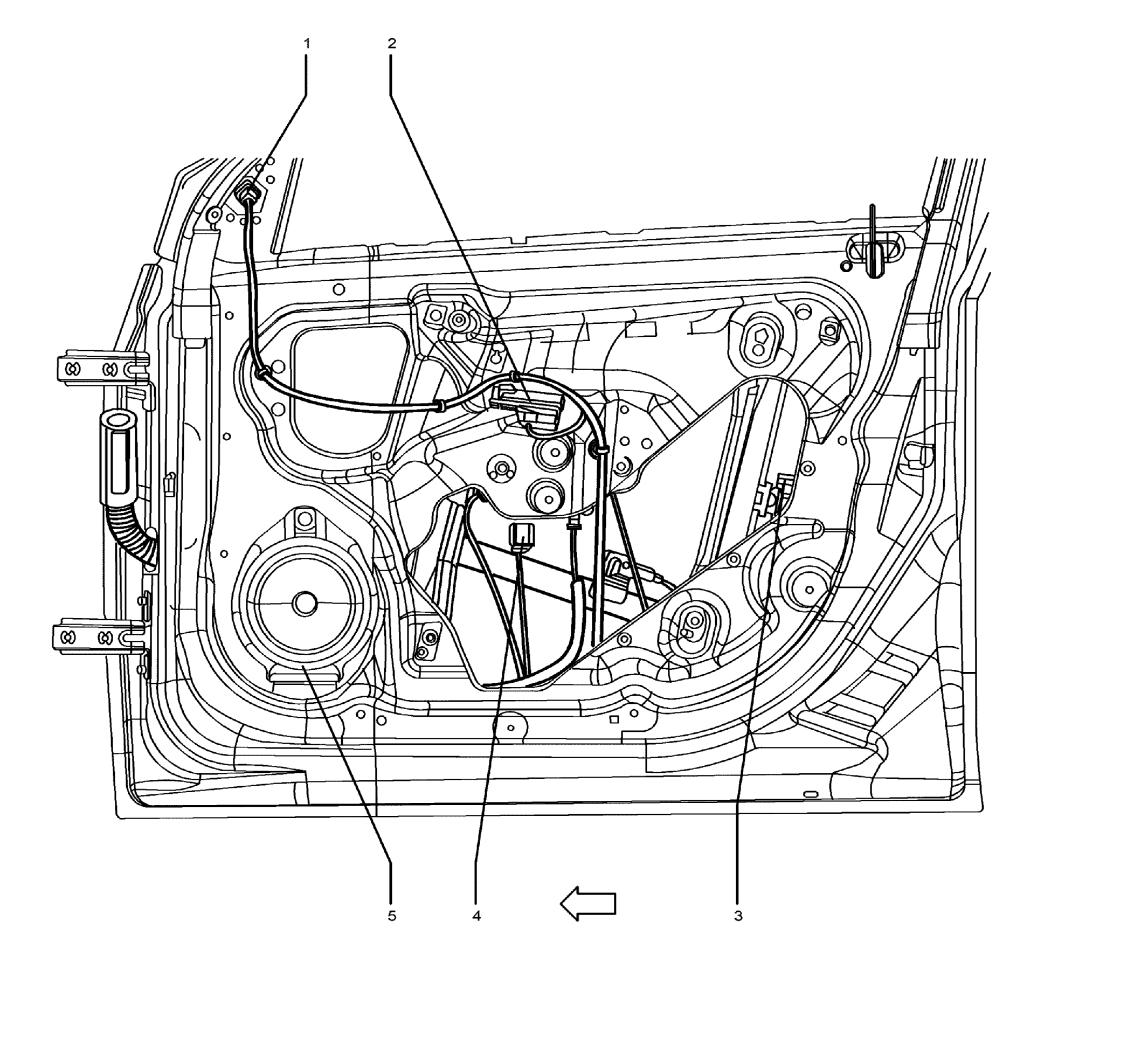

Fig 1: Identifying Front Passenger Door Components
GM2205856Courtesy of GENERAL MOTORS CORP.
