Antilock Brake System Wiring Schematics

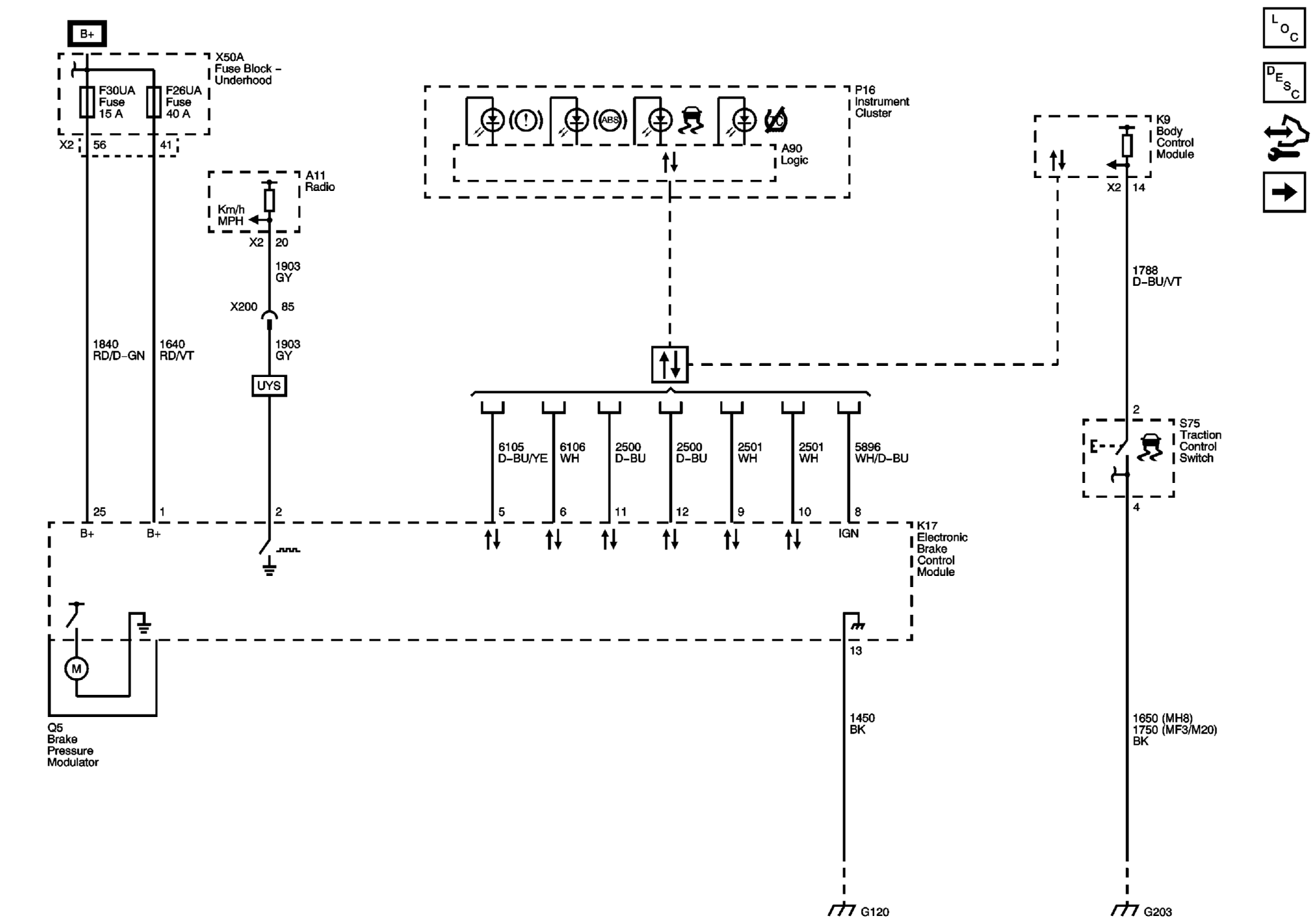

Fig 1: ABS Power, Ground, Serial Data, and Traction Control Switch Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

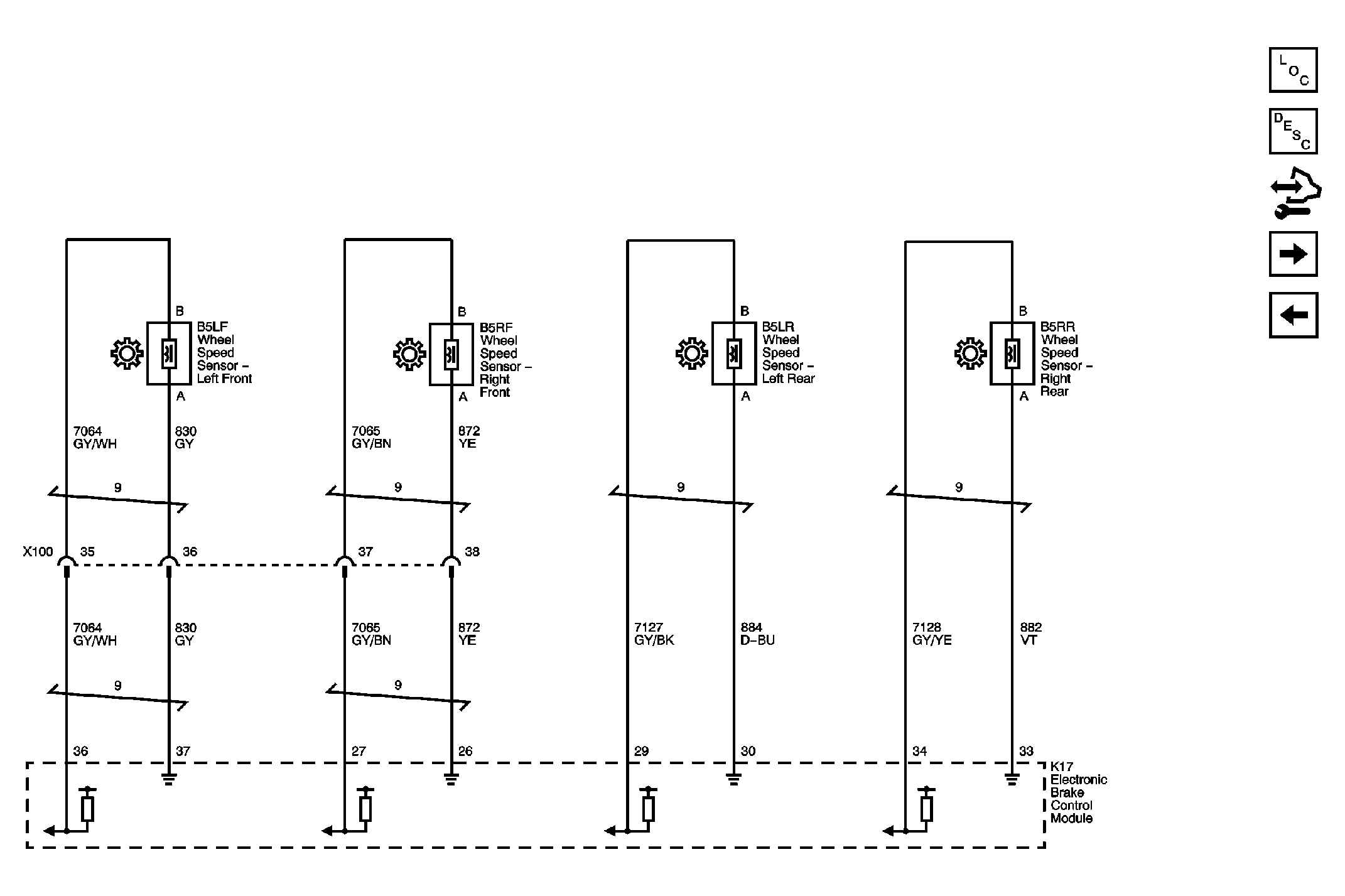

Fig 2: Wheel Speed Sensor Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

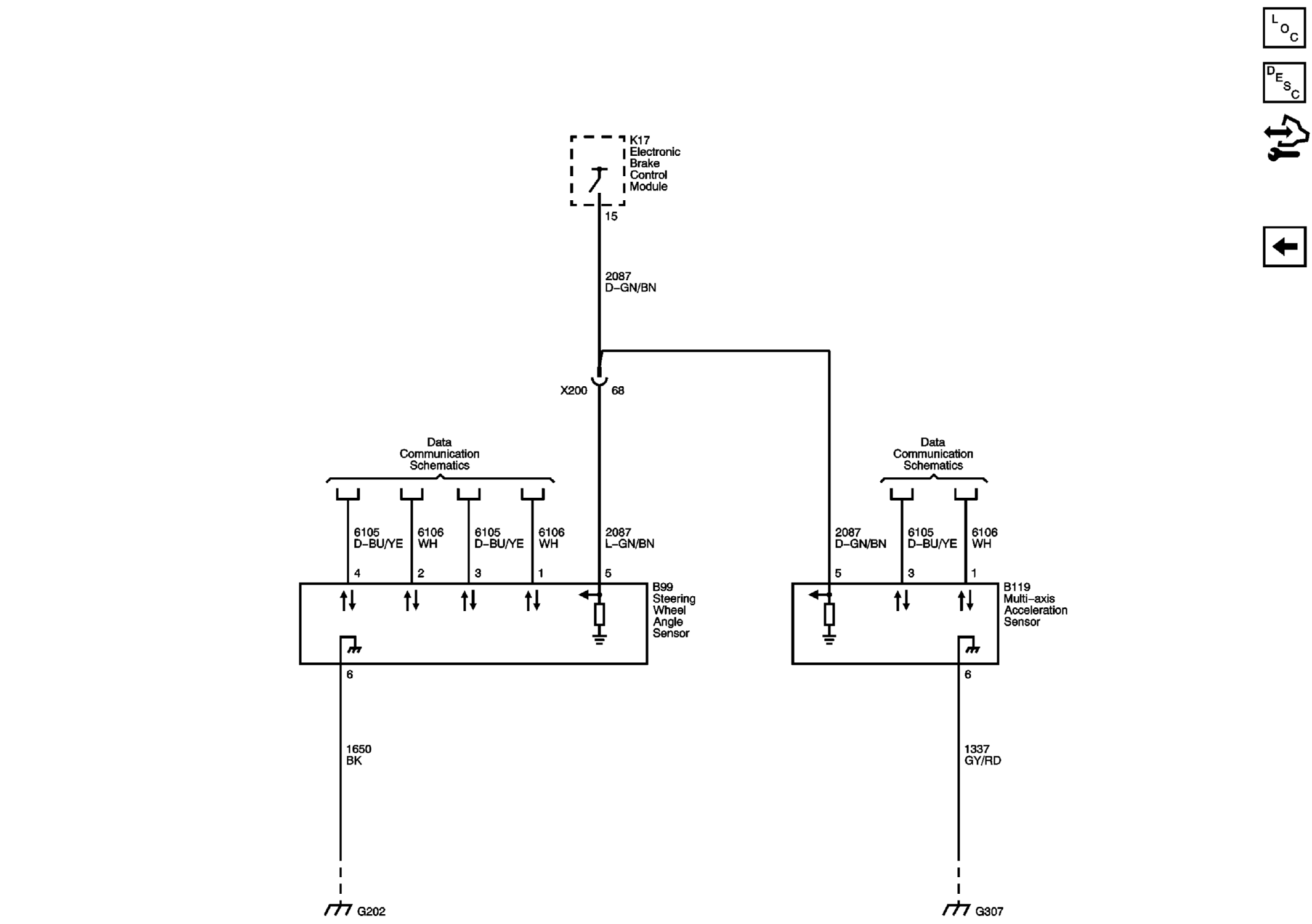

Fig 3: Stability Control System Wiring Schematic

Courtesy of GENERAL MOTORS CORP.
