Ignition and Start Switch Replacement

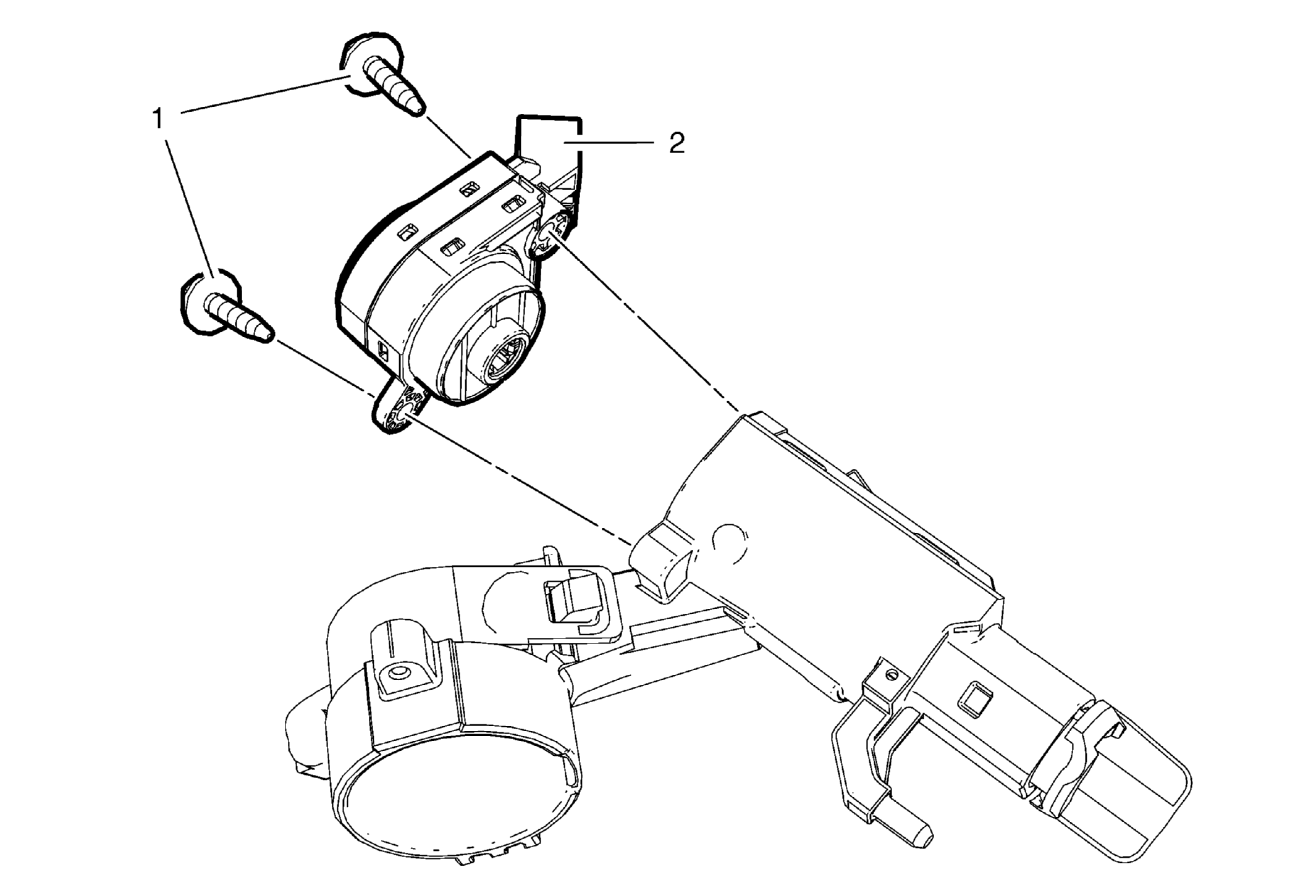

Fig 1: Identifying Ignition Switch And Bolts
GM2372981Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedures:
Remove ignition and start switch housing. Refer to Ignition and Start Switch Housing Replacement .
1 Ignition and Start Switch Bolt (Qty: 2)
CAUTION: Refer to Fastener Caution .
2 Ignition and Start Switch
