Starting System and Charging System Wiring Schematics

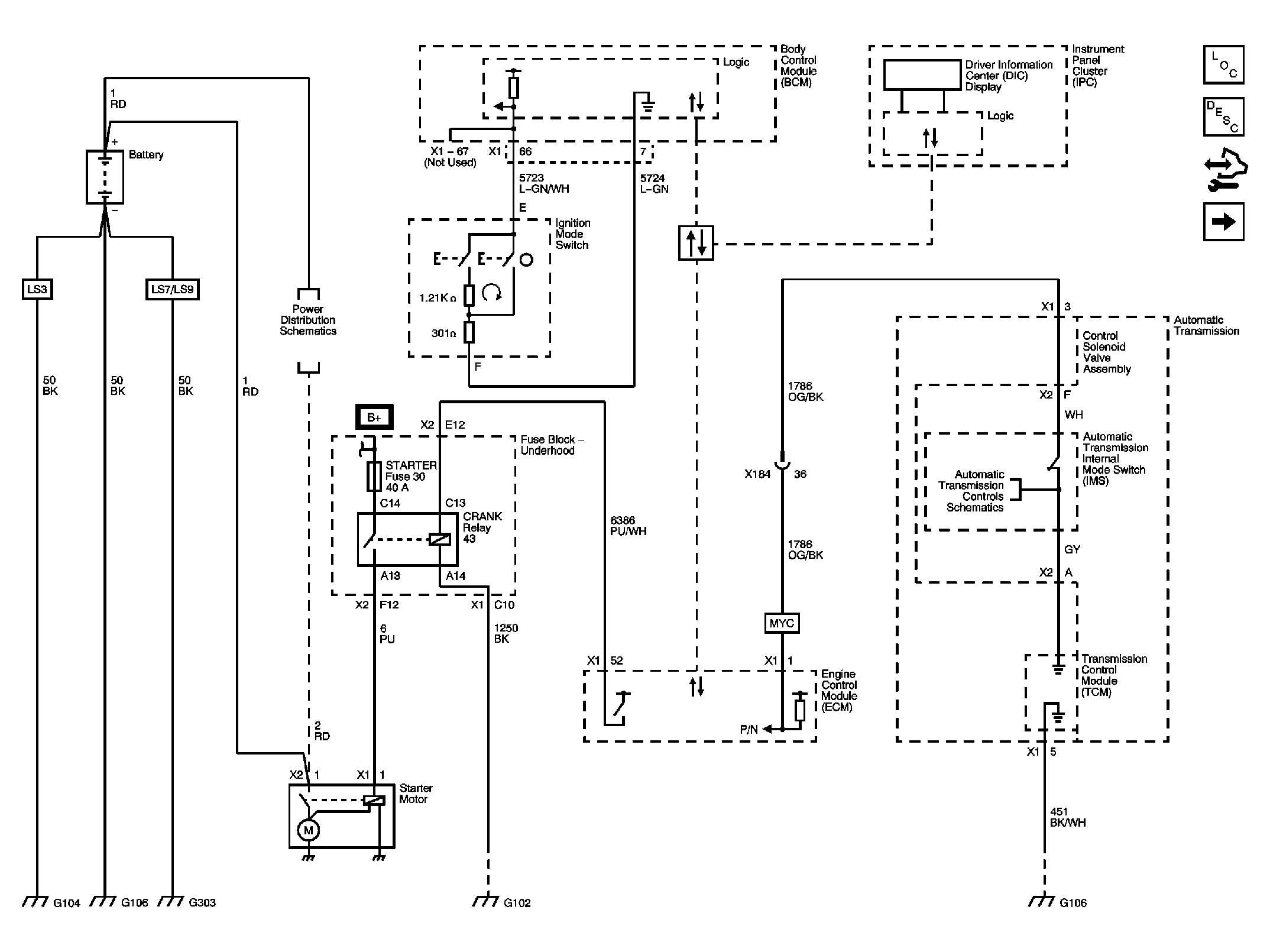

Fig 1: Starting System Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

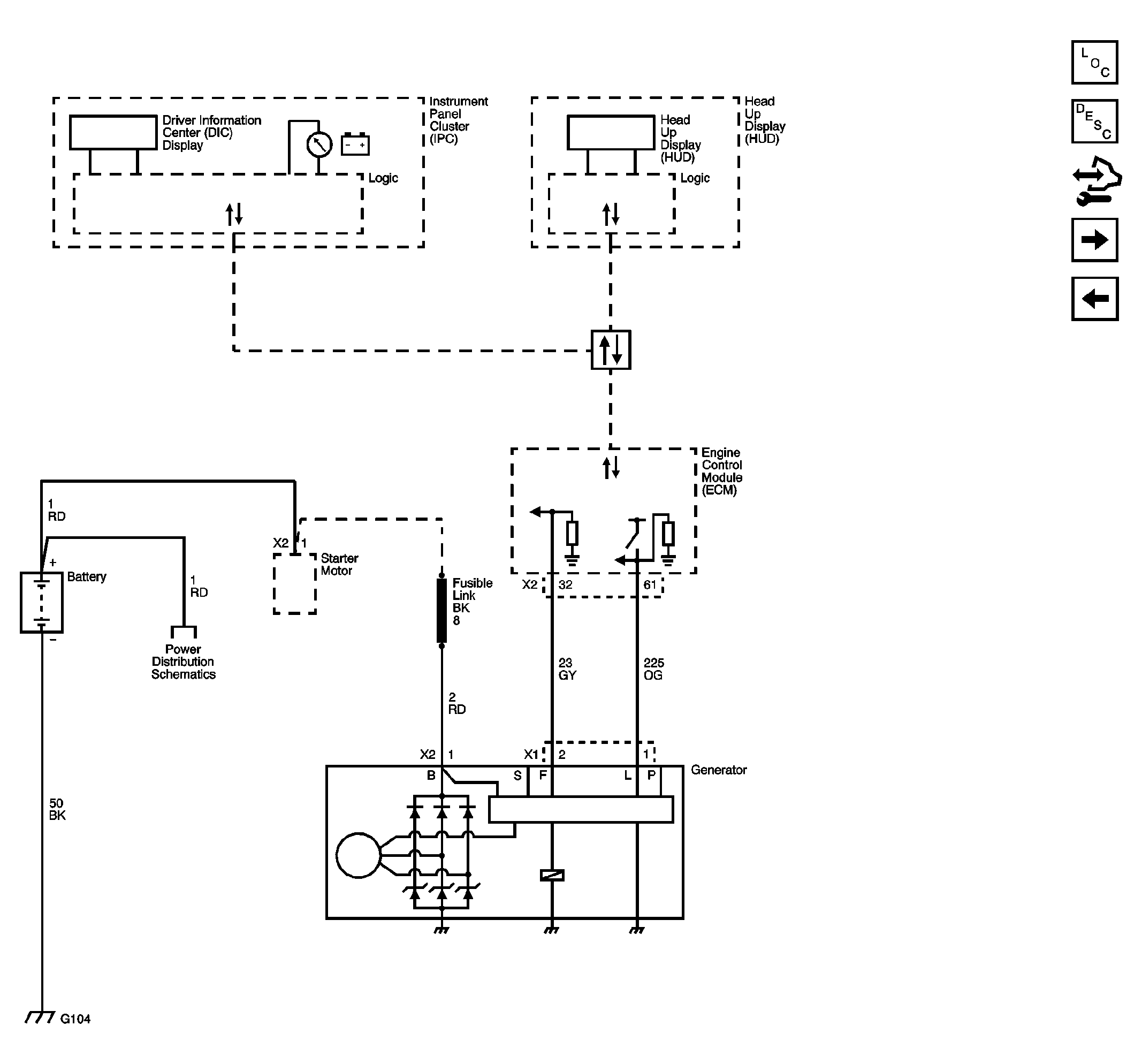

Fig 2: Charging System (LS3 or LS7) Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

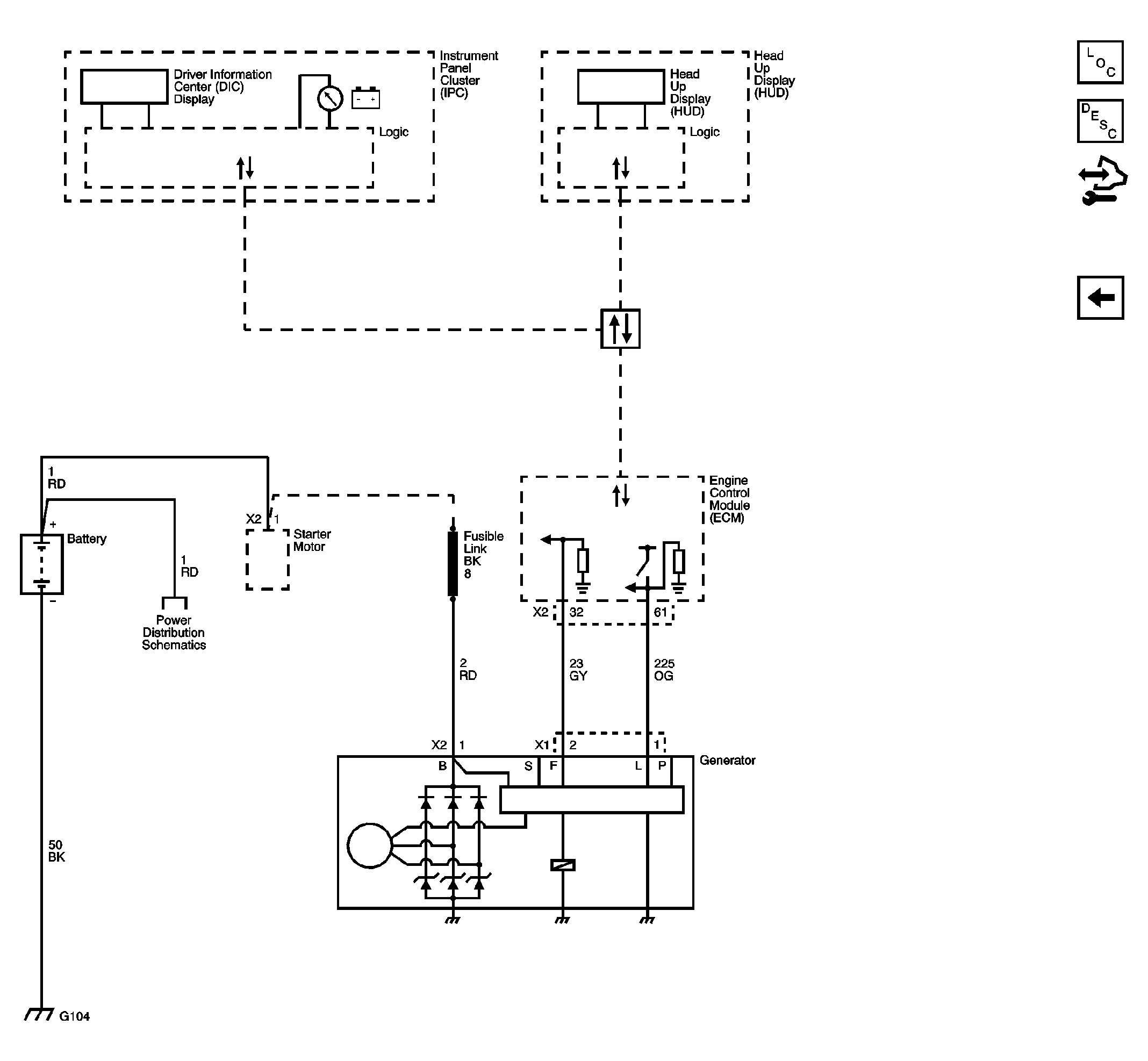

Fig 3: Charging System (LS9) Wiring Schematic

Courtesy of GENERAL MOTORS CORP.
