Installation Procedure

Fig 1: View Of Rack & Pinion Components

Courtesy of GENERAL MOTORS CORP.

Install the new boot clamp (2) onto the rack and pinion boot (3).

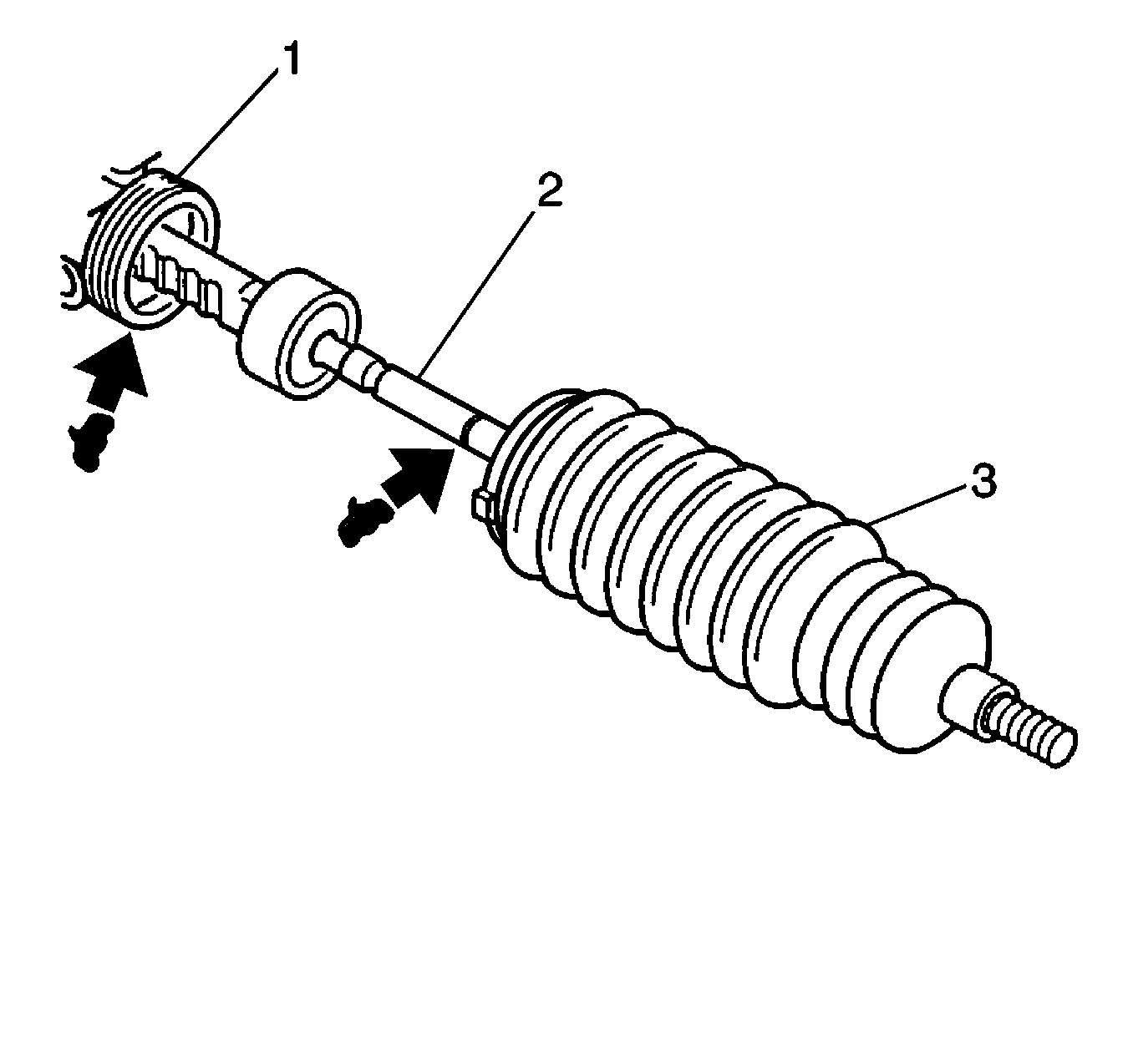

Fig 2: Identifying Inner Rod & Gear Assembly Lubrication Points

Courtesy of GENERAL MOTORS CORP.

Apply grease to the inner rod (2) and apply grease to the gear assembly (1) prior to the boot (3) installation.

Fig 3: View Of Rack & Pinion Components

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: The rack and pinion boot must not be twisted or out of shape in any way. An improperly shaped boot must be shaped by hand before installing the boot clamp.

Install the boot (3) onto the inner tie rod assembly.
Install the boot (3) onto the gear assembly (1) until the boot is seated in the gear assembly groove.

Fig 4: Crimping Steering Gear Boot Clamp

Courtesy of GENERAL MOTORS CORP.

Install the boot clamp on the boot (1) using tool J 22610 (2).
Crimp the boot clamp (2).
Install the tie rod end clamp on the boot using pliers.
Install the jam nut to the inner tie rod assembly.
Install the outer tie rod. Refer to Steering Linkage Outer Tie Rod Replacement .
