Installation Procedure

  1. Maneuver the power steering cooler hose as needed and position it to the vehicle.
    2. Fig 1: Power Steering Cooler & Hose Bolts
    GM2139382Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  2. Install the power steering cooler (2) and the power steering cooler hose bolts (1) and tighten to 11 N.m (97 lb in).

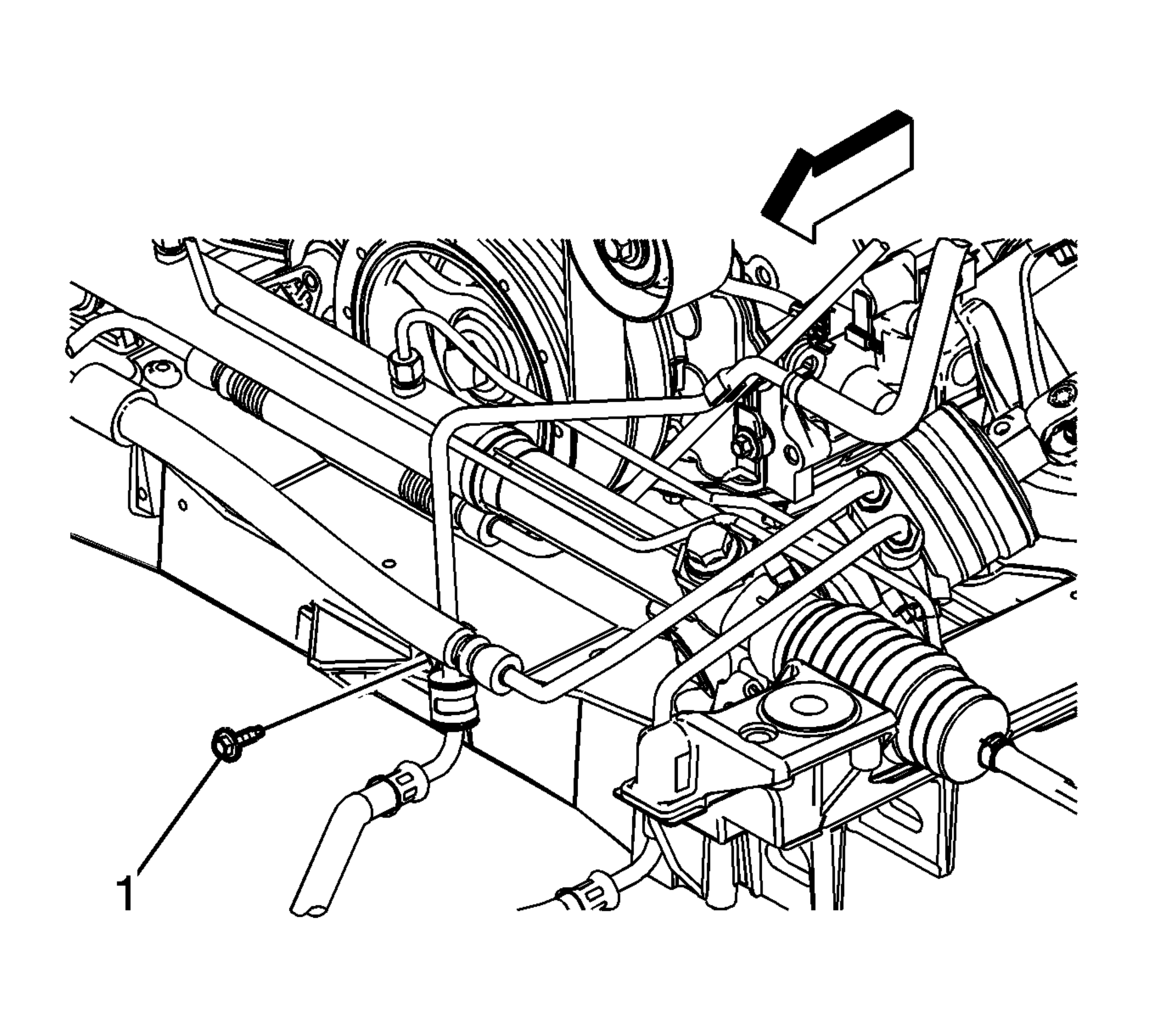

    3. Fig 2: View Of Power Steering Cooler Hose Bracket Bolt
    GM2139700Courtesy of GENERAL MOTORS CORP.
  3. Install the power steering cooler hose bracket bolt (1) and tighten to 10 N.m (89 lb in).

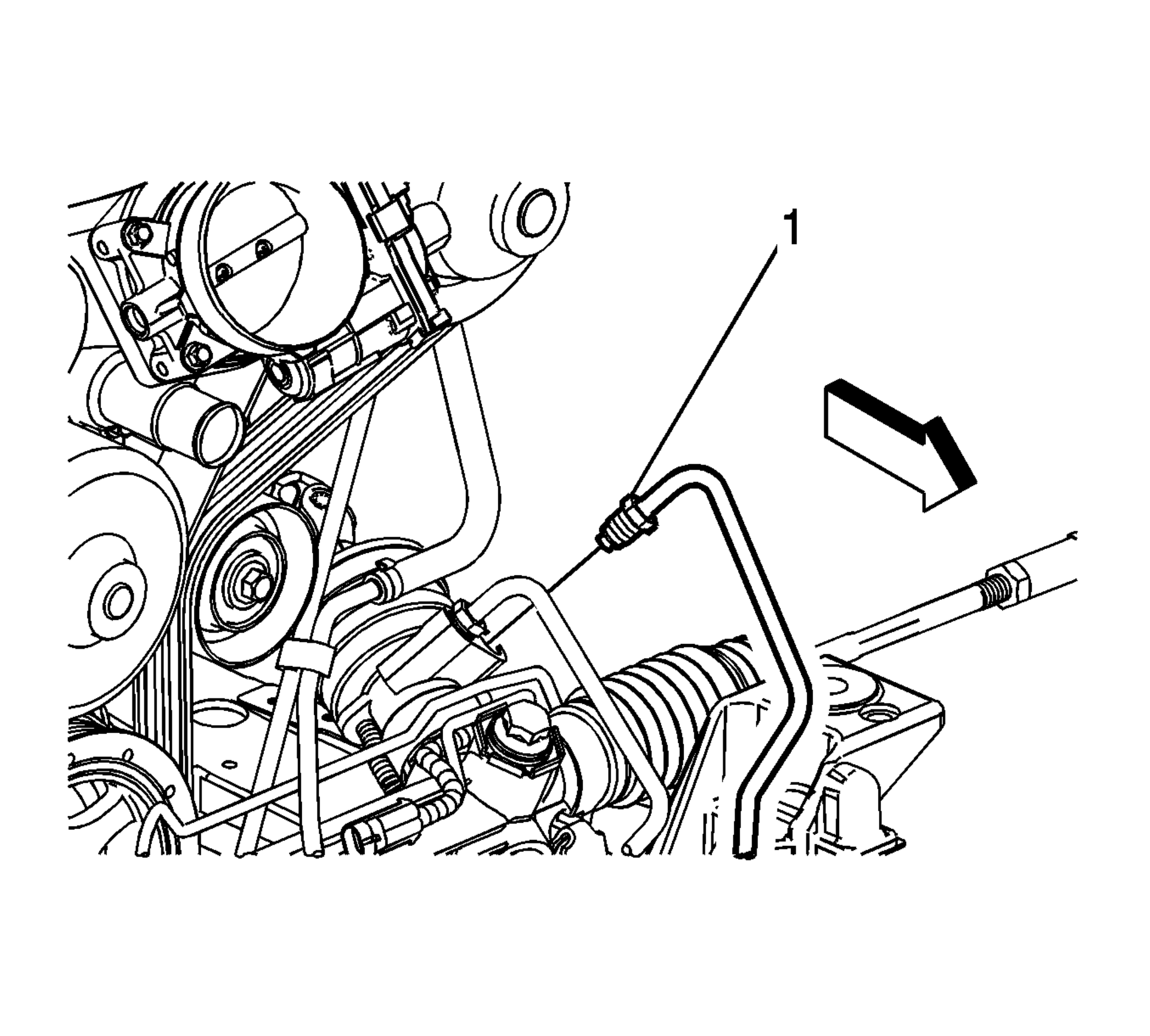

    4. Fig 3: View Of Power Steering Cooler Hose
    GM2139386Courtesy of GENERAL MOTORS CORP.
  4. Connect the power steering cooler hose (1) to the steering gear and tighten to 34 N.m (25 lb ft).
    5. Fig 4: View Of Power Steering Cooler Hose Clamps
    GM2139378Courtesy of GENERAL MOTORS CORP.
  5. Position the new power steering cooler hose clamps (2) and connect the rubber hoses (3) to the power steering cooler (1).
  6. Tighten the new power steering cooler hose clamps (2).

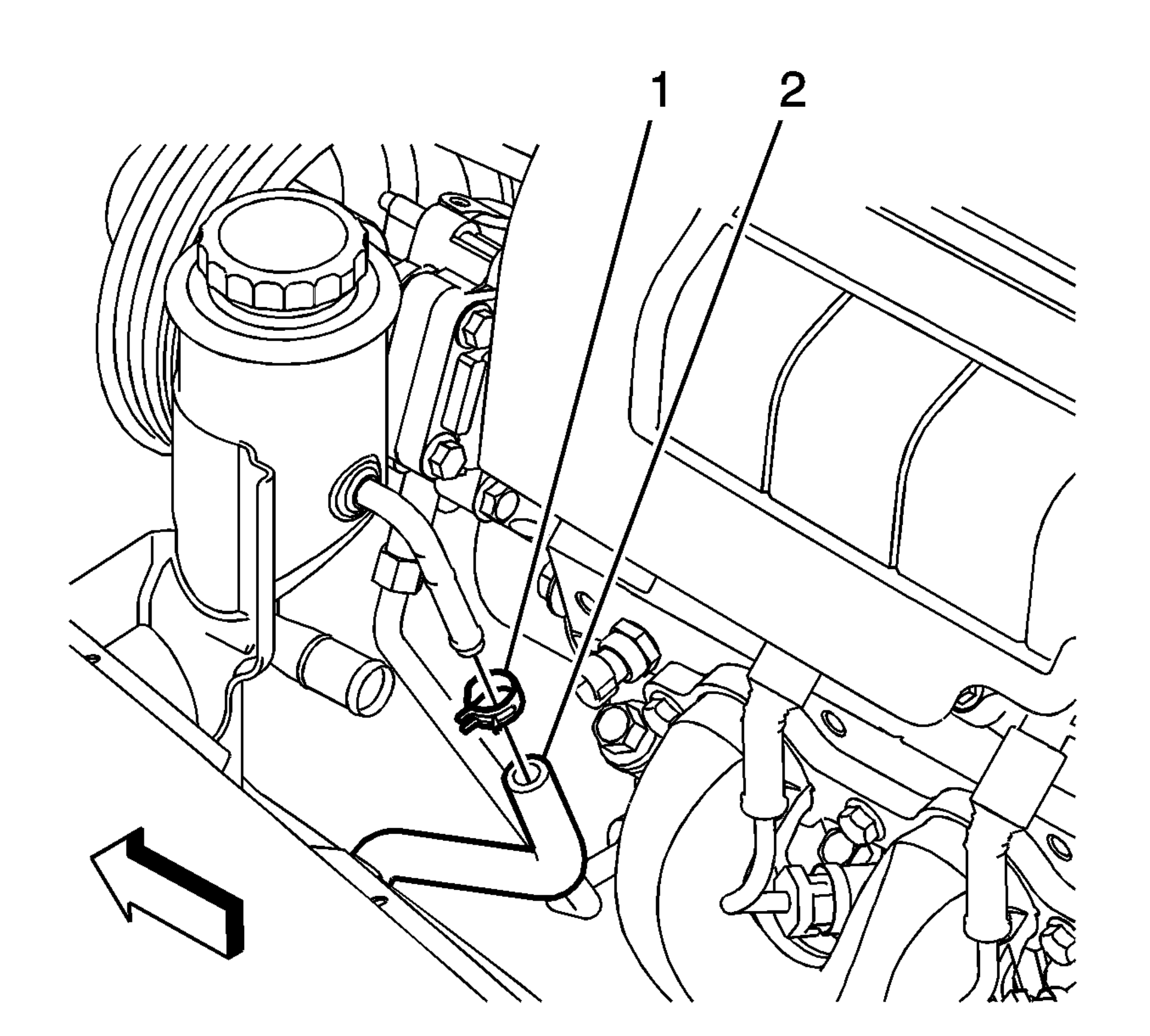

    7. Fig 5: Identifying Power Steering Fluid Cooler Hose & Clamp
    GM2132666Courtesy of GENERAL MOTORS CORP.
  7. Compress the power steering cooler hose clamp (1).
  8. Connect the power steering cooler hose (2) to the remote power steering fluid reservoir and release the clamp.
  9. Clean any excess power steering fluid from the vehicle and remove the drain pans.
  10. Fill and bleed the power steering system. Refer to Power Steering System Bleeding .
