Defogger Wiring Schematics

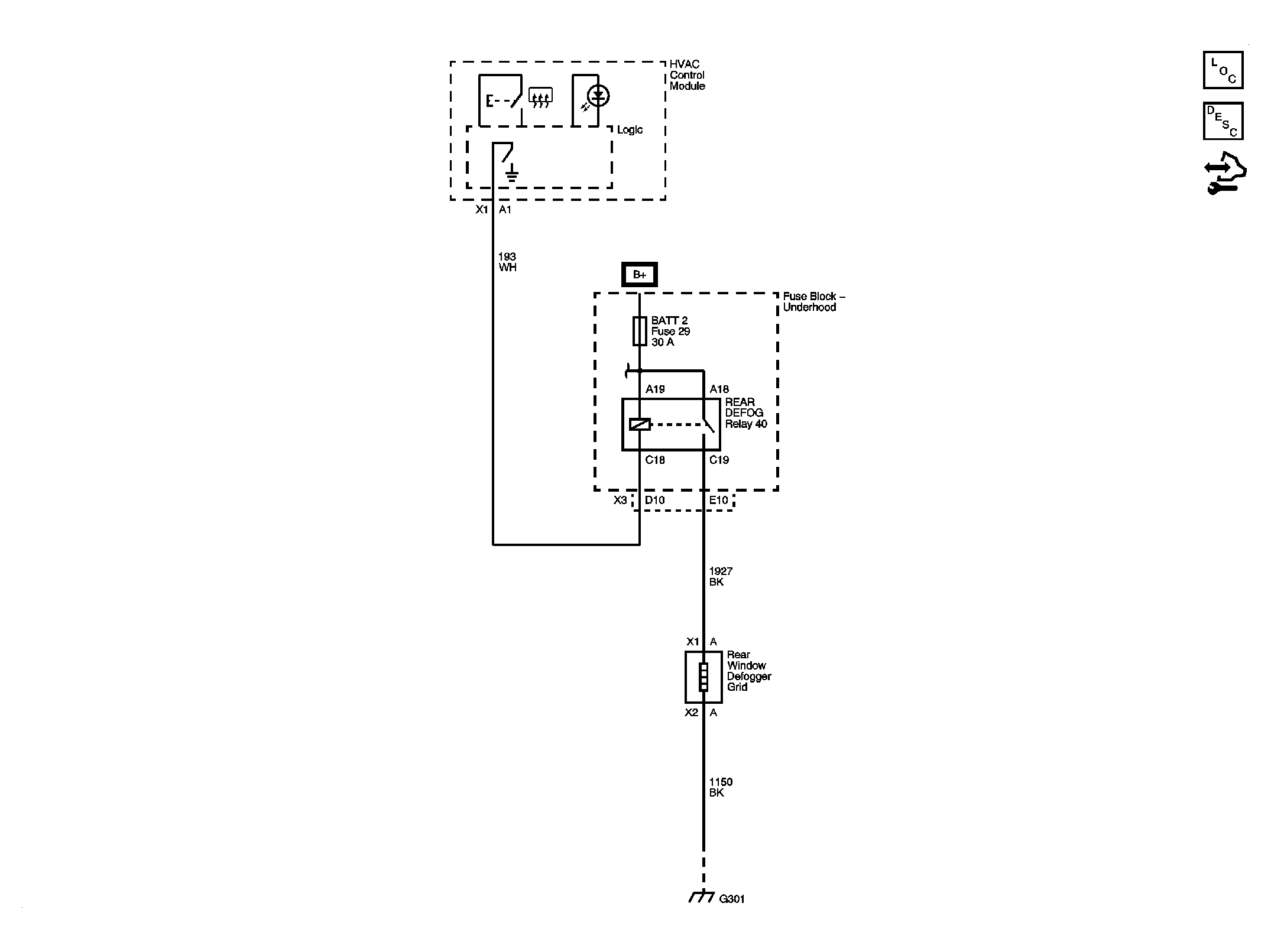

Fig 1: Rear Window Defogger Wiring Schematic

GM2400365

Courtesy of GENERAL MOTORS CORP.
