Lower Right of Instrument Panel Components

Lower Right of Instrument Panel Components

Component Name Callout
JX208 1
Body Control Module (BCM) X2 2
Body Control Module (BCM) X3 3
Body Control Module (BCM) X4 4
G202 5
Relay Block - I/P 6
G302 7

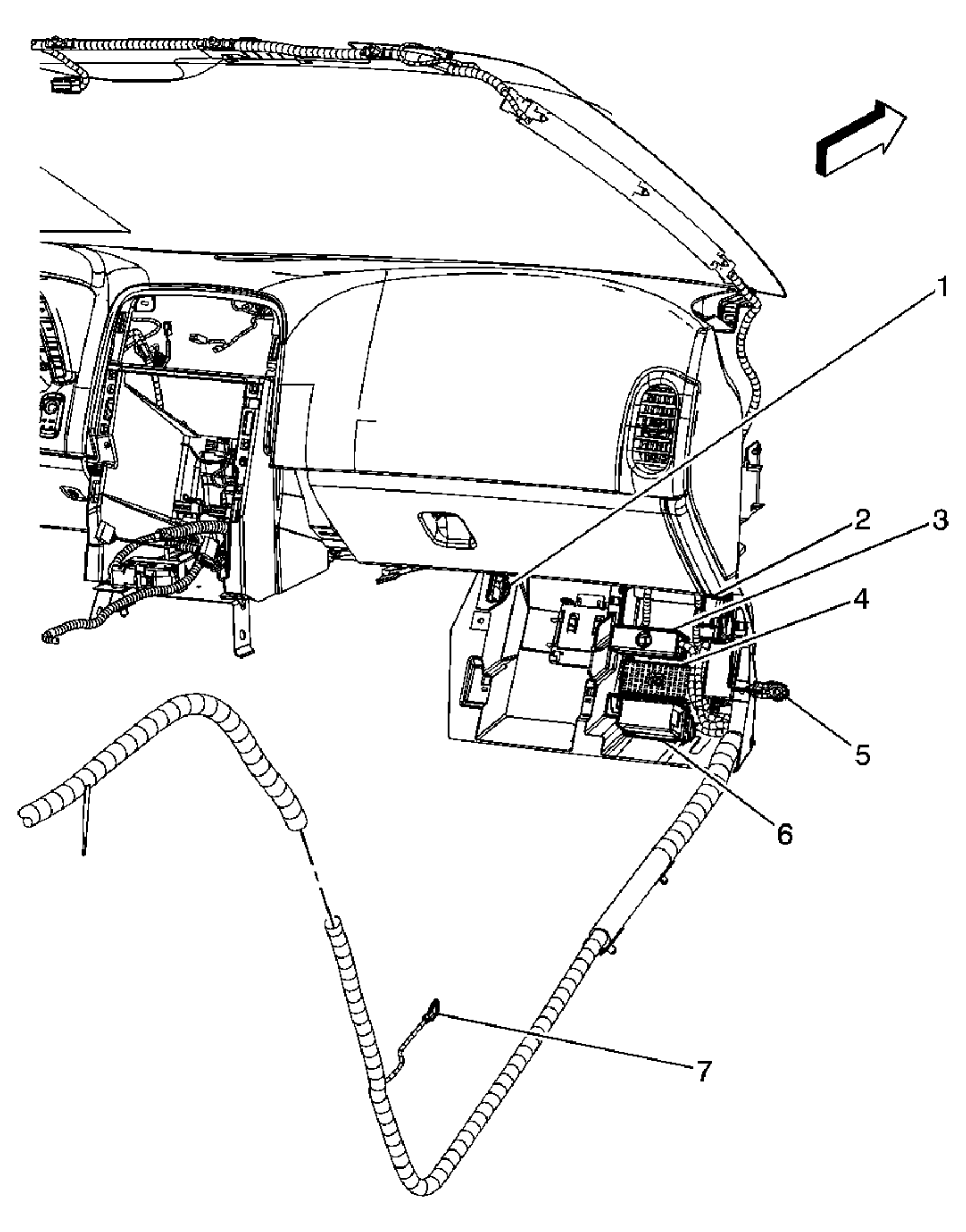

Fig 1: Lower Right of Instrument Panel Components
GM1491962Courtesy of GENERAL MOTORS CORP.
