Moveable Window Wiring Schematics

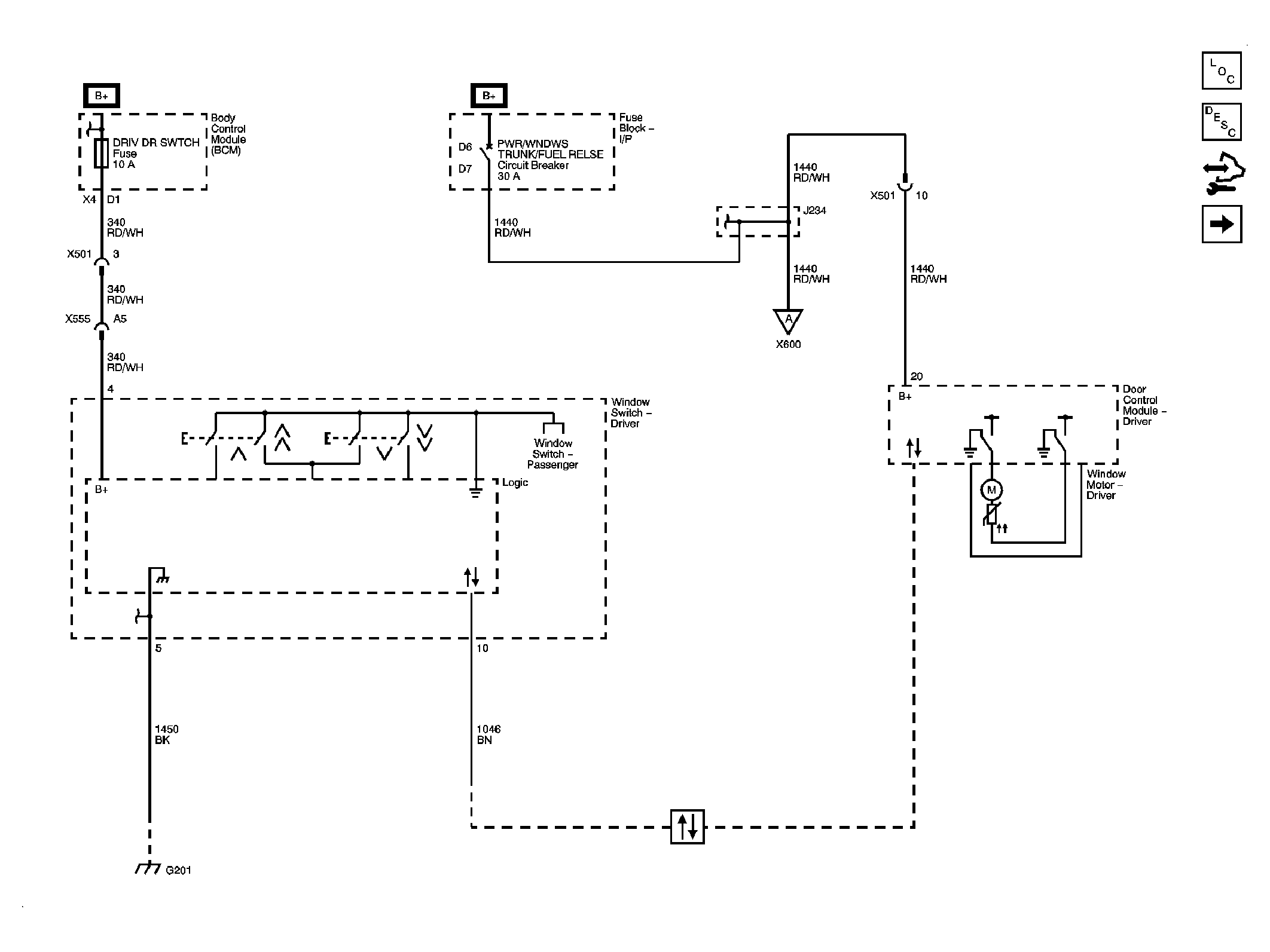

Fig 1: Driver Wiring Schematic

GM2400351

Courtesy of GENERAL MOTORS CORP.

Fig 2: Passenger Wiring Schematic

GM2400359

Courtesy of GENERAL MOTORS CORP.
