Removal Procedure

  1. Remove Rear Wheel (drivers side) - left. Refer to Tire and Wheel Removal and Installation .
  2. Remove the rear wheel liner. Refer to Rear Wheelhouse Panel Liner Replacement .
  3. Disconnect the electrical connector.

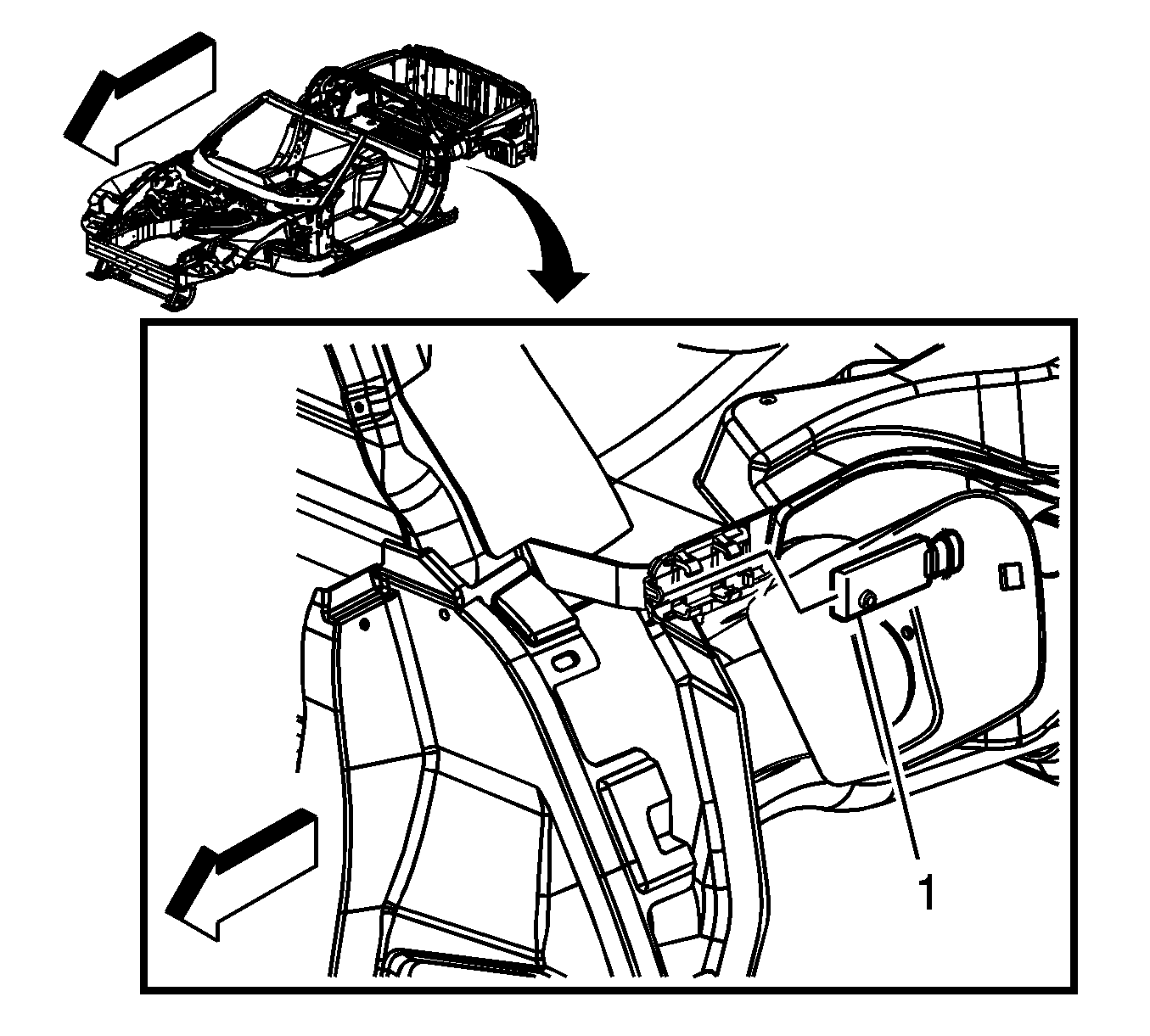

    4. Fig 1: Identifying Left Side Ignition Lock Key Transmitter Antenna Assembly
    GM2047440Courtesy of GENERAL MOTORS CORP.
  4. Disconnect left antenna from snap fit mounting - left.
