Engine Components (LGH)

ENGINE COMPONENTS (LGH)

Component Name Callout
Mass Air Flow (MAF) Sensor/Intake Air Temperature (IAT) Sensor 1
Engine Control Module (ECM) 2
A/C Refrigerant Pressure Sensor 3
Horn Assembly 4
Fuse Block- Underhood 5

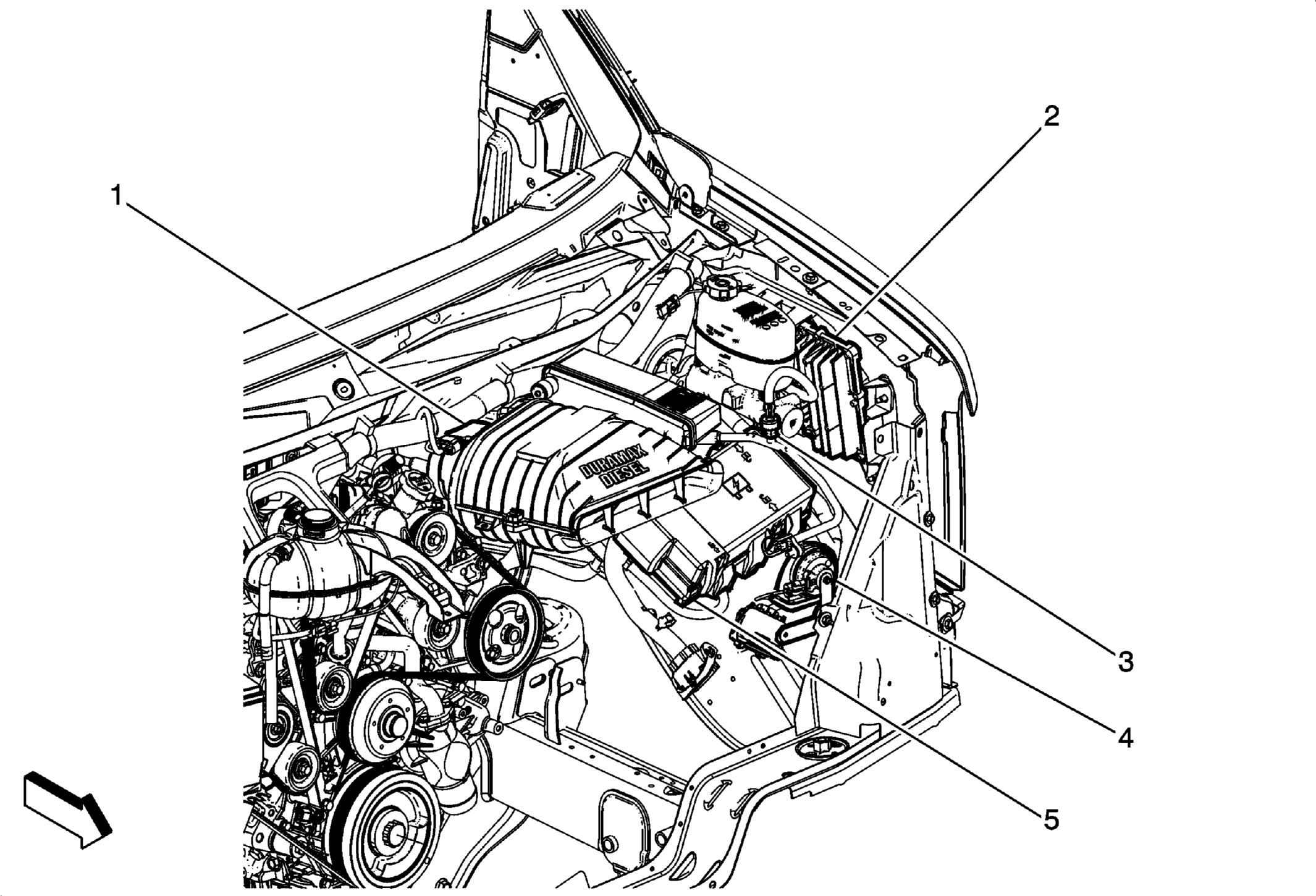

Fig 1: Engine Components (LGH)
GM2406198Courtesy of GENERAL MOTORS CORP.
