Installation Procedure

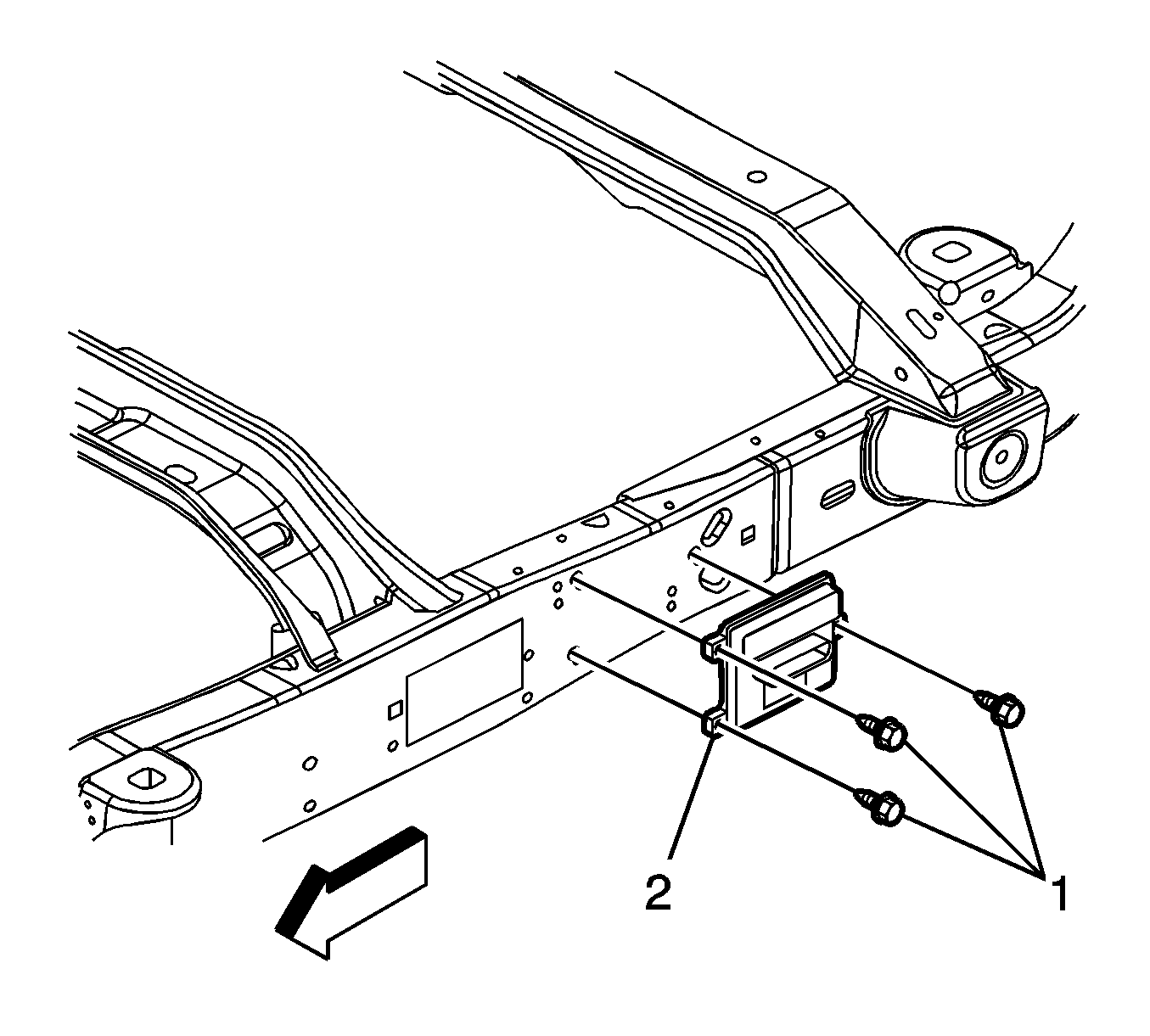

    Fig 1: Fuel Pump Flow Control Module And Bolts
    GM1931045Courtesy of GENERAL MOTORS CORP.
  1. Place the fuel pump flow control module (2) against the frame.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the fuel pump flow control module bolts (1) and tighten to 9 N.m (80 lb in).

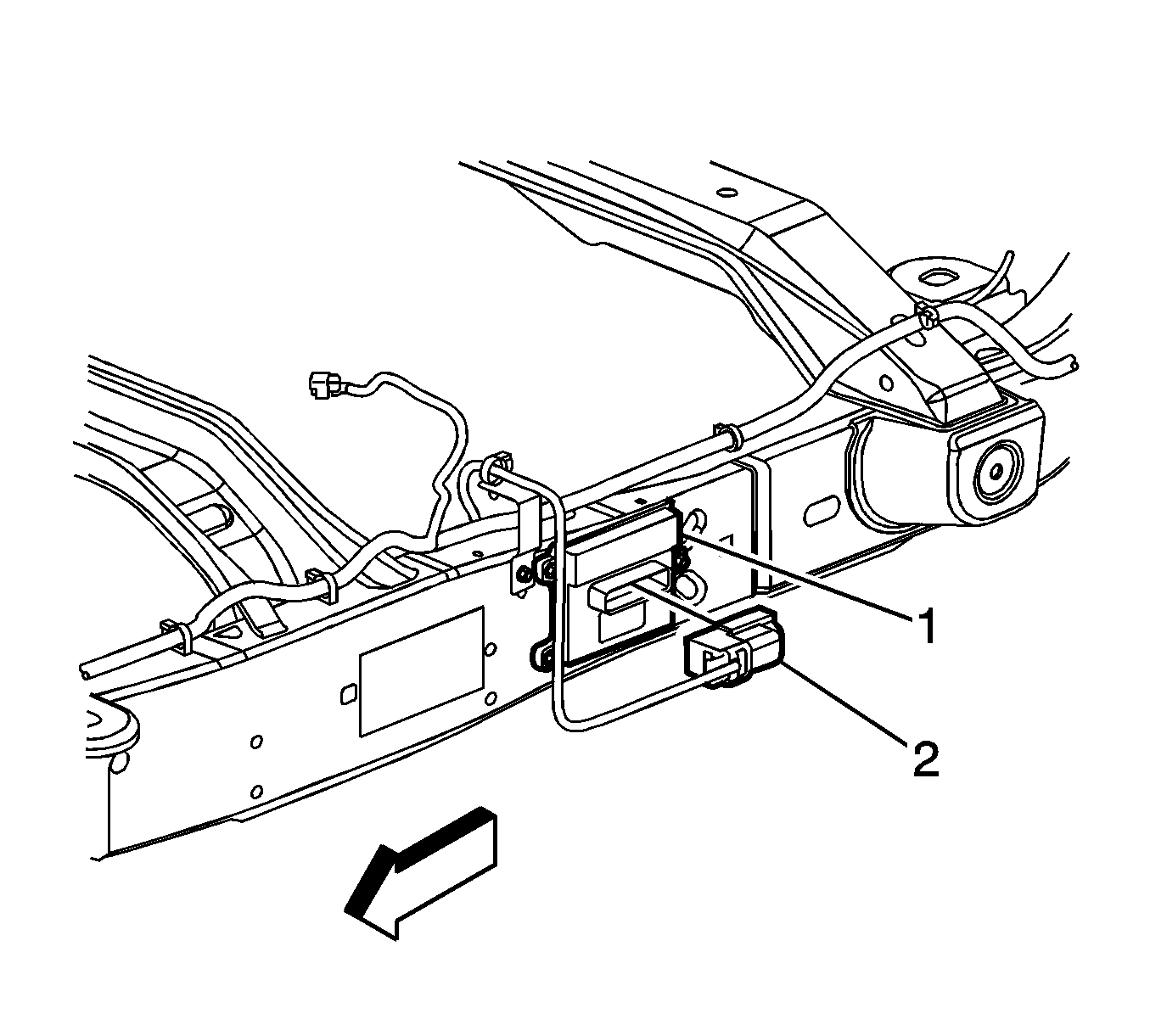

    3. Fig 2: Chassis Wiring Harness Electrical Connector And Fuel Pump Flow Control Module
    GM1931044Courtesy of GENERAL MOTORS CORP.
  3. Connect the chassis wiring harness electrical connector (1) to the fuel pump flow control module (2).
  4. Lower the vehicle.
  5. Program the fuel pump flow control module. Refer to Control Module References .
