Electronic Compass Module Replacement

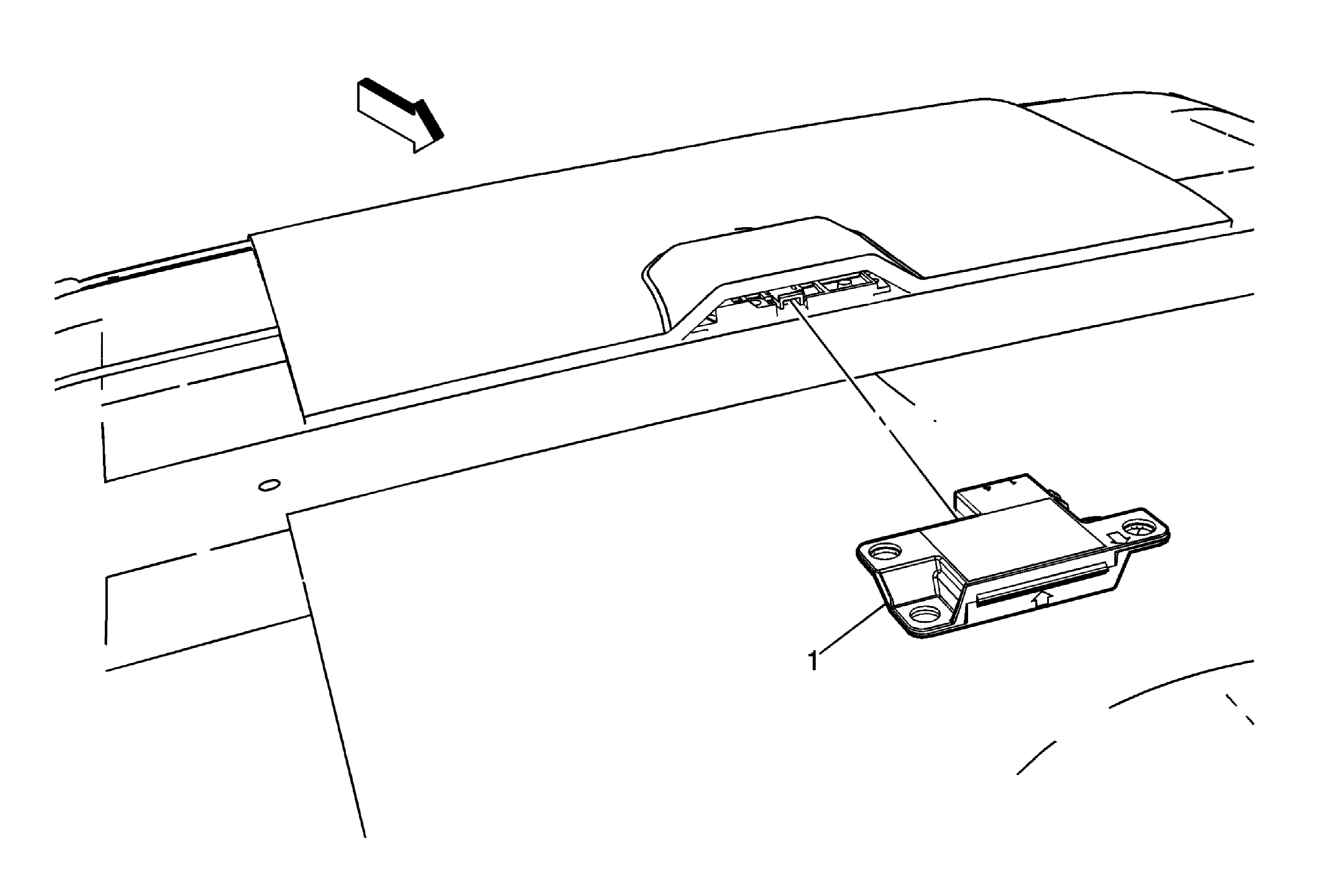

Fig 1: Electronic Compass Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Lower the rear edge of the front headliner to gain access. Refer to Headlining Front Trim Panel Replacement .
1	Electronic Compass Module Procedure Disconnect the electrical connection. Unsnap the module from the headliner assembly. For programming and set up procedures, refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Lower the rear edge of the front headliner to gain access. Refer to Headlining Front Trim Panel Replacement .

Electronic Compass Module

Procedure
