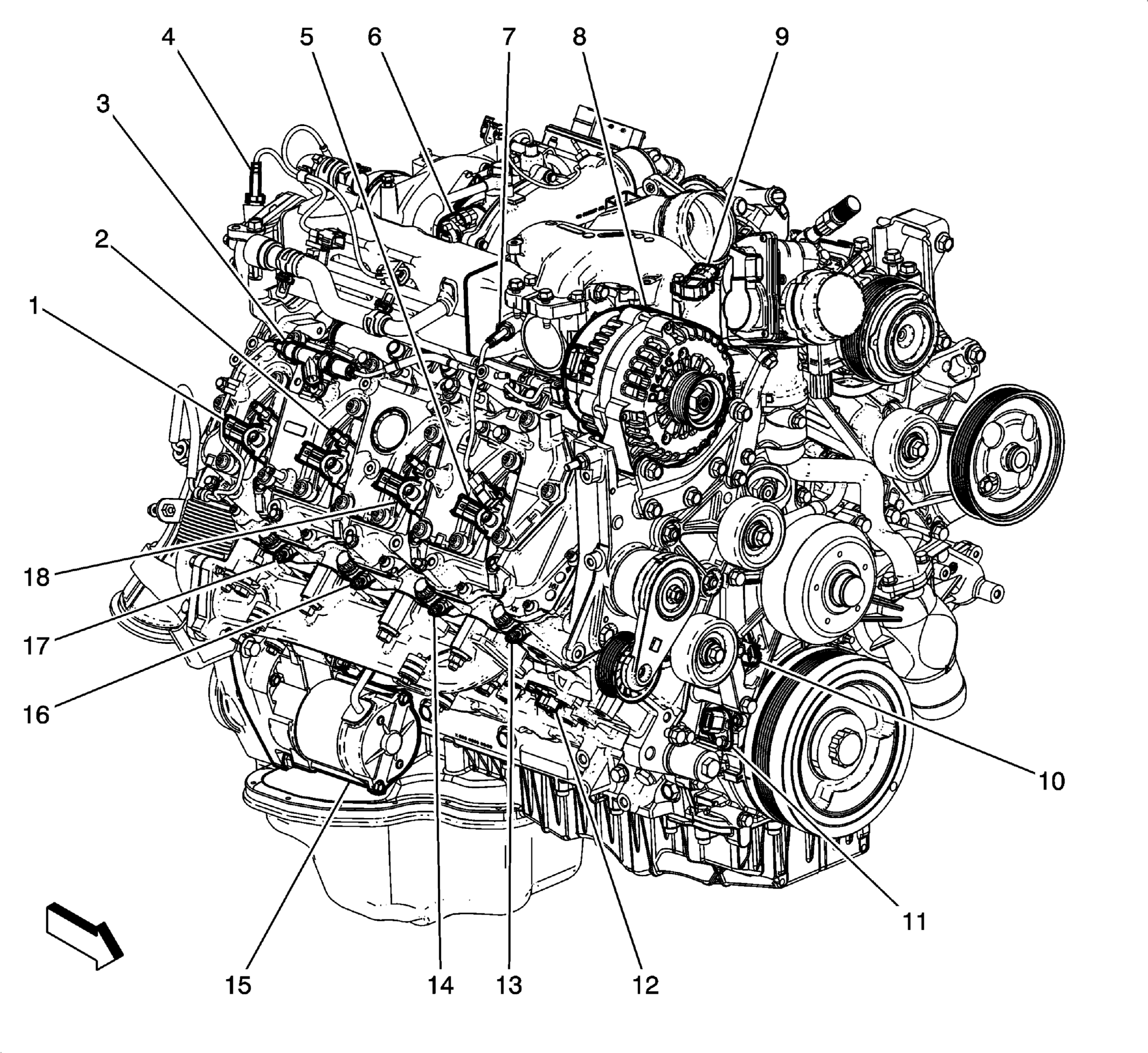

Right Front Of Engine Components (LGH)
RIGHT FRONT OF ENGINE COMPONENTS (LGH)
| Component Name | Callout |
|---|---|
| Fuel Injector 7 | 1 |
| Fuel Injector 5 | 2 |
| Exhaust Aftertreatment Fuel Injector | 3 |
| Exhaust Temperature Sensor 1 | 4 |
| Fuel Injector 1 | 5 |
| Turbocharger Vane Position Control Solenoid Valve | 6 |
| Exhaust Gas Recirculation (EGR) Temperature Sensor 2 | 7 |
| Generator | 8 |
| Manifold Absolute Pressure (MAP) Sensor | 9 |
| Camshaft Position (CMP) Sensor | 10 |
| Crankshaft Position (CKP) Sensor | 11 |
| Engine Block Heater | 12 |
| Glow Plug 1 | 13 |
| Glow Plug 3 | 14 |
| Starter Motor | 15 |
| Glow Plug 5 | 16 |
| Glow Plug 7 | 17 |
| Fuel Injector 3 | 18 |
