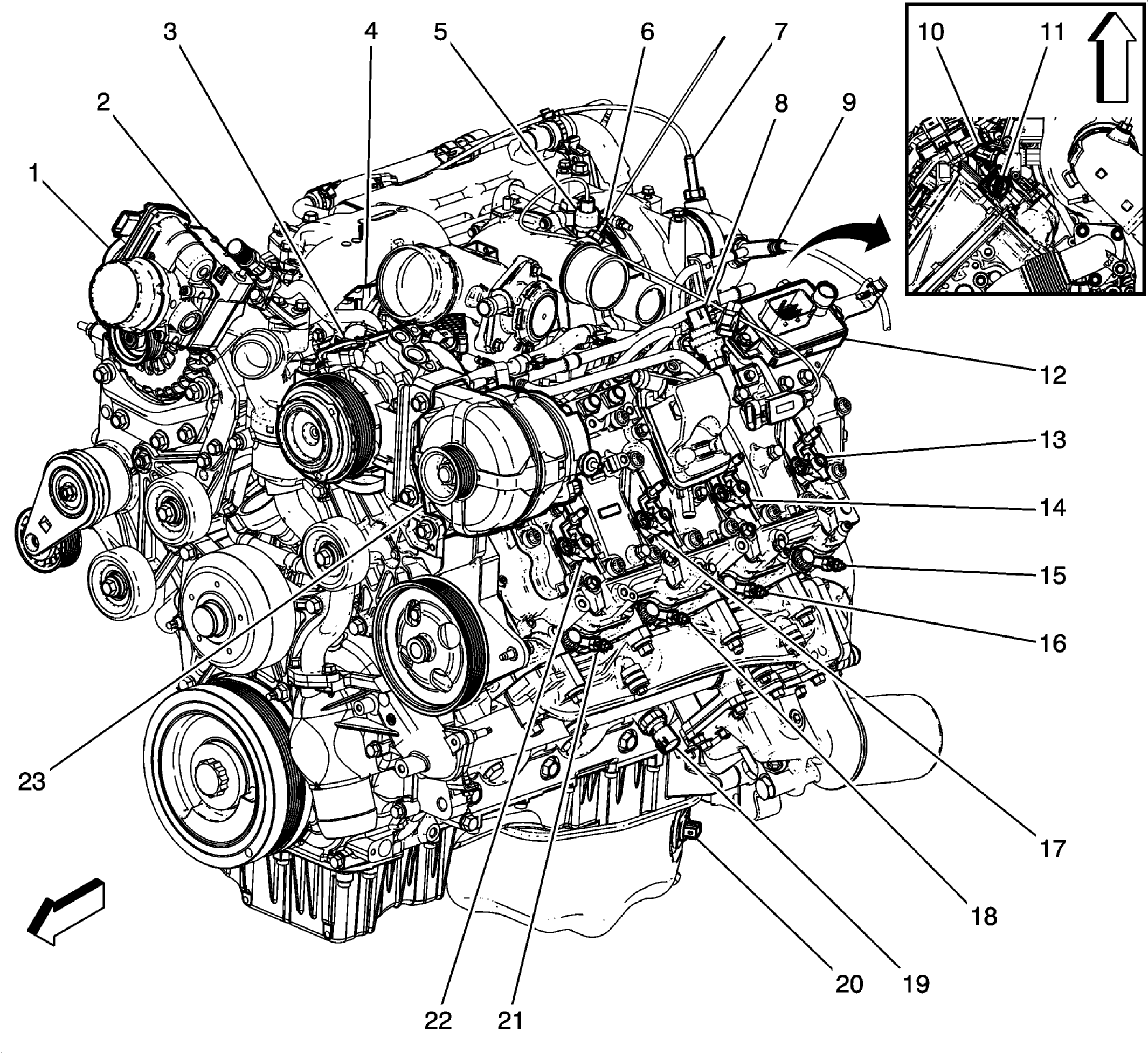

Left Front Of Engine Components (LGH)
LEFT FRONT OF ENGINE COMPONENTS (LGH)
| Component Name | Callout |
|---|---|
| Intake Air Valve | 1 |
| Intake Air Heater (IAH) | 2 |
| A/C Compressor Clutch | 3 |
| Exhaust Gas Recirculation (EGR) Valve | 4 |
| Turbocharger Vane Position Sensor | 5 |
| Charge Air Cooler Inlet Temperature Sensor | 6 |
| Exhaust Gas Recirculation (EGR) Temperature Sensor 1 | 7 |
| Fuel Filter Pressure Switch | 8 |
| Nitrogen Oxides Sensor 1 | 9 |
| Fuel Temperature Sensor 2 | 10 |
| Fuel Rail Pressure (FRP) Sensor | 11 |
| Glow Plug Control Module (GPCM) | 12 |
| Fuel Injector 8 | 13 |
| Fuel Injector 6 | 14 |
| Glow Plug 8 | 15 |
| Glow Plug 6 | 16 |
| Fuel Injector 4 | 17 |
| Glow Plug 4 | 18 |
| Engine Oil Pressure (EOP) Sensor | 19 |
| Engine Oil Level (EOL) Switch | 20 |
| Glow Plug 2 | 21 |
| Fuel Injector 2 | 22 |
| Generator | 23 |
