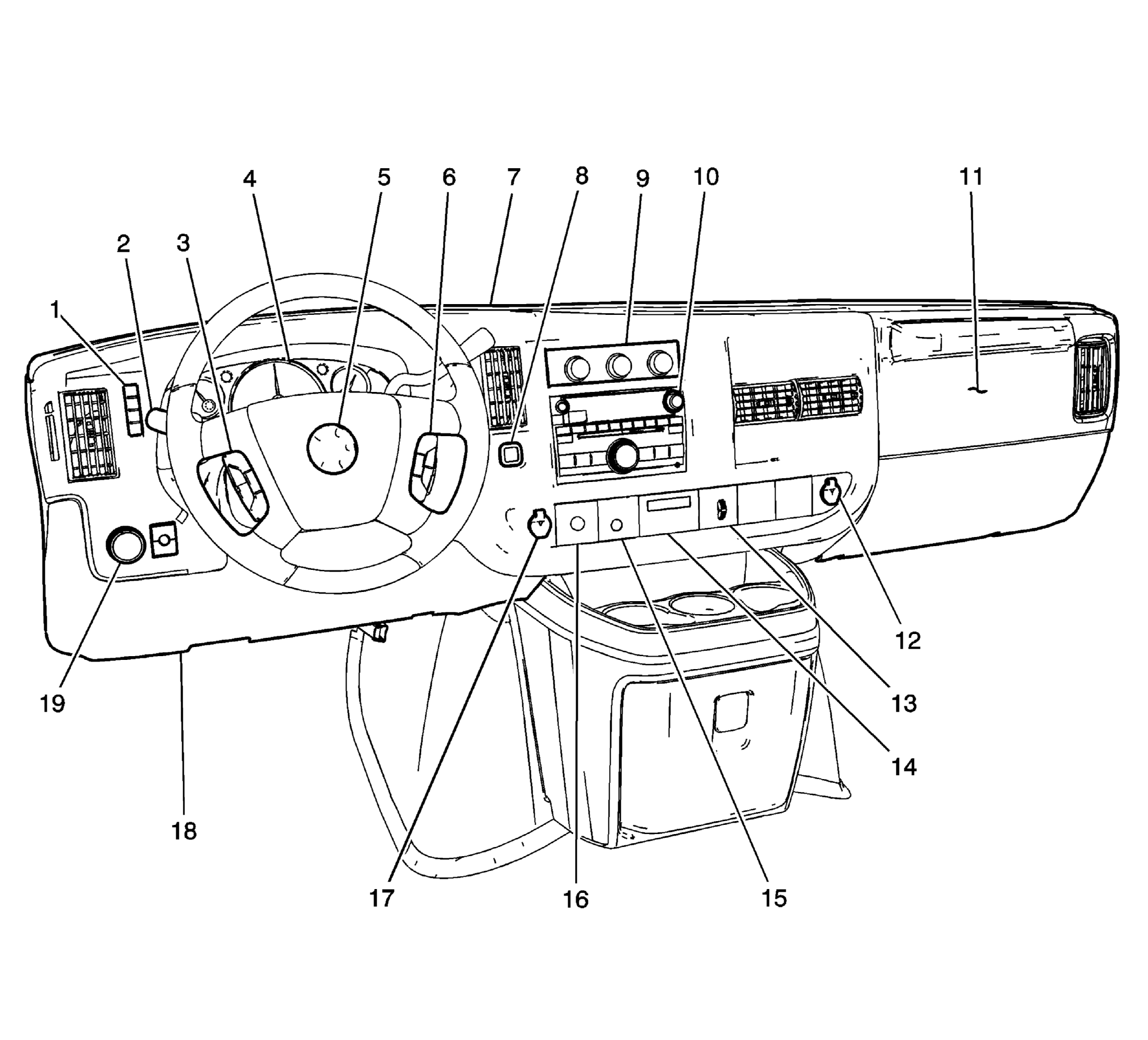

Instrument Panel Components
Instrument Panel Components
| Component Name | Callout |
|---|---|
| Driver Information Center (DIC) Switch | 1 |
| Turn Signal/Multifunction Switch | 2 |
| Steering Wheel Control Switch - Left (K34) | 3 |
| Instrument Panel Cluster (IPC) | 4 |
| Inflatable Restraint Steering Wheel Module | 5 |
| Steering Wheel Control Switch - Right (W1Y) | 6 |
| Instrument Panel | 7 |
| Tow/Haul Switch | 8 |
| HVAC Control Assembly | 9 |
| Radio | 10 |
| Inflatable Restraint I/P Module | 11 |
| Accessory Power Outlet - Center Console 2 | 12 |
| Blower Motor Switch - Auxiliary (C36 without C69) | 13 |
| Inflatable Restraint I/P Module Indicator (Light Duty without YF7) | 14 |
| Inflatable Restraint I/P Module Disable Switch (C99) | 15 |
| Traction Control Switch (TCS) (JL4) | 16 |
| Cigar Lighter (DT4)/Accessory Power Outlet - Center Console 1 (without DT4) | 17 |
| Data Link Connector (DLC) | 18 |
| Headlamp and Panel Dimmer Switch | 19 |
