Shift Lever Replacement

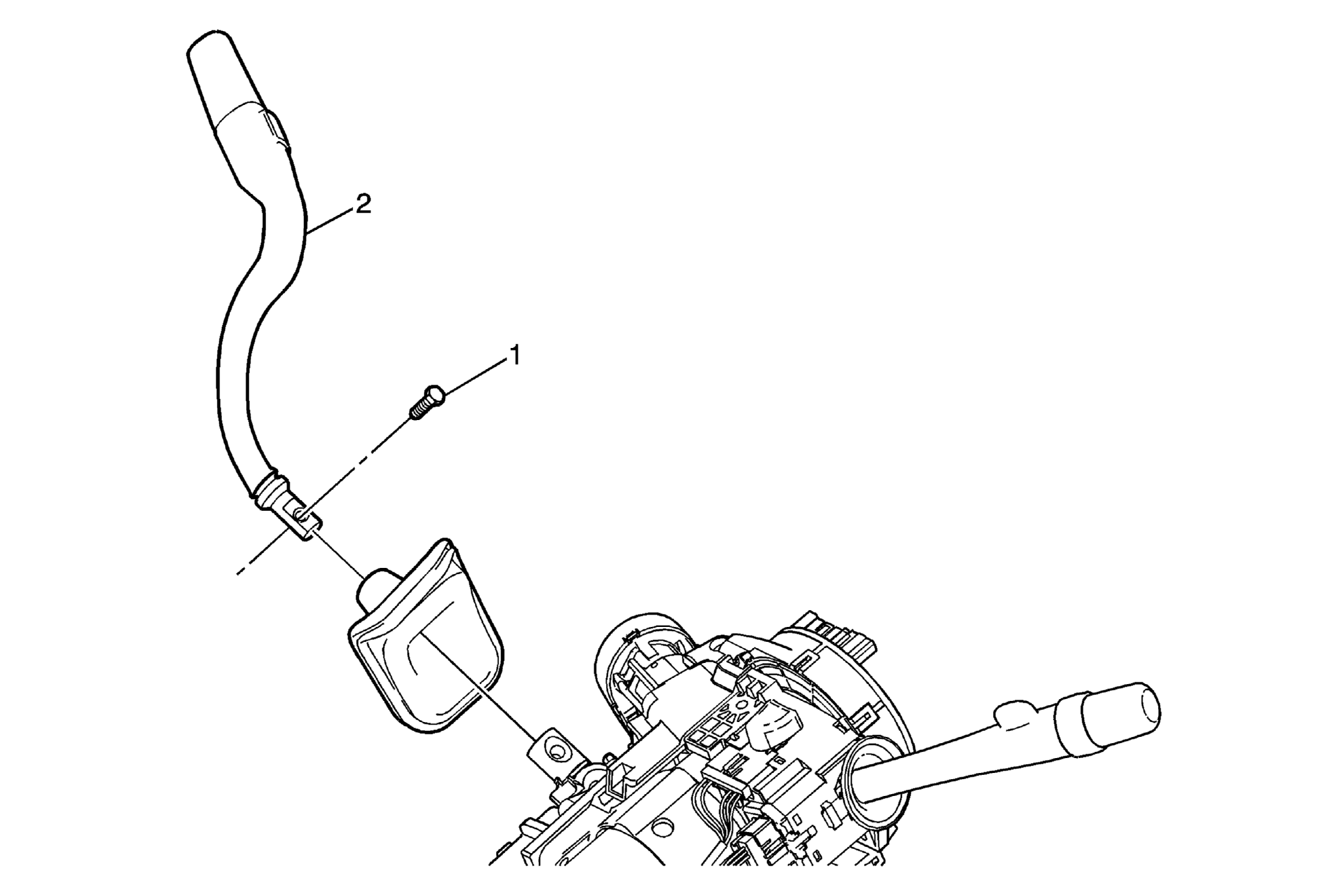

Fig 1: Shift Lever
GM2074457Courtesy of GENERAL MOTORS CORP.
Shift Lever Replacement

Callout Component Name
Preliminary Procedure
Remove the steering column trim covers. Refer to Steering Column Trim Cover Replacement .
1 Shift Lever Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
20 N.m (15 lb in)
2 Shift Lever
Procedure
Disconnect any electrical connectors as needed.
TIP:  Transfer the shift lever boot as needed.
