Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 GMC Savana Special, 2010 GMC Savana Camper Special, 2010 GMC Savana, 2010 Chevrolet RV Cutaway, and 2010 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

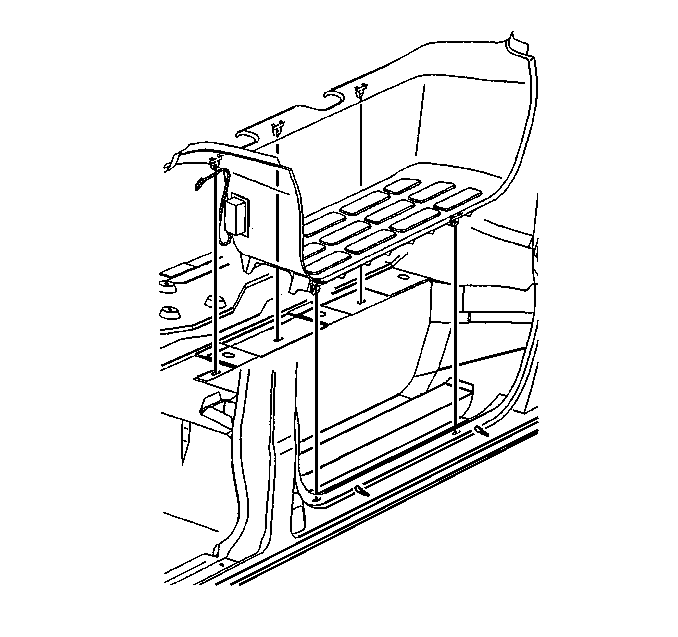

    Fig 1: Identifying Front Door Stepwell Mat
    GM318793Courtesy of GENERAL MOTORS CORP.
  1. Install the front door stepwell mat to the vehicle.
  2. Connect the electrical connector for the stepwell lamp.
  3. Press down on the front door stepwell mat in order to engage the retaining clips.
  4. Install the front door lower pillar garnish molding. Refer to Lower Pillar Garnish Molding Replacement .
  5. Install the hinge pillar trim panel. Refer to Body Hinge Pillar Trim Panel Replacement .
