Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 GMC Savana Special, 2010 GMC Savana Camper Special, 2010 GMC Savana, 2010 Chevrolet RV Cutaway, and 2010 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

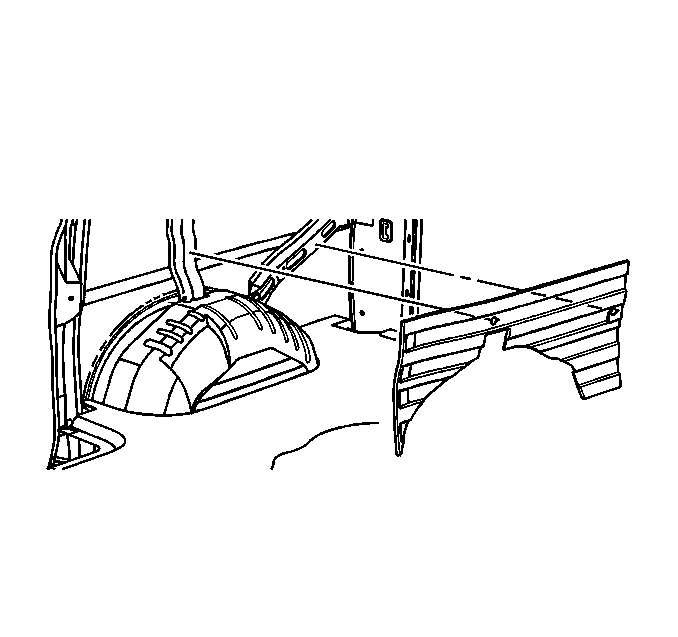

    Fig 1: View Of Passenger Side Body Side Protector
    GM318846Courtesy of GENERAL MOTORS CORP.
  1. Install the passenger side body side protector to the vehicle.

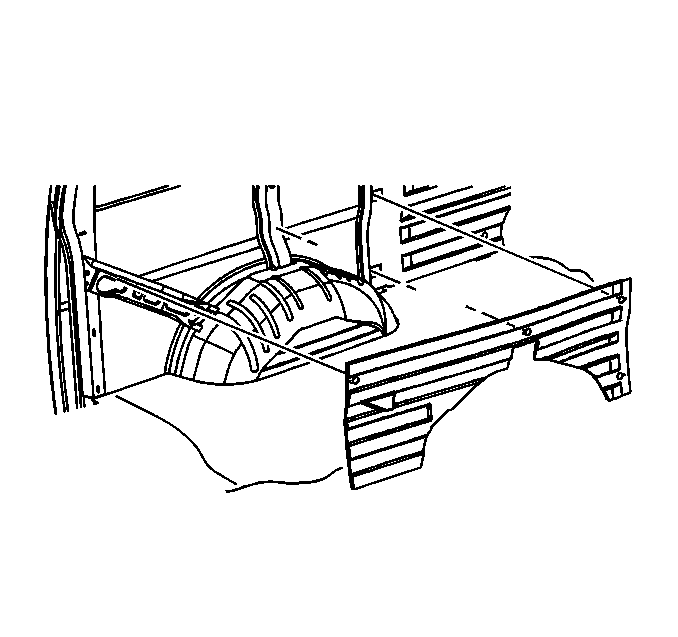

    2. Fig 2: View Of Driver Side Body Side Rear Protector
    GM318842Courtesy of GENERAL MOTORS CORP.
  2. Install the driver side body side rear protector to the vehicle.

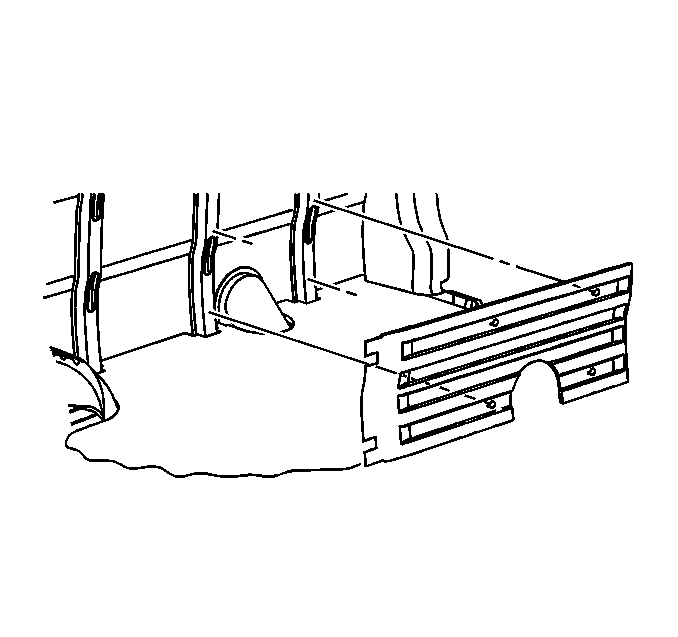

    3. Fig 3: View Of Body Side Protector Retainers
    GM318839Courtesy of GENERAL MOTORS CORP.
  3. Install the driver side body side front protector to the vehicle.
  4. Install the retainers to the body side protectors.
