Antilock Brake System Schematics

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 GMC Savana Special, 2010 GMC Savana Camper Special, 2010 GMC Savana, 2010 Chevrolet RV Cutaway, and 2010 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

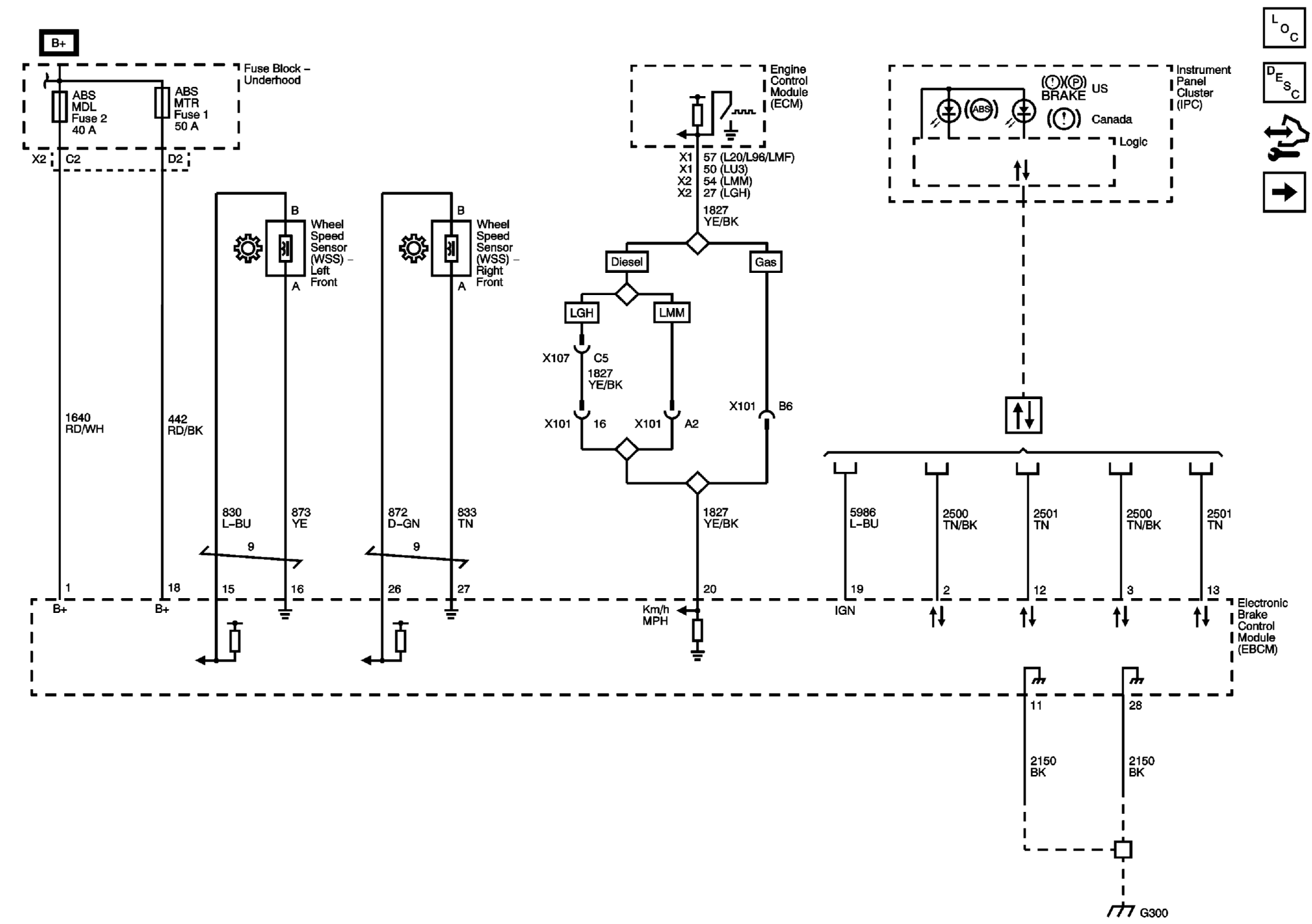

Fig 1: Power, Ground, Serial Data, Speed Signals & Indicators Circuit Schematic (JL9)

Courtesy of GENERAL MOTORS CORP.

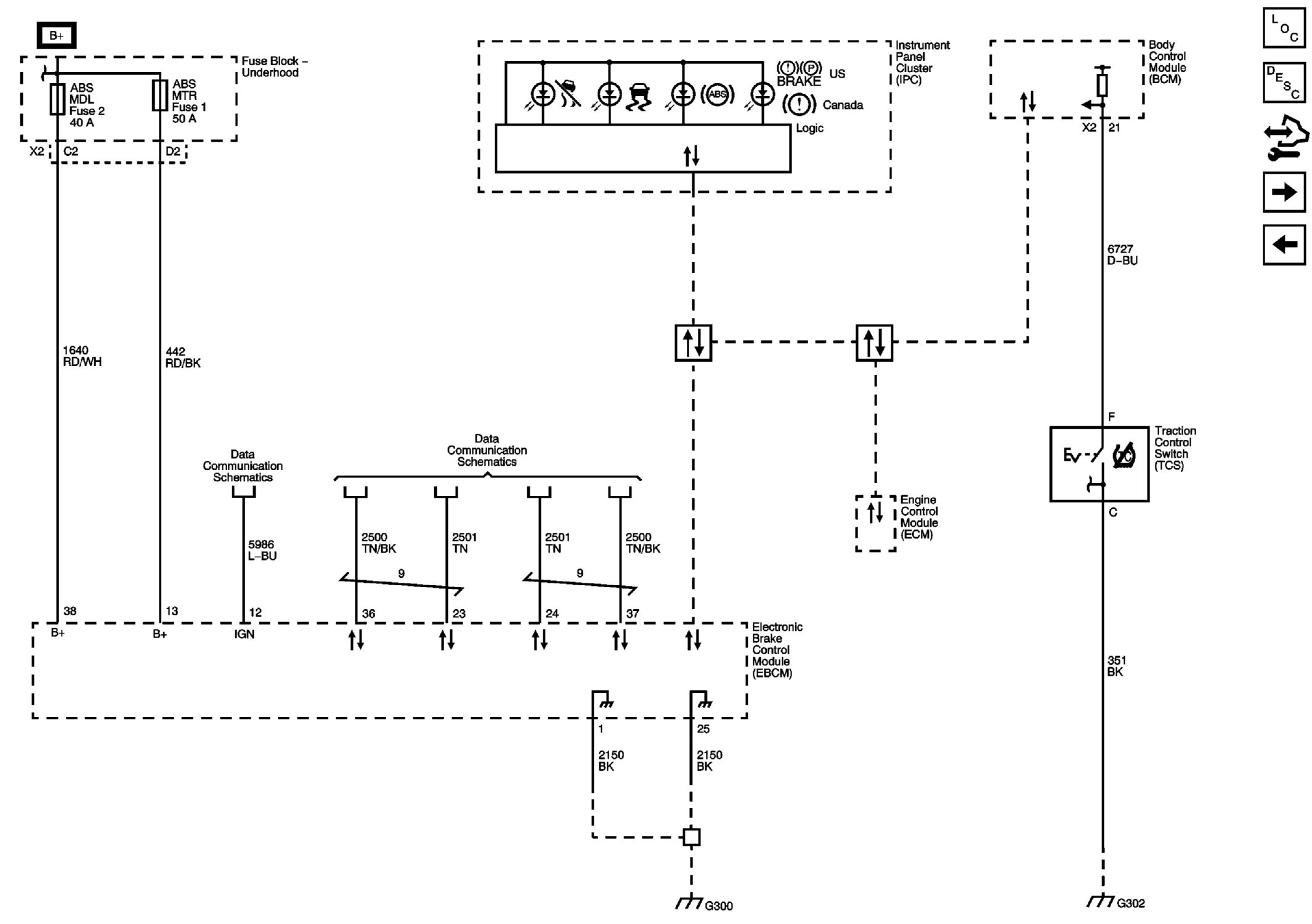

Fig 2: Power, Ground, Serial Data, Indicators & Traction Control Switch Circuit Schematic (JL4)

Courtesy of GENERAL MOTORS CORP.

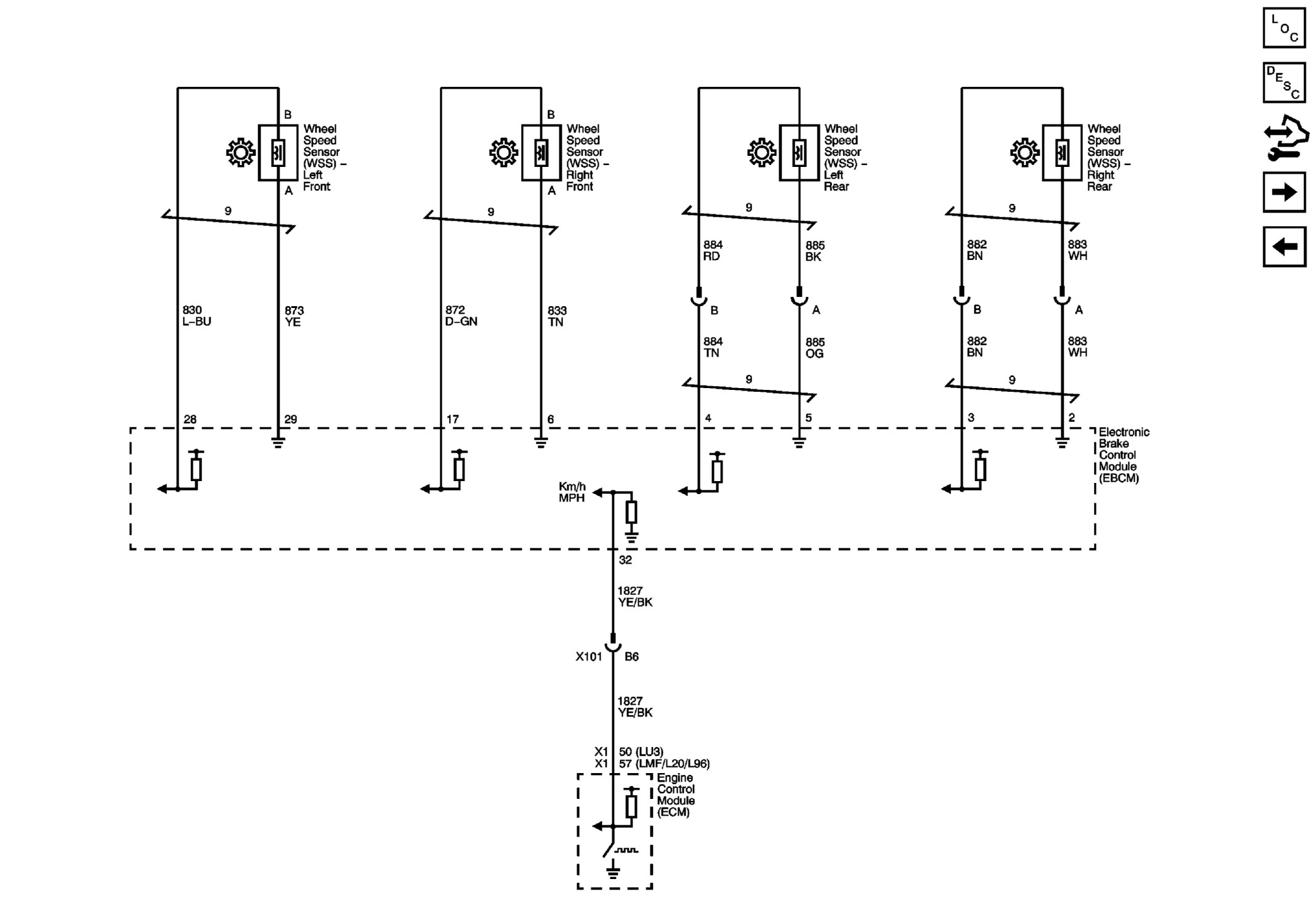

Fig 3: Speed Signals Circuit Schematic (JL4)

Courtesy of GENERAL MOTORS CORP.

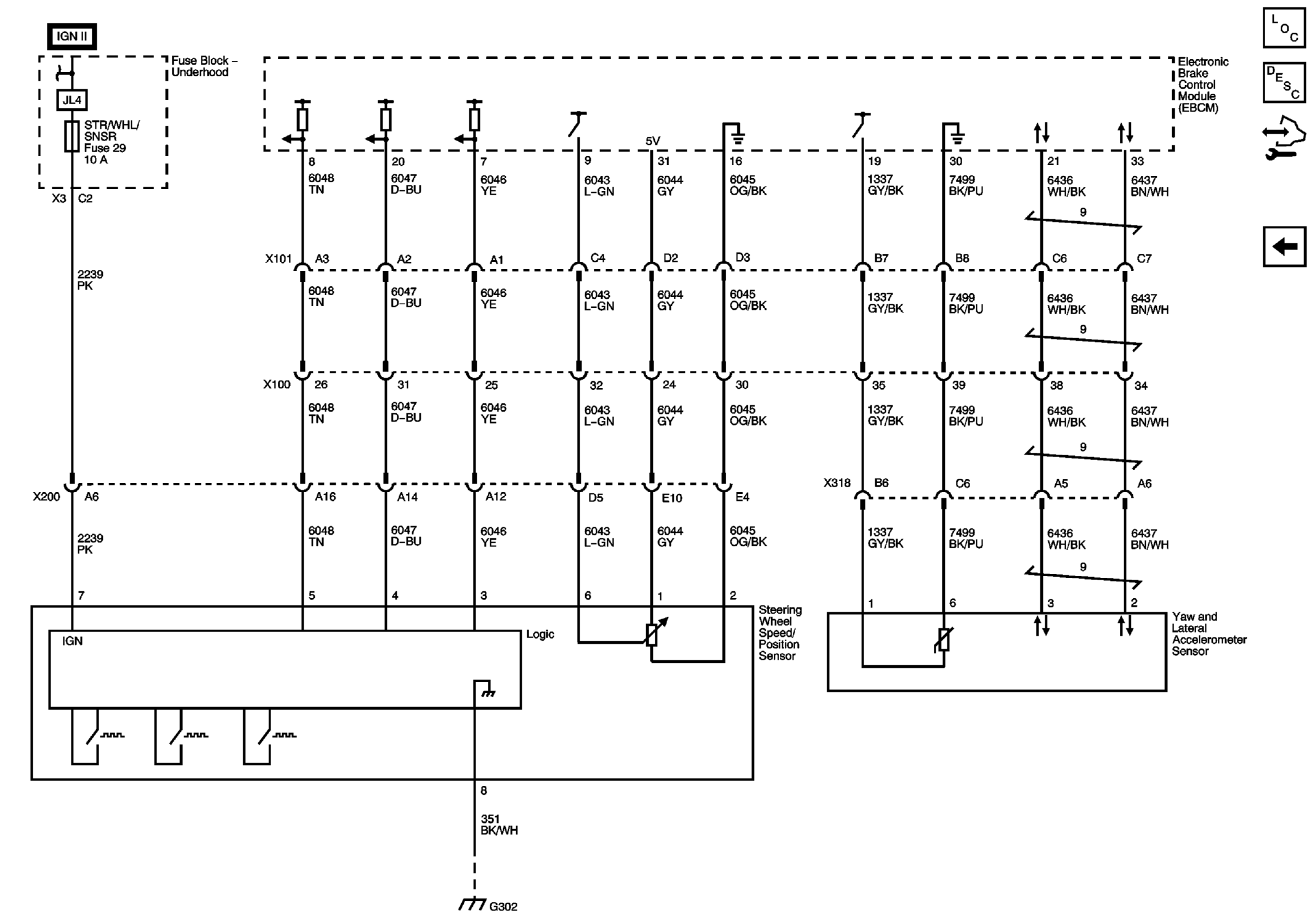

Fig 4: StabiliTrak Steering Wheel Position Inputs & Yaw & Lateral Accelerometer Sensor Circuit Schematic (JL4)

Courtesy of GENERAL MOTORS CORP.
