Manifold Absolute Pressure Sensor Replacement
Manifold Absolute Pressure Sensor Replacement

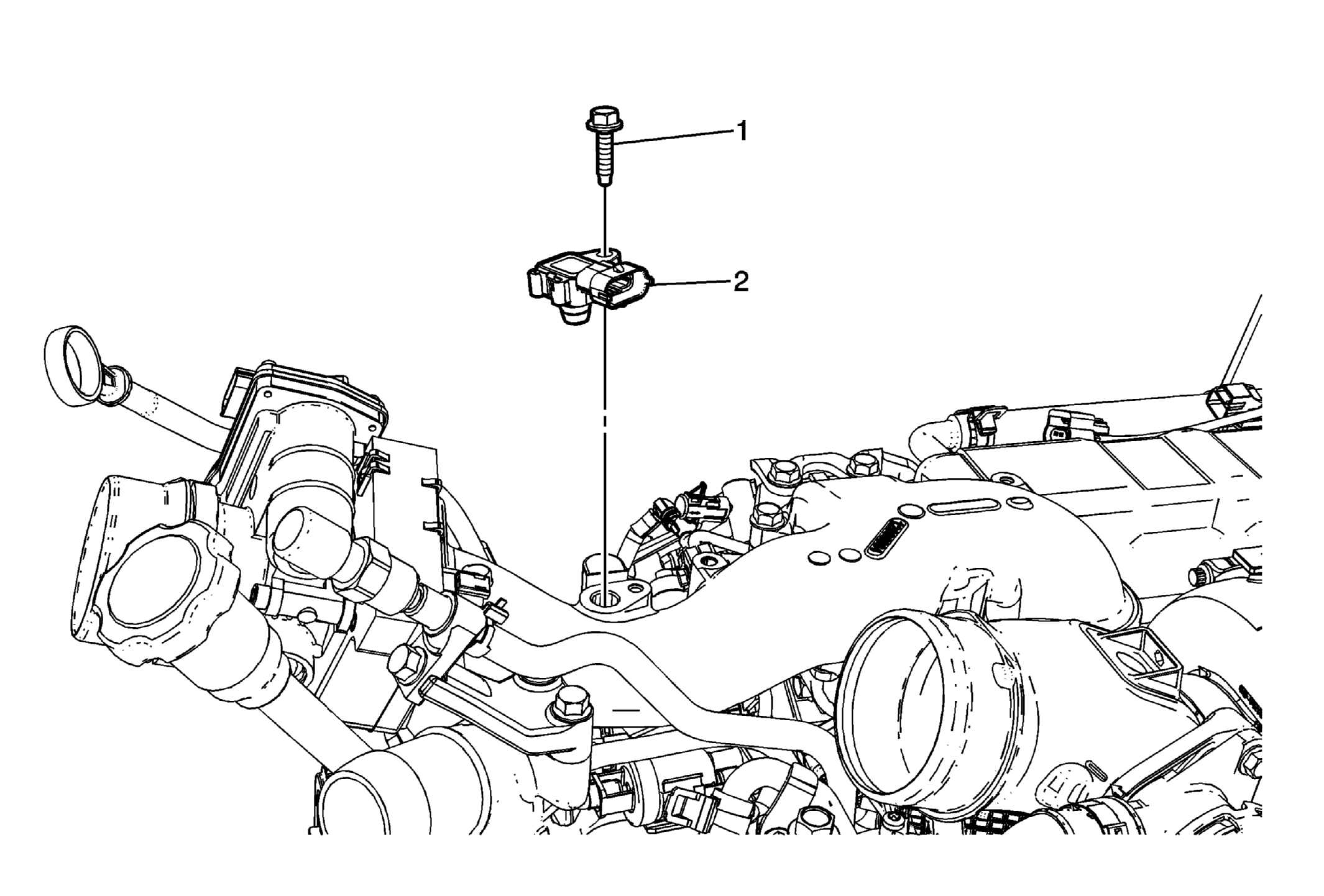

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the intake air heater. Refer to Intake Air Heater Replacement . |
|
| 1 | Manifold Absolute Pressure Sensor Fastener
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 2 | Manifold Absolute Pressure Sensor Procedure Disconnect the electrical connector. |
