Removal Procedure

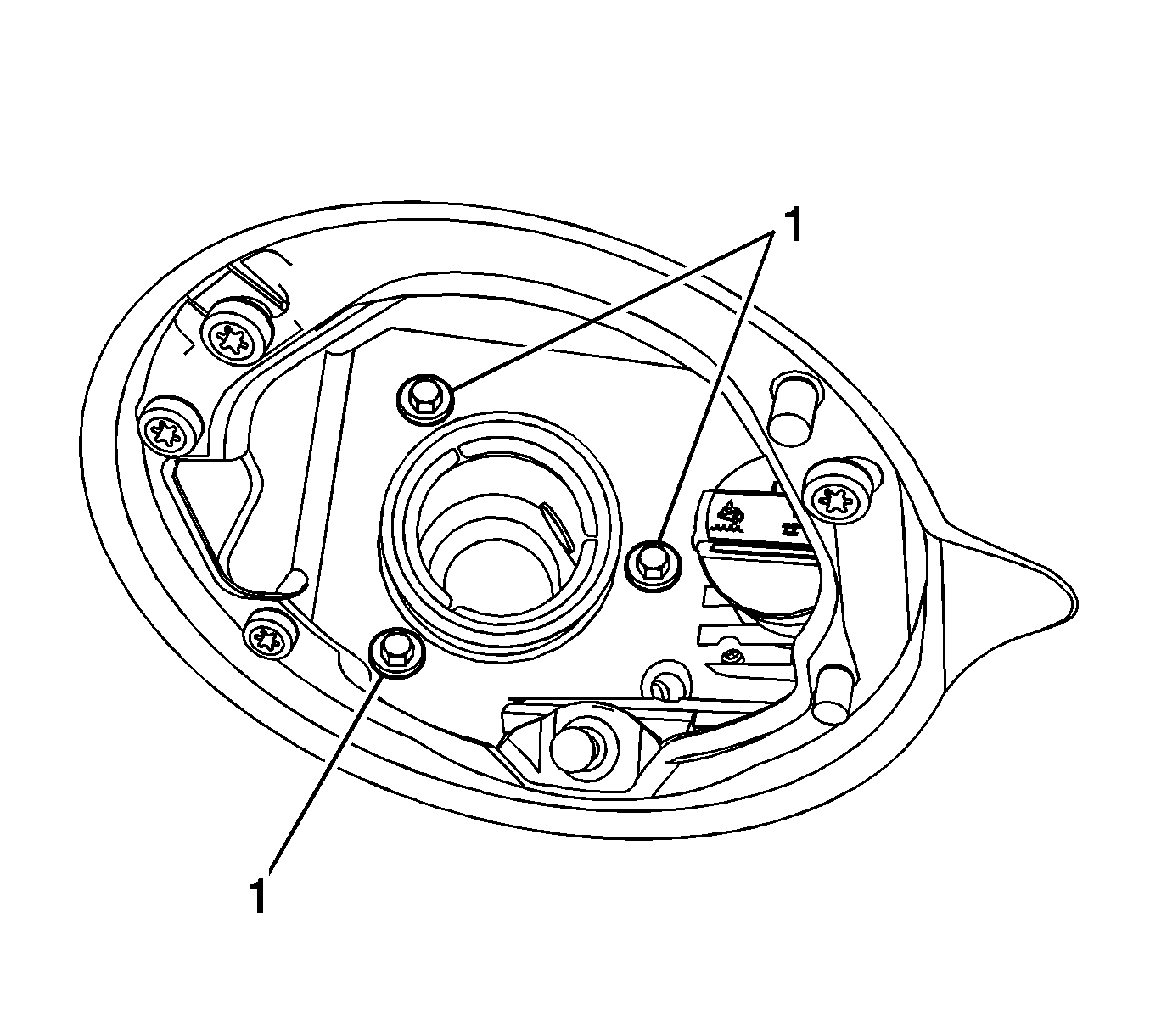

    Fig 1: Filler Housing Fasteners
    GM2369148Courtesy of GENERAL MOTORS CORP.
  1. Drain the fuel below the fuel fill neck. Refer to Fuel Tank Draining .
  2. Remove the filler housing fasteners (1).

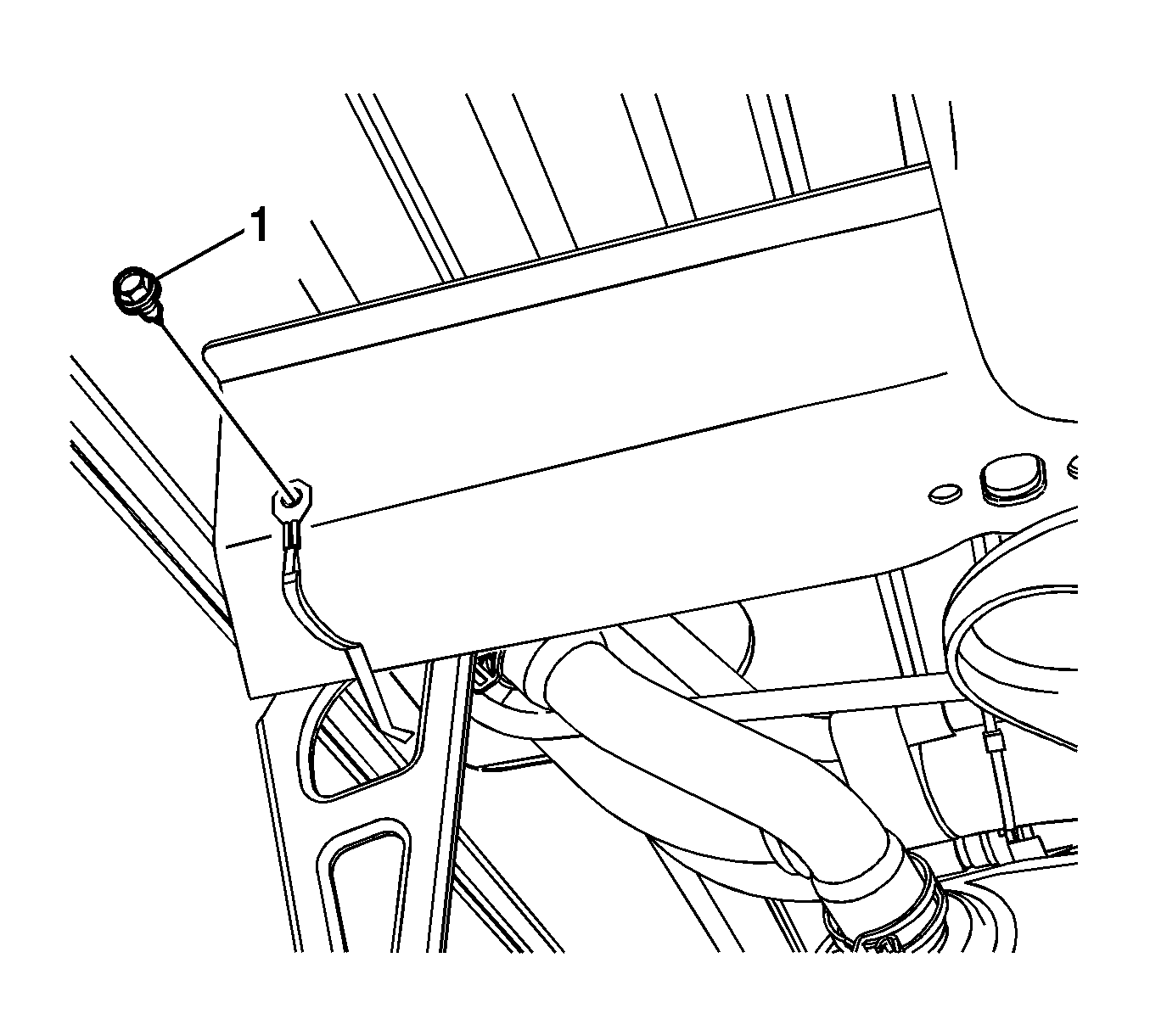

    3. Fig 2: Filler Hose Ground Fastener
    GM2369164Courtesy of GENERAL MOTORS CORP.
  3. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  4. Remove the filler hose ground fastener (1).

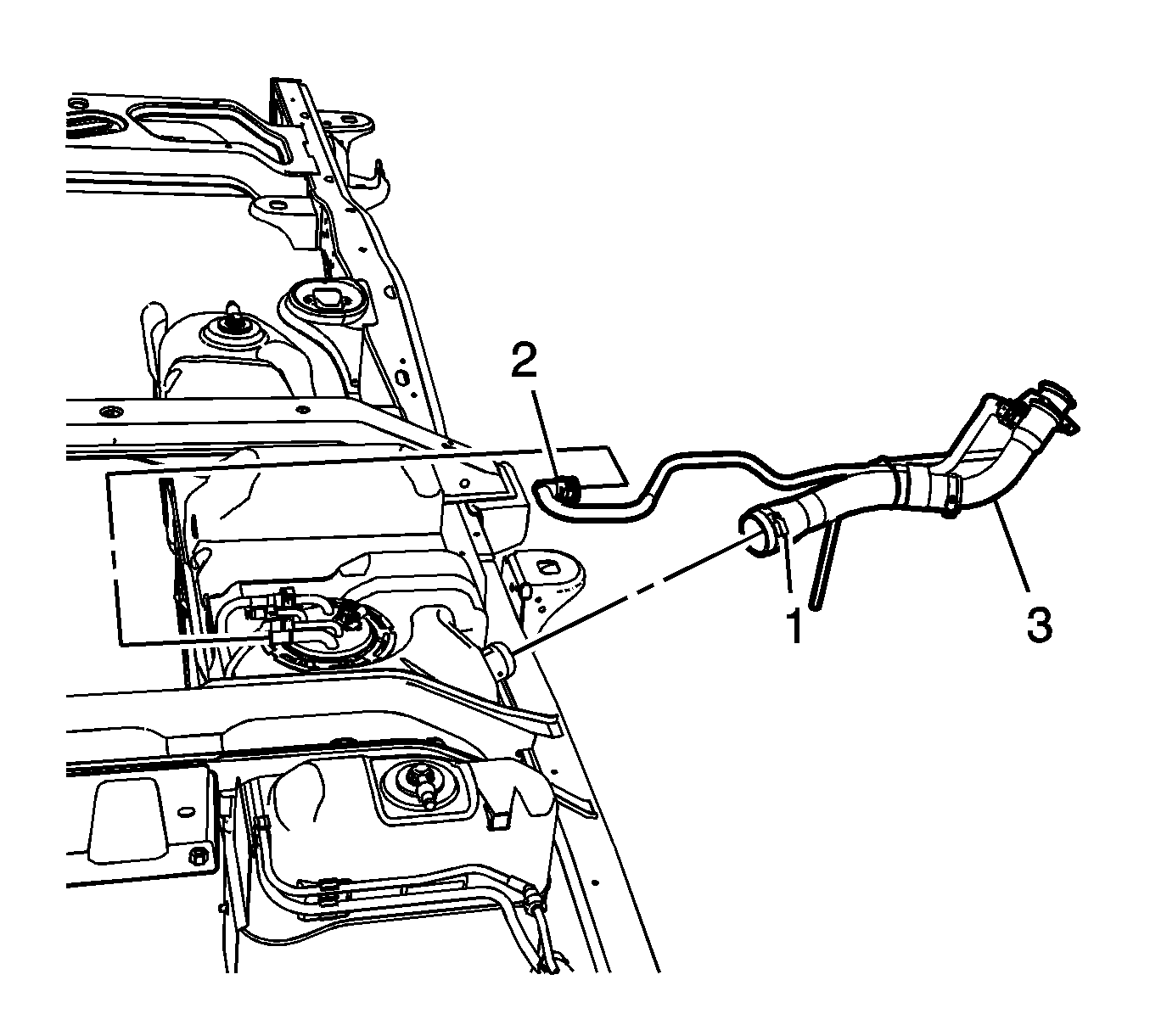

    5. Fig 3: UEL Tank Filler Hose
    GM2369211Courtesy of GENERAL MOTORS CORP.
  5. Loosen the bottom filler hose clamp (1).
  6. Disconnect the vent tube (2) from the fuel sender. Refer to Plastic Collar Quick Connect Fitting Service .
  7. Remove the fuel tank filler hose (3).
