Installation Procedure

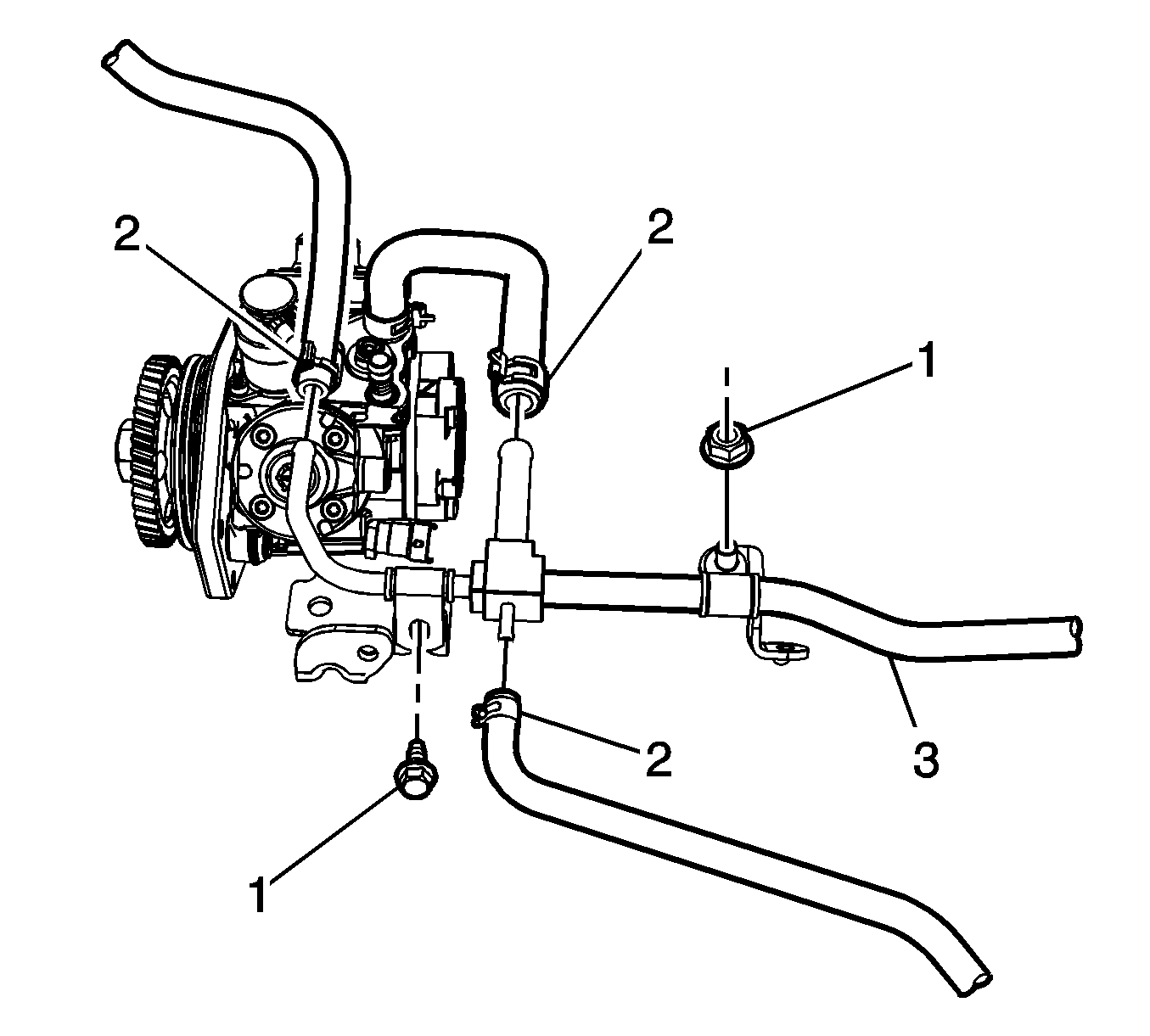

    Fig 1: Fuel Feed Pipe And Retainers
    GM2365926Courtesy of GENERAL MOTORS CORP.
    CAUTION:

    Refer to Fastener Caution .

  1. Install the fuel feed pipe (3).
  2. Compress the spring clamps (2) and connect the hoses.
  3. Install the fasteners (1) and tighten to 25 N.m (18 lb ft).
    4. Fig 2: Fuel Feed/Return Bracket Bolt
    GM1734168Courtesy of GENERAL MOTORS CORP.
  4. Install the fuel line bracket fastener and tighten to 25 N.m (18 lb ft).
  5. Connect the fuel feed and return pipes.
  6. Install the intake manifold tube. Refer to Intake Manifold Tube Replacement .
  7. Install the charge air cooler inlet pipe. Refer to Charge Air Cooler Inlet Pipe Replacement .
  8. Prime the fuel system. Refer to Fuel System Priming .
  9. Start the engine.

    If the engine does not start, repeat the above step.

  10. Inspect the fuel system for fuel leaks.
  11. Install the engine cover. Refer to Engine Cover Replacement .
