Exhaust Gas RECIRCULATION Valve Bracket Replacement

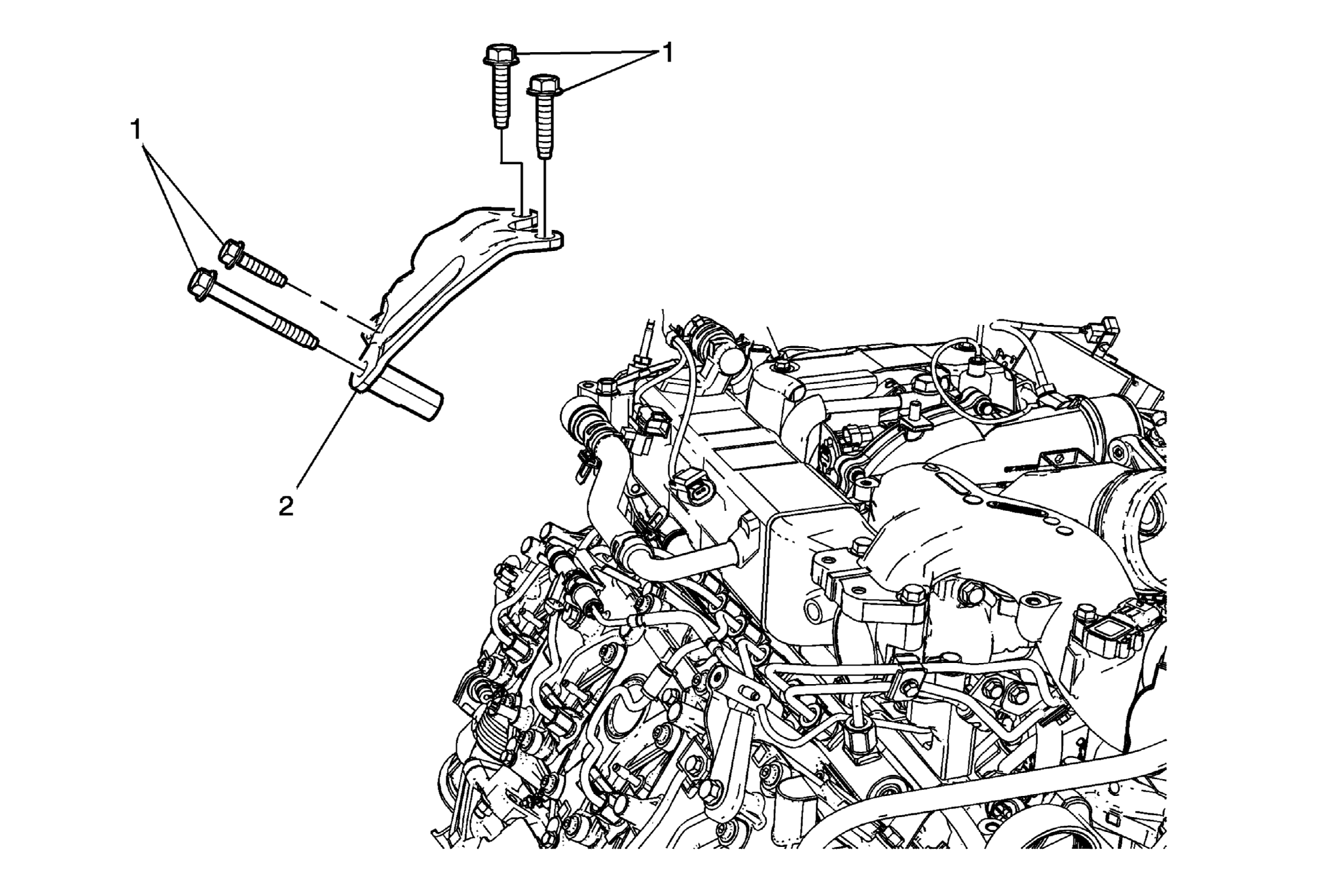

Fig 1: Exhaust Gas Recirculation Valve Bracket

Courtesy of GENERAL MOTORS CORP.

Exhaust Gas Recirculation Valve Bracket Replacement

Callout	Component Name
Procedure Remove the engine cover. Refer to Engine Cover Replacement . Remove the upper portion of the transmission fill tube. Refer to Transmission Fluid Filler Tube and Seal Replacement .
1	Exhaust Gas Recirculation Bracket Fasteners (Qty: 3) CAUTION: Refer to Fastener Caution Tighten 25 N.m (18 lb ft)
2	Exhaust Gas Recirculation Bracket

Callout

Component Name

Procedure

Remove the engine cover. Refer to Engine Cover Replacement .
Remove the upper portion of the transmission fill tube. Refer to Transmission Fluid Filler Tube and Seal Replacement .

Exhaust Gas Recirculation Bracket Fasteners (Qty: 3)

CAUTION:

Tighten
25 N.m (18 lb ft)

Exhaust Gas Recirculation Bracket
