Engine Coolant Temperature Sensor Replacement

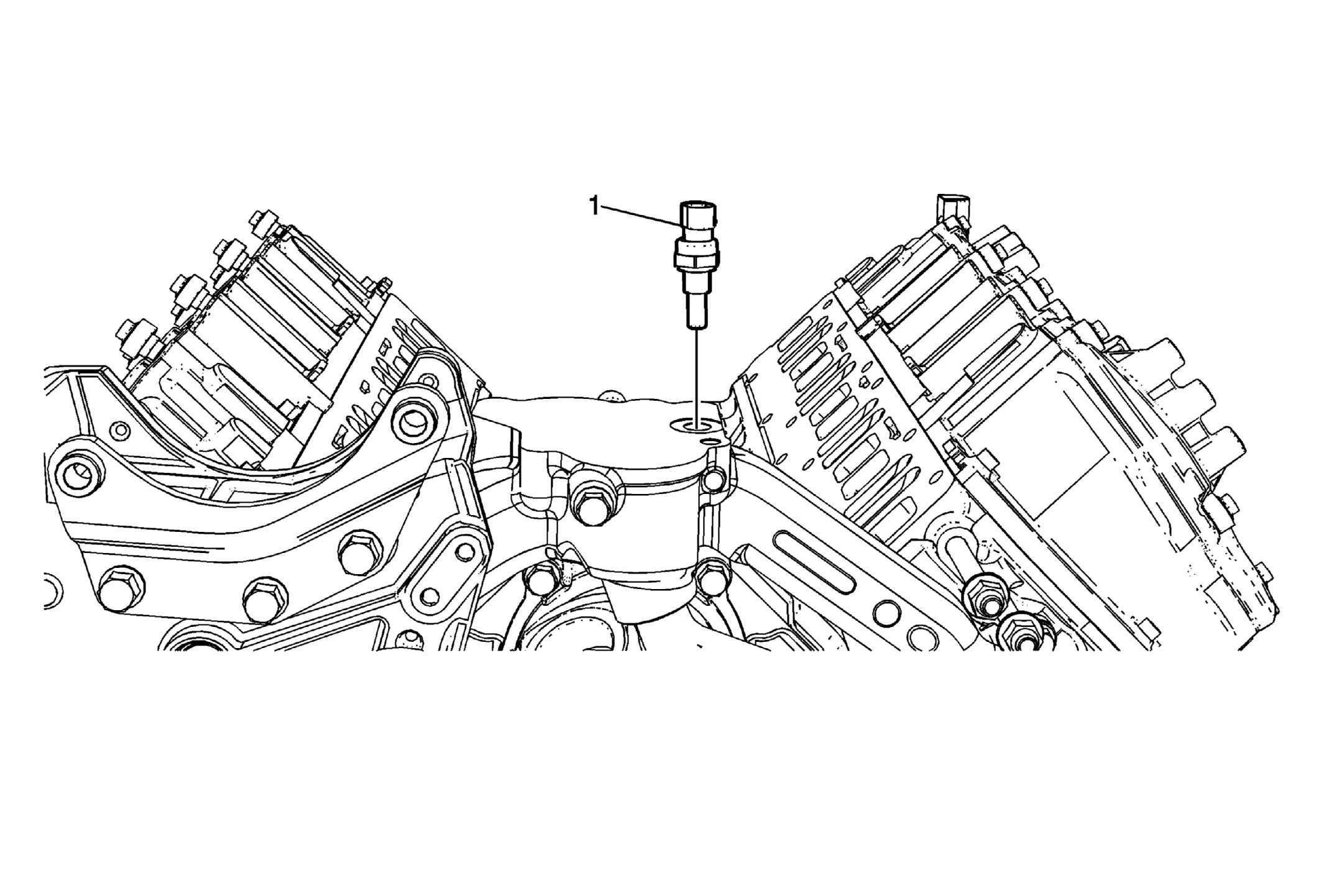

Fig 1: Engine Coolant Temperature Sensor
GM2356141Courtesy of GENERAL MOTORS CORP.
Engine Coolant Temperature Sensor Replacement

Callout Component Name

Preliminary Procedure

  1. Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement
  2. Partially drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill) , Cooling System Draining and Filling (Vac N Fill) , Cooling System Draining and Filling (Static Fill Diesel) .
1 Engine Coolant Temperature Sensor
CAUTION:

Refer to Fastener Caution .


Procedure
Disconnect the electrical connector.
Tighten
20 N.m (15 lb ft)
