Charge Air Temperature Sensor Replacement (Turbocharger)
Charge Air Temperature Sensor Replacement (Turbocharger)
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the engine cover. Refer to Engine Cover Replacement . |
|

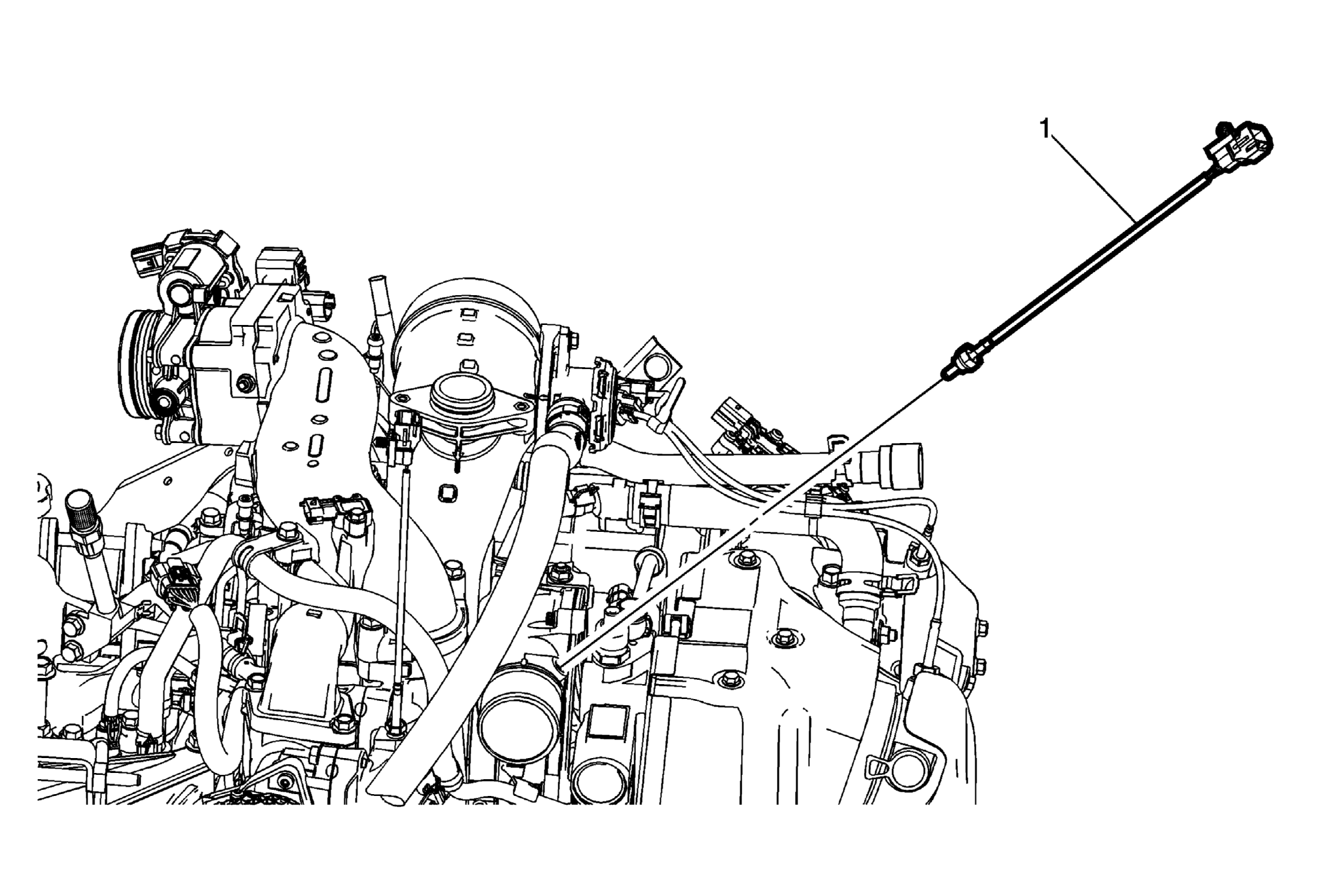

| 1 | Charge Air Temperature Sensor
CAUTION:
Refer to Fastener Caution . Procedure Disconnect the electrical connector. Tighten 44 N.m (32 lb ft) |
