Installation Procedure

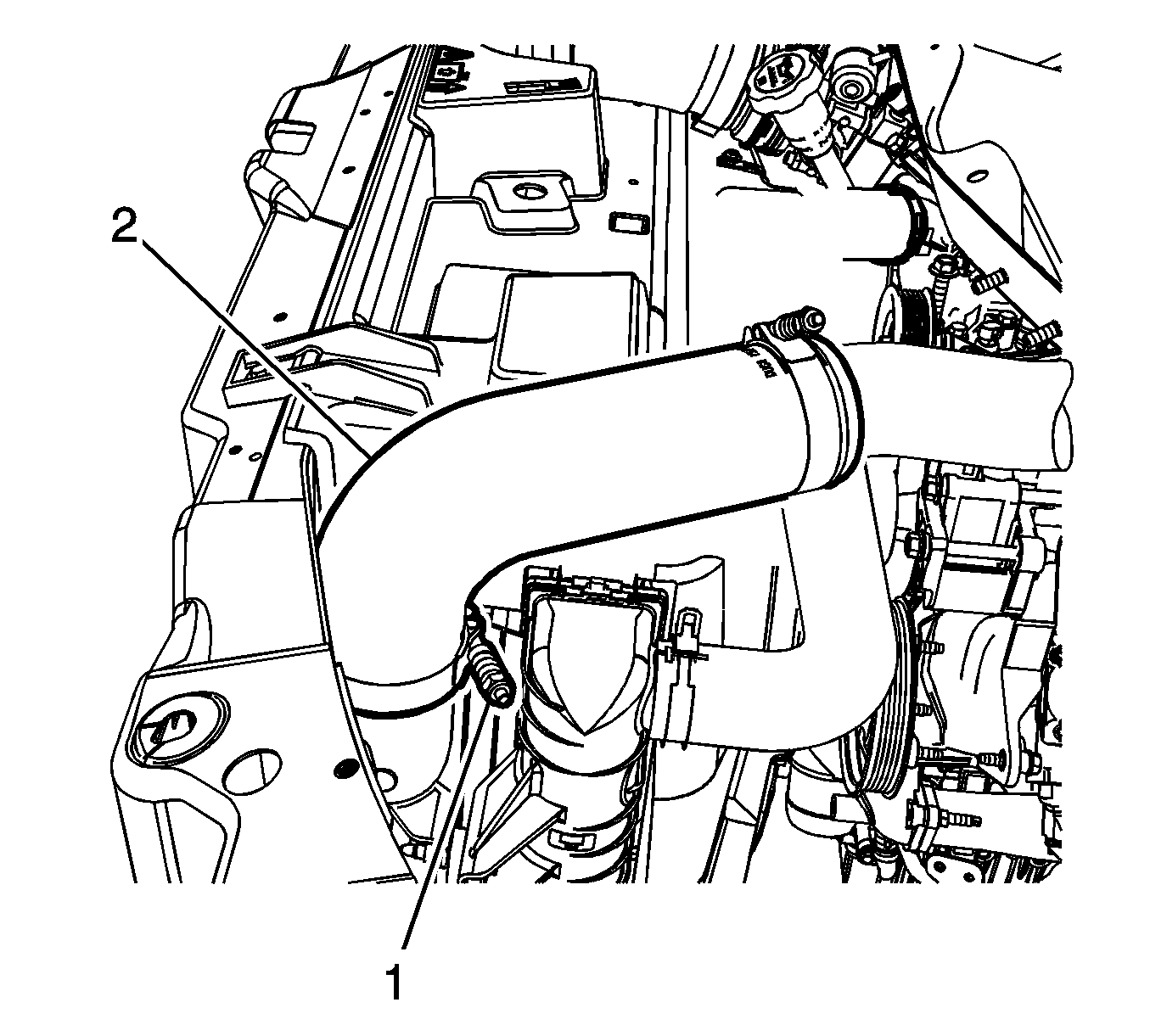

    Fig 1: Air Inlet Pipe And Clamp
    GM2371359Courtesy of GENERAL MOTORS CORP.
    CAUTION:

    Refer to Fastener Caution .

  1. Install the inlet pipe (1) and tighten to 6 N.m (53 lb in)

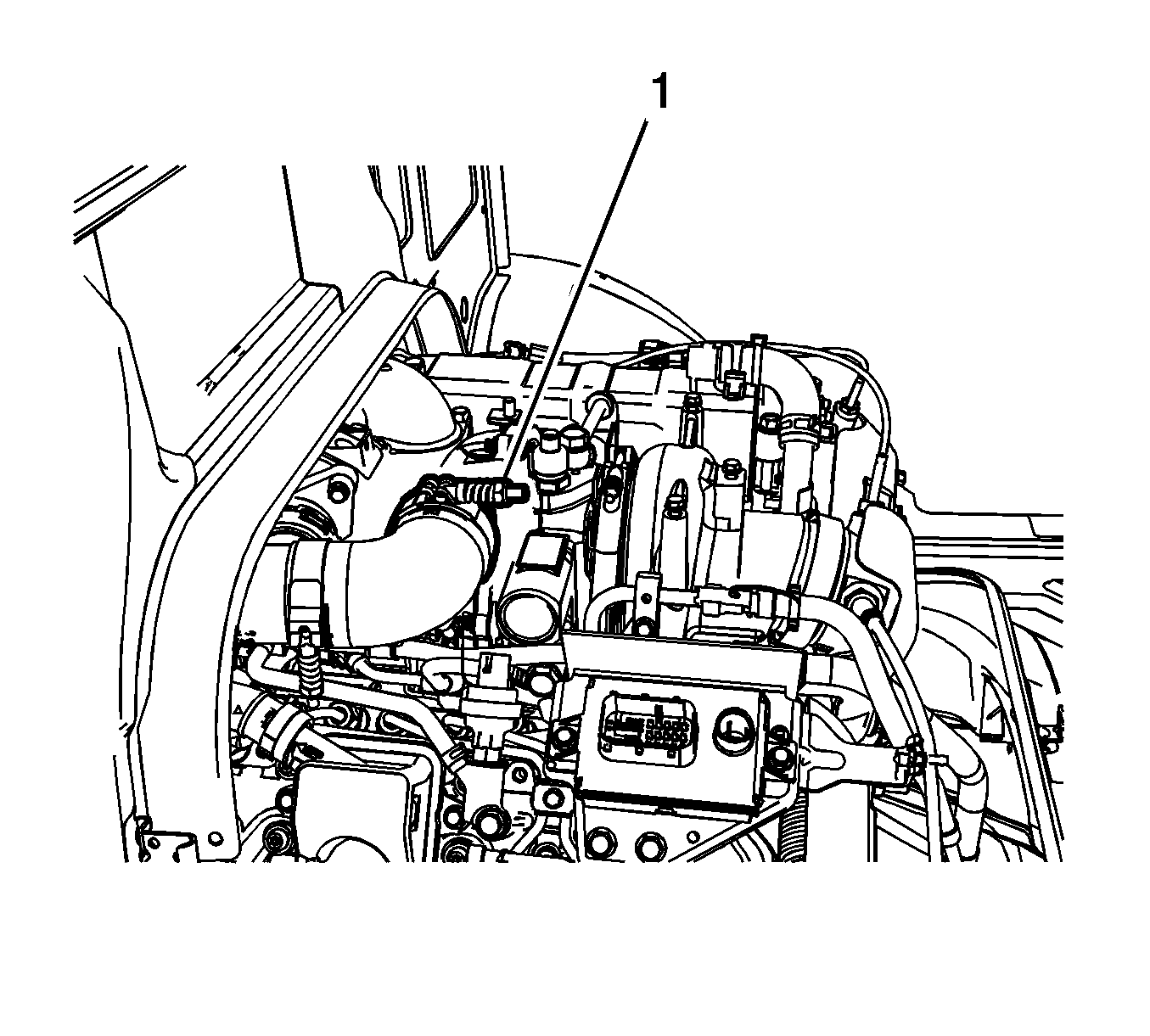

    2. Fig 2: Inlet Pipe Clamp
    GM2371357Courtesy of GENERAL MOTORS CORP.
    CAUTION:

    Ensure the pipe clamp position is pointed slightly downward in order to prevent damage to the engine cover insulation.

  2. Tighten the inlet pipe clamp (1) to 6 N.m (53 lb in)
  3. Install the engine cover. Refer to Engine Cover Replacement .
  4. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
