Installation Procedure

  1. If you are replacing the steering column, transfer the match marks from the old column to the new column.

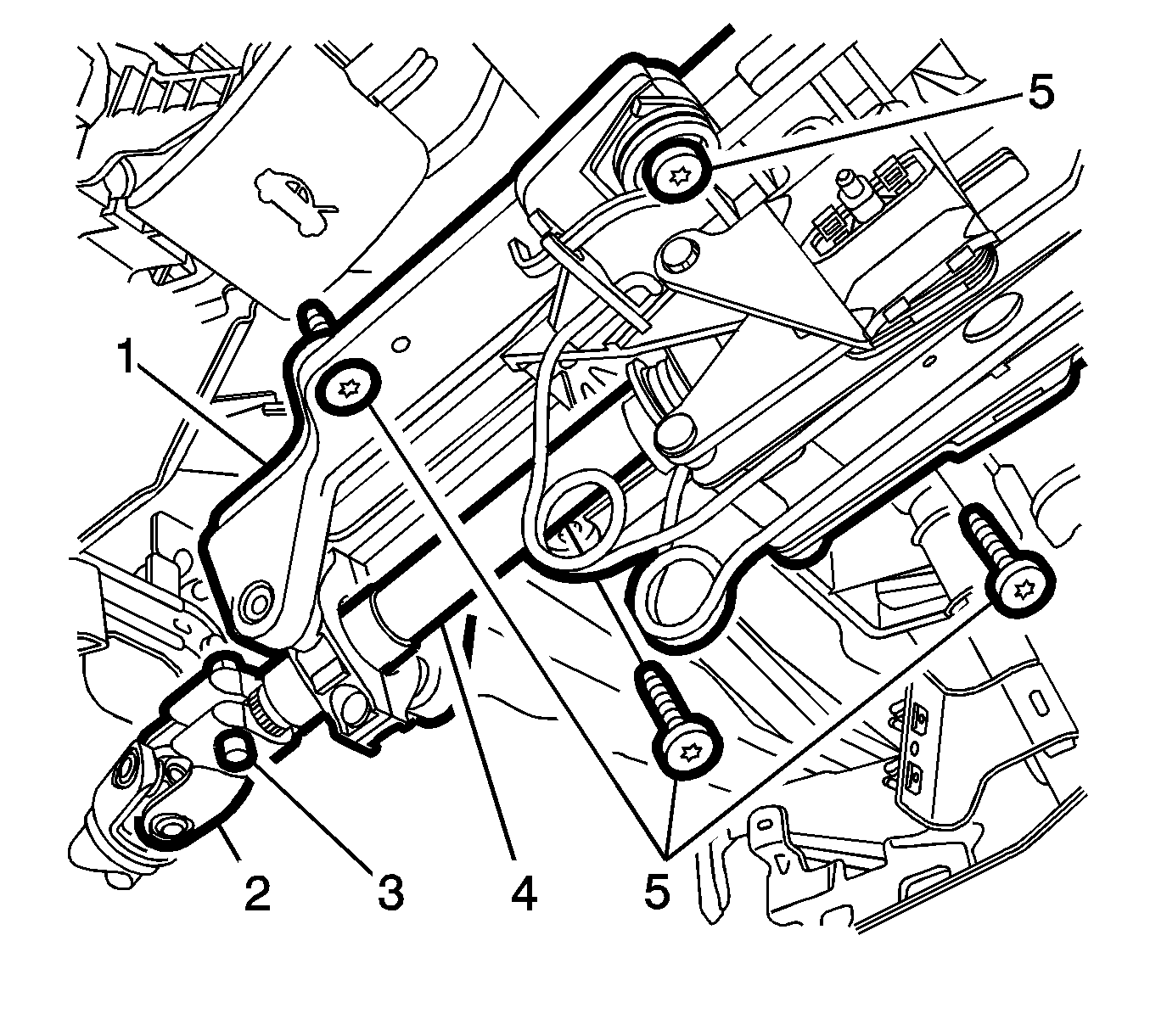

    2. Fig 1: Identifying Steering Column Assembly To Body Retaining Bolts
    GM1959847Courtesy of GENERAL MOTORS CORP.
  2. Position the steering column assembly (1) in the vehicle.
  3. Align the match marks and connect the steering column shaft (4) to the intermediate steering shaft (2).
    4. CAUTION:

    Refer to Fastener Caution .

  4. Install the 4 NEW steering column assembly to body retaining bolts (5) and tighten to 22 N.m (16 lb ft).
  5. Install the NEW steering column shaft to intermediate steering shaft retaining bolt (3) and tighten to 28 N.m (21 lb ft).
  6. Connect the electrical connectors as necessary.
  7. Install the driver side floor air outlet duct. Refer to Floor Air Outlet Duct Replacement - Left Side (LHD) .
  8. Install the driver side knee bolster. Refer to Knee Bolster Replacement .
  9. Install the steering column trim covers. Refer to Steering Column Trim Cover Replacement .
  10. Enable the SIR system. Refer to SIR Disabling and Enabling .
  11. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (Primary) , Battery Negative Cable Disconnection and Connection (Auxiliary) .
