Steering Angle Sensor Replacement (LHD)

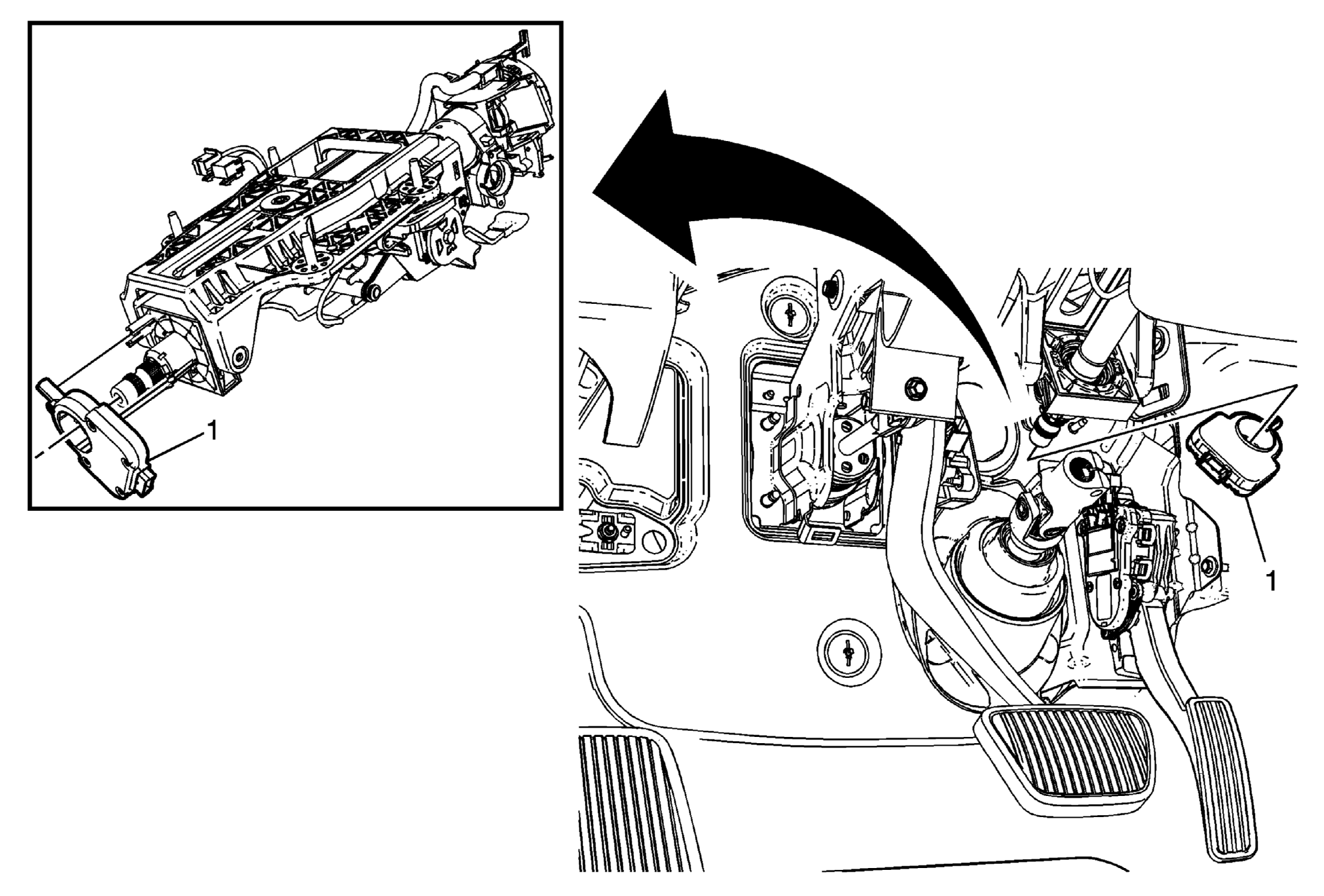

Fig 1: Steering Angle Sensor (LHD)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the left side floor air outlet duct and the left side instrument panel retainer. Disconnect the intermediate steering shaft from the steering column shaft. Refer to Intermediate Steering Shaft Replacement .
1	Steering Angle Sensor Procedure Disconnect the electrical connector. Disconnect the 2 retainers on the lower left side of the steering column shaft. Slide the steering angle sensor off of the steering column shaft. After the installation, center the steering angle sensor. Refer to Steering Angle Sensor Centering .

Callout

Component Name

Preliminary Procedure
Remove the left side floor air outlet duct and the left side instrument panel retainer. Disconnect the intermediate steering shaft from the steering column shaft. Refer to Intermediate Steering Shaft Replacement .

Steering Angle Sensor

Procedure

Disconnect the electrical connector.
Disconnect the 2 retainers on the lower left side of the steering column shaft.
Slide the steering angle sensor off of the steering column shaft.
After the installation, center the steering angle sensor. Refer to Steering Angle Sensor Centering .
