Inflatable Restraint Front Passenger Presence Module Replacement

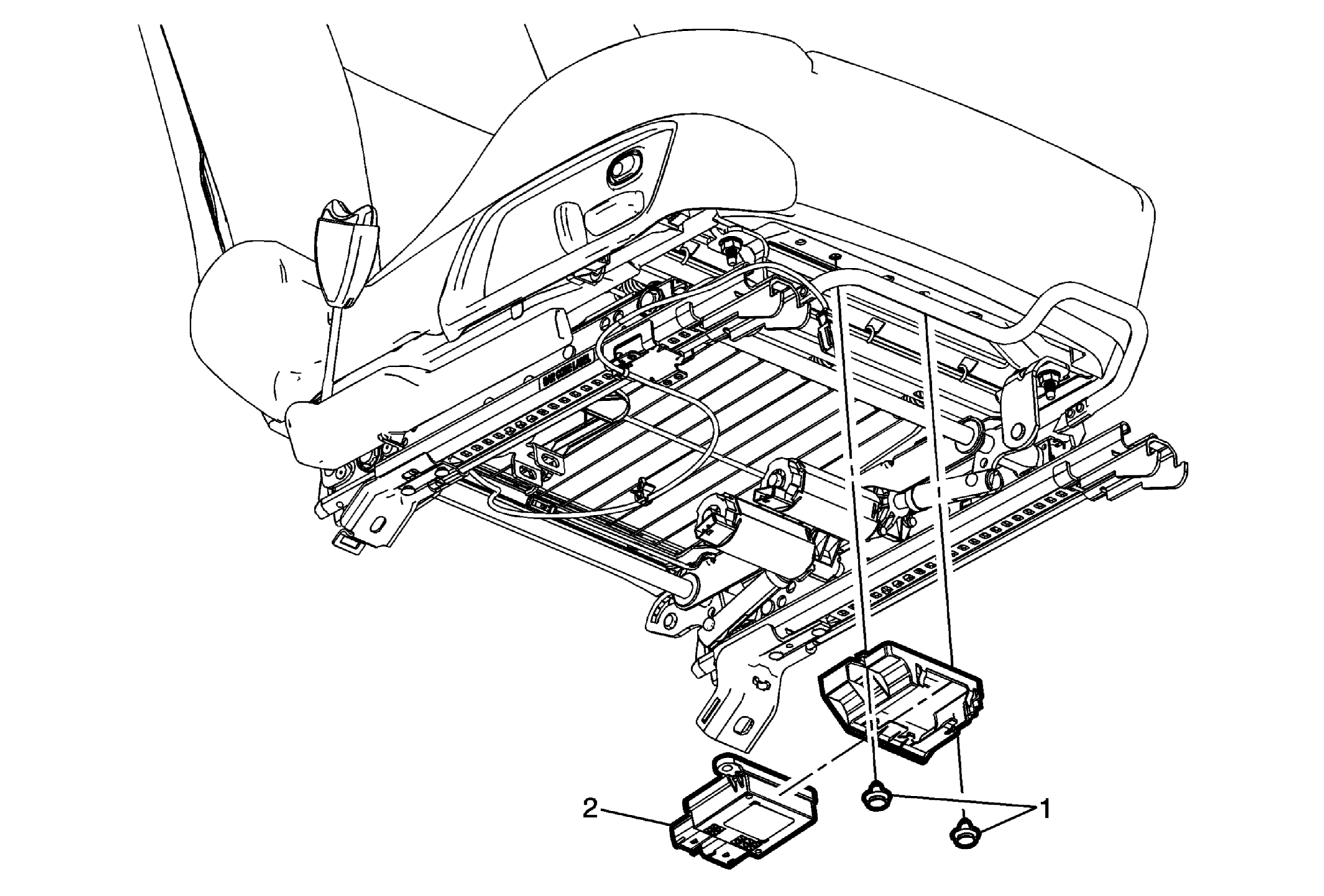

Fig 1: Inflatable Restraint Front Passenger Presence Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
WARNING: Refer to SIR Warning . Procedure Disable the SIR system. Refer to SIR Disabling and Enabling
1	Inflatable Restraint Passenger Presence Module Retainer (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Inflatable Restraint Passenger Presence Module NOTE: The inflatable restraint passenger presence module and sensor are serviced separately. Replacing the sensor does not require replacement of the module. Procedure Refer to Control Module References for replacement and setup information.
