Ground Views: G303
G303
Component Name
Callout
Radio Connector
1
Cigar Lighter Connector
2
G303
3
X223
4

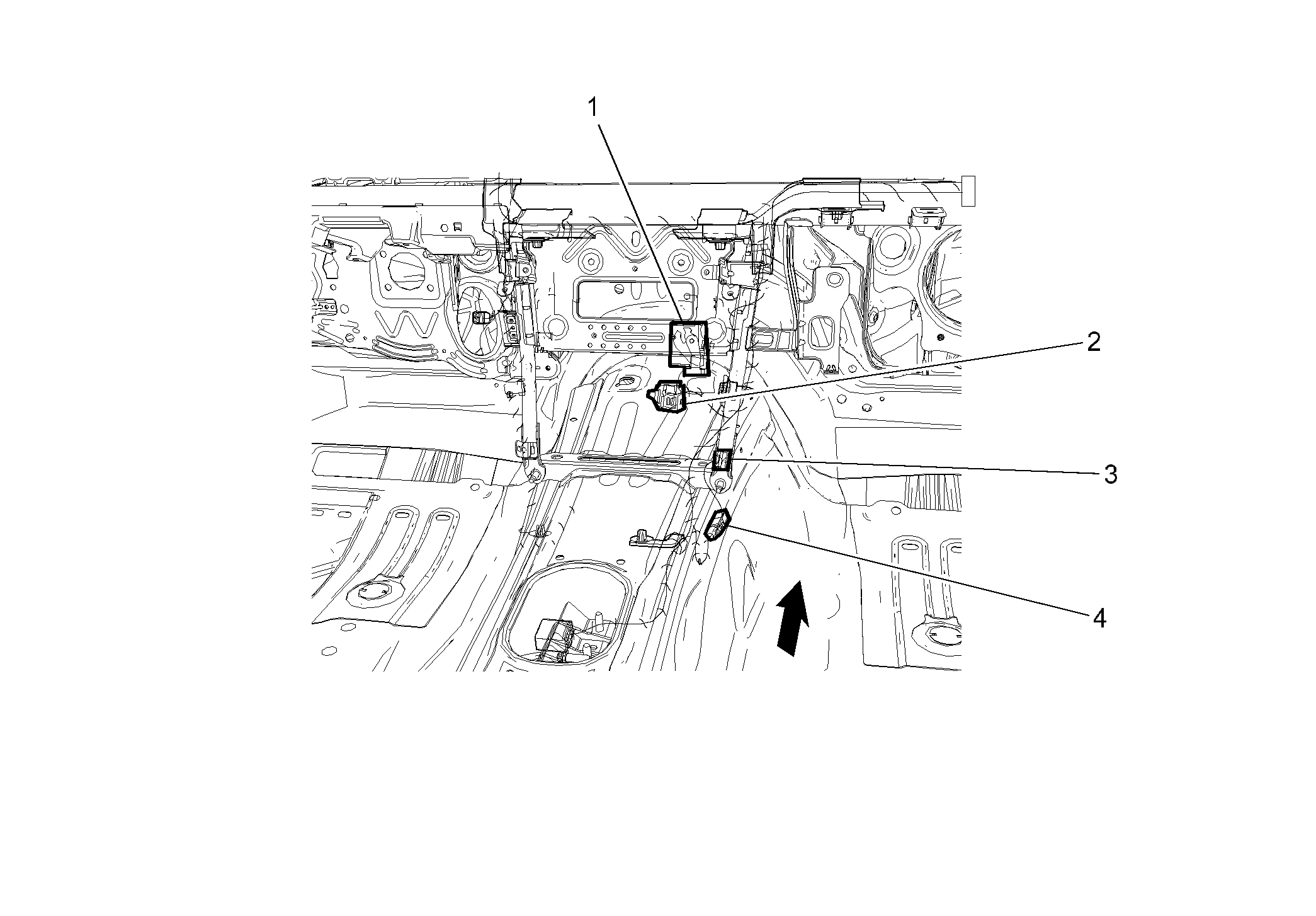

Fig 1: G303
Courtesy of GENERAL MOTORS CORP.
