Right Side of the Engine Compartment Components

Right Side of the Engine Compartment Components

Component Name Callout
X50A Fuse Block - Underhood 1
Cooling Fan Relay 2
Cooling Fan Relay 3
K17 Electronic Brake Control Module 4
Cooling Fan Relay 5
K20 Engine Control Module 6

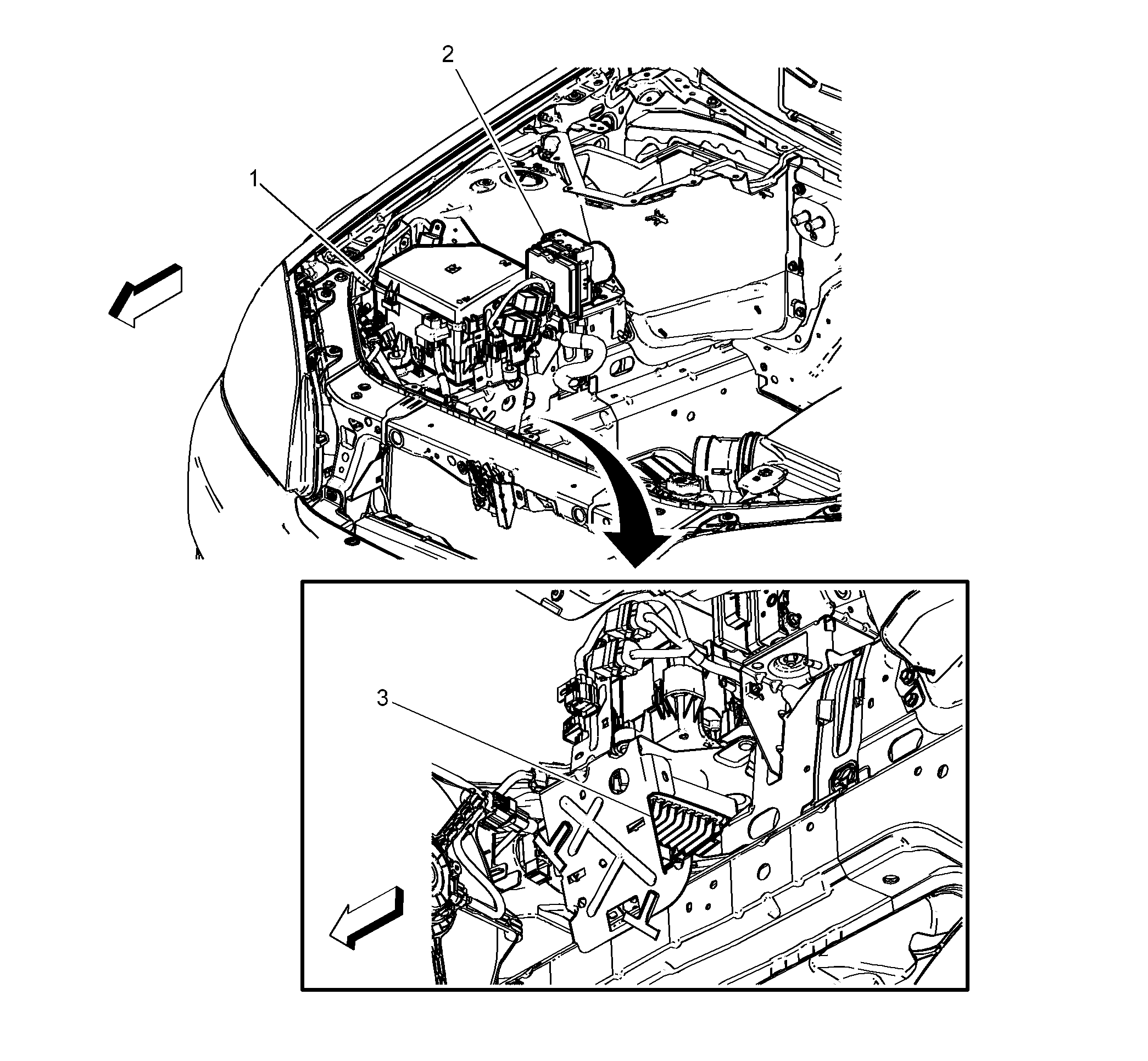

Fig 1: Right Side of the Engine Compartment Components
GM2542881Courtesy of GENERAL MOTORS CORP.
