Removal Procedure

WARNING: This page is about a different car, the 2010 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air cleaner resonator and outlet duct assembly. Refer to Air Cleaner Resonator and Outlet Duct Replacement .
  2. Drain the cooling system. Refer to Cooling System Draining and Filling (LS3, L99 Static Fill)  or Cooling System Draining and Filling (GE 47716) .
  3. Remove the drive belt tensioner. Refer to Drive Belt Tensioner Replacement - Accessory .
  4. Remove the drive belt idler pulley. Refer to Drive Belt Idler Pulley Replacement .
  5. Disconnect the radiator inlet hose from the water pump. Refer to Radiator Inlet Hose Replacement (L99)  or Radiator Inlet Hose Replacement (LS3) .
  6. Disconnect the radiator outlet hose from the water pump. Refer to Radiator Outlet Hose Replacement (LS3, L99) .
  7. Disconnect the heater inlet and outlet hose from the water pump. Refer to Heater Inlet and Outlet Hose Replacement (LS3, L99) .

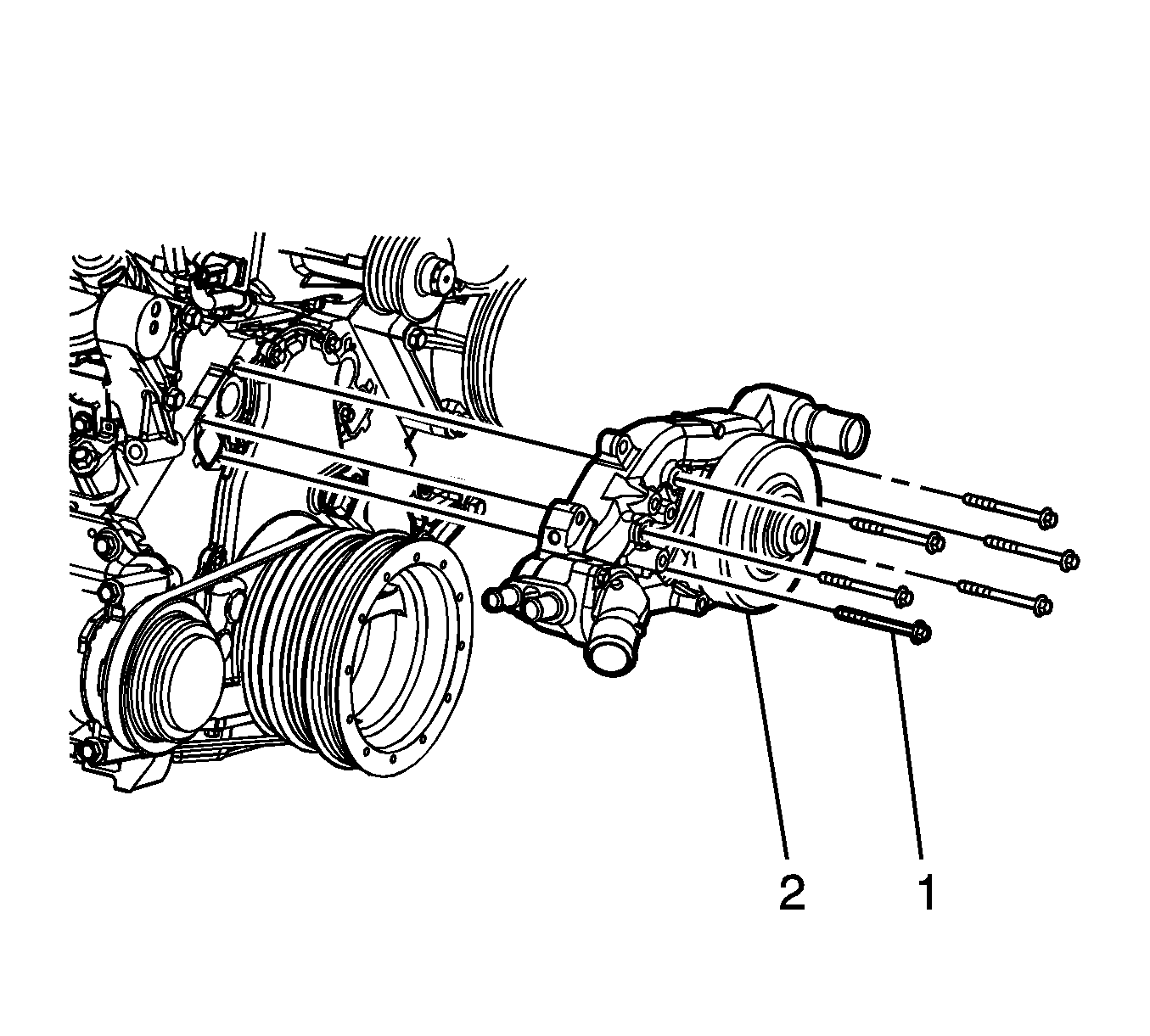

    8. Fig 1: Identifying Water Pump & Bolts
    GM2139067Courtesy of GENERAL MOTORS CORP.
  8. Remove the water pump to block bolts (1).
    9. NOTE: Always clean the water pump and engine block mating surfaces and discard the gaskets.
  9. Remove the water pump (2).
