Installation Procedure
WARNING: This page is about a different car, the 2010 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
- Install radiator inlet hose to the vehicle.

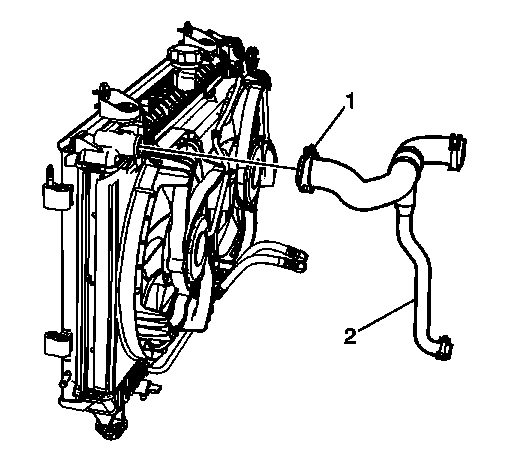

- Install the radiator inlet hose (2) to the radiator.
- Engage tension on the radiator inlet hose clamp (1) at the radiator using J 38185: Hose Clamp Pliers.

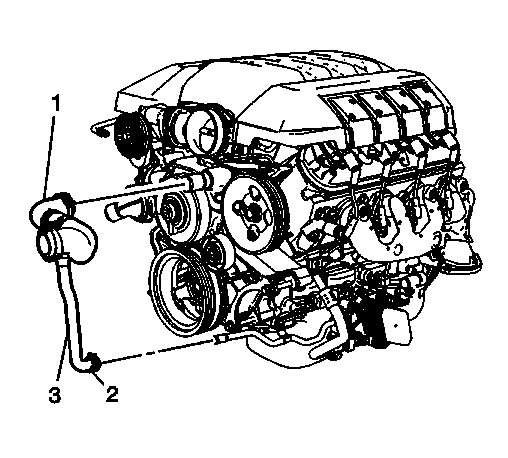

- Install the radiator inlet hose (3) to the engine.
- Engage tension on the radiator inlet hose clamp (1) at the engine using J 38185: Hose Clamp Pliers.
- Install the radiator inlet hose (3) to the engine oil cooler pipe.
- Engage tension on the radiator inlet hose clamp (2) at the engine oil cooler pipe using J 38185: Hose Clamp Pliers.
- Lower the vehicle
- Install the air cleaner resonator and outlet duct. Refer to Air Cleaner Resonator and Outlet Duct Replacement .
- Install the engine cover. Refer to Engine Cover Replacement .
- Fill the cooling system. Refer to Cooling System Draining and Filling (LS3, L99 Static Fill) or Cooling System Draining and Filling (GE 47716) .
CAUTION:
Make sure the reference marks on the hoses and the radiator are lined up. A twist on the hose would place strain on the radiator fitting which could cause the fitting to crack or break.
NOTE:
Lubricate the inside diameters of the hose with clean coolant prior to installation.
