Installation Procedure

WARNING: This page is about a different car, the 2010 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install radiator inlet hose to the vehicle.

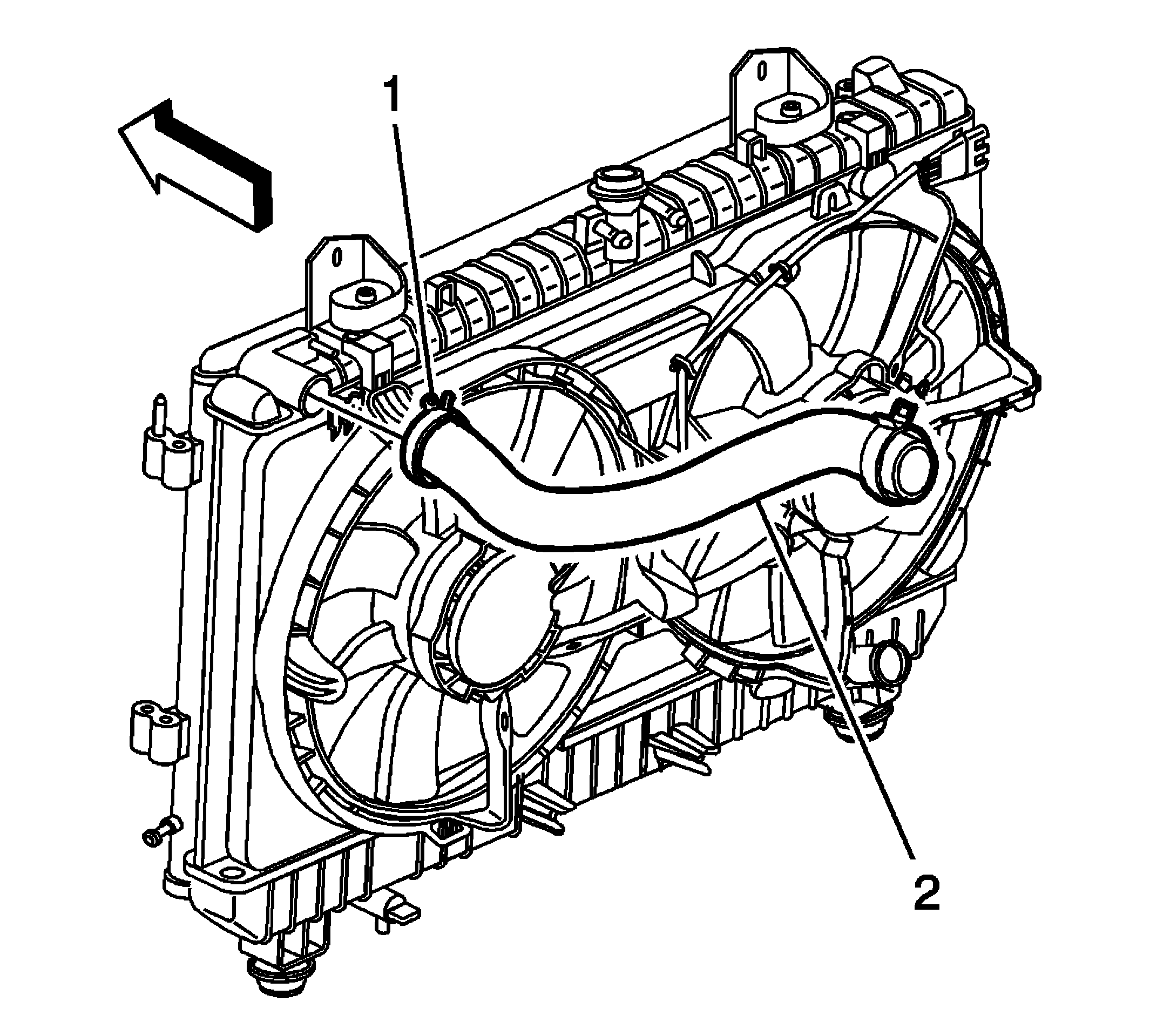

    2. Fig 1: Radiator Inlet Hose & Clamp At Radiator
    GM2185095Courtesy of GENERAL MOTORS CORP.
    CAUTION: Make sure the reference marks on the hoses and the radiator are lined up. A twist on the hose would place strain on the radiator fitting which could cause the fitting to crack or break.
    NOTE: Lubricate the inside diameters of the hose with clean coolant prior to installation.
  2. Install the radiator inlet hose (2) to the radiator.
  3. Engage tension on the radiator inlet hose clamp (1) at the radiator using J 38185:  Hose Clamp Pliers.

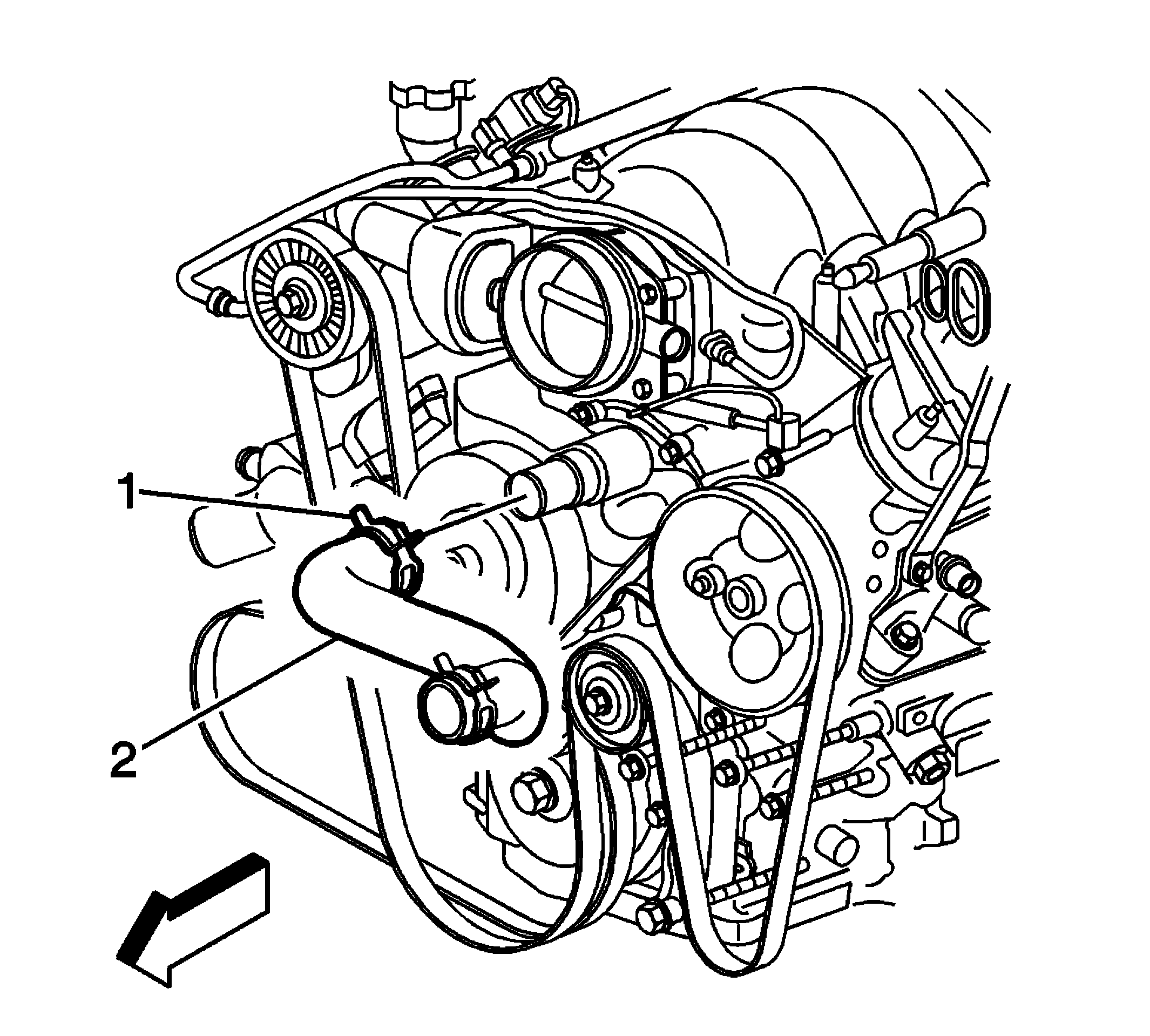

    4. Fig 2: Radiator Inlet Hose & Clamp At Engine
    GM2185105Courtesy of GENERAL MOTORS CORP.
  4. Install the radiator inlet hose (2) to the engine.
  5. Engage tension on the radiator inlet hose clamp (1) at the engine using J 38185:  Hose Clamp Pliers.
  6. Install the air cleaner resonator and outlet duct. Refer to Air Cleaner Resonator and Outlet Duct Replacement .
  7. Install the engine cover. Refer to Engine Cover Replacement .
  8. Fill the cooling system. Refer to Cooling System Draining and Filling (LS3, L99 Static Fill)  or Cooling System Draining and Filling (GE 47716) .
