Engine Oil Cooler Replacement

WARNING: This page is about a different car, the 2010 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

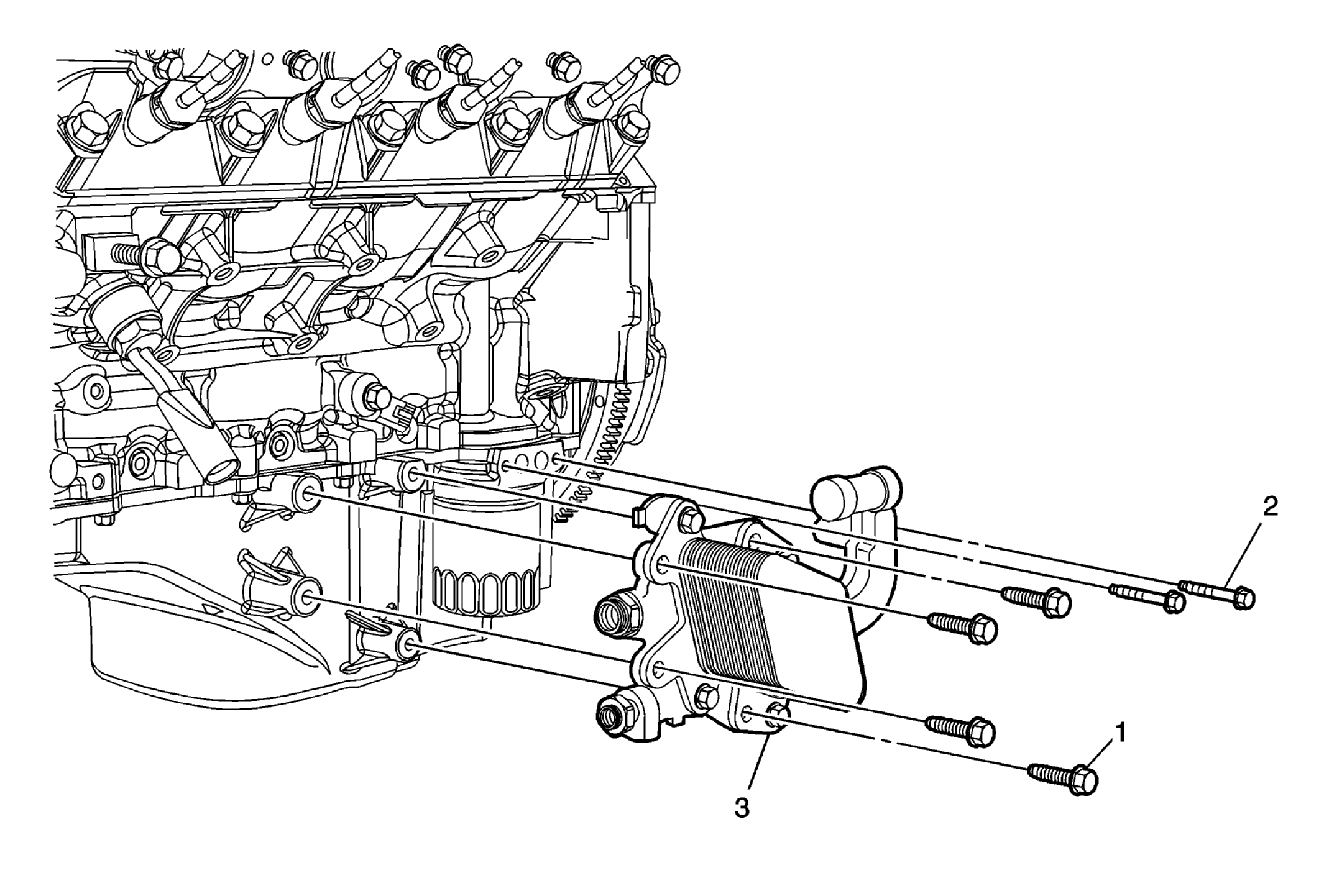

Fig 1: Engine Oil Cooler

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove engine oil cooler coolant inlet hose. Refer to Engine Oil Cooler Coolant Inlet Hose Replacement (LS3) . Remove engine oil cooler pipe. Refer to Engine Oil Cooler Pipe Replacement (LS3) .
1	Engine Oil Cooler Fastener (Qty: 2) CAUTION: Refer to Component Fastener Tightening Caution . Tighten: 10 N.m (89 lb in)
2	Engine Oil Cooler Fastener (Qty: 5) Tighten: 25 N.m (18 lb ft)
3	Engine Oil Cooler Procedure Transfer components as necessary. Ensure the full oil level after installation.
