Engine Coolant Fan Replacement
WARNING: This page is about a different car, the 2010 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

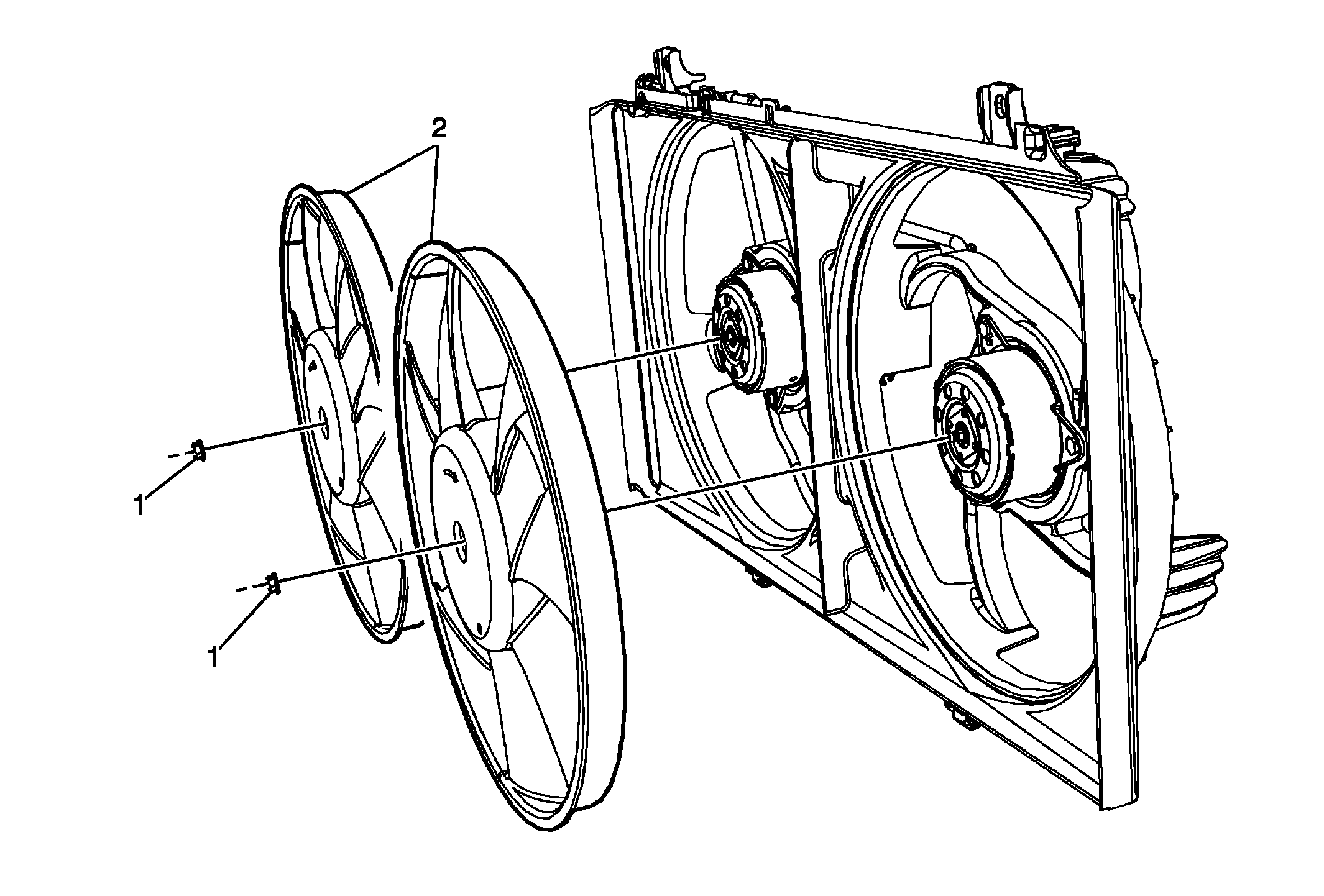

| Callout | Component Name |
|---|---|
| Preliminary Procedures: Remove engine coolant fan and shroud. Refer to Engine Coolant Fan Shroud Replacement (LLT) or Engine Coolant Fan Shroud Replacement (LS3, L99) |
|
| 1 | Engine Coolant Fan Nuts (Qty 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 6 N.m (53 lb in) |
| 2 | Engine Coolant Fan |
