Object Detection Schematics

WARNING: This page is about a different car, the 2010 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

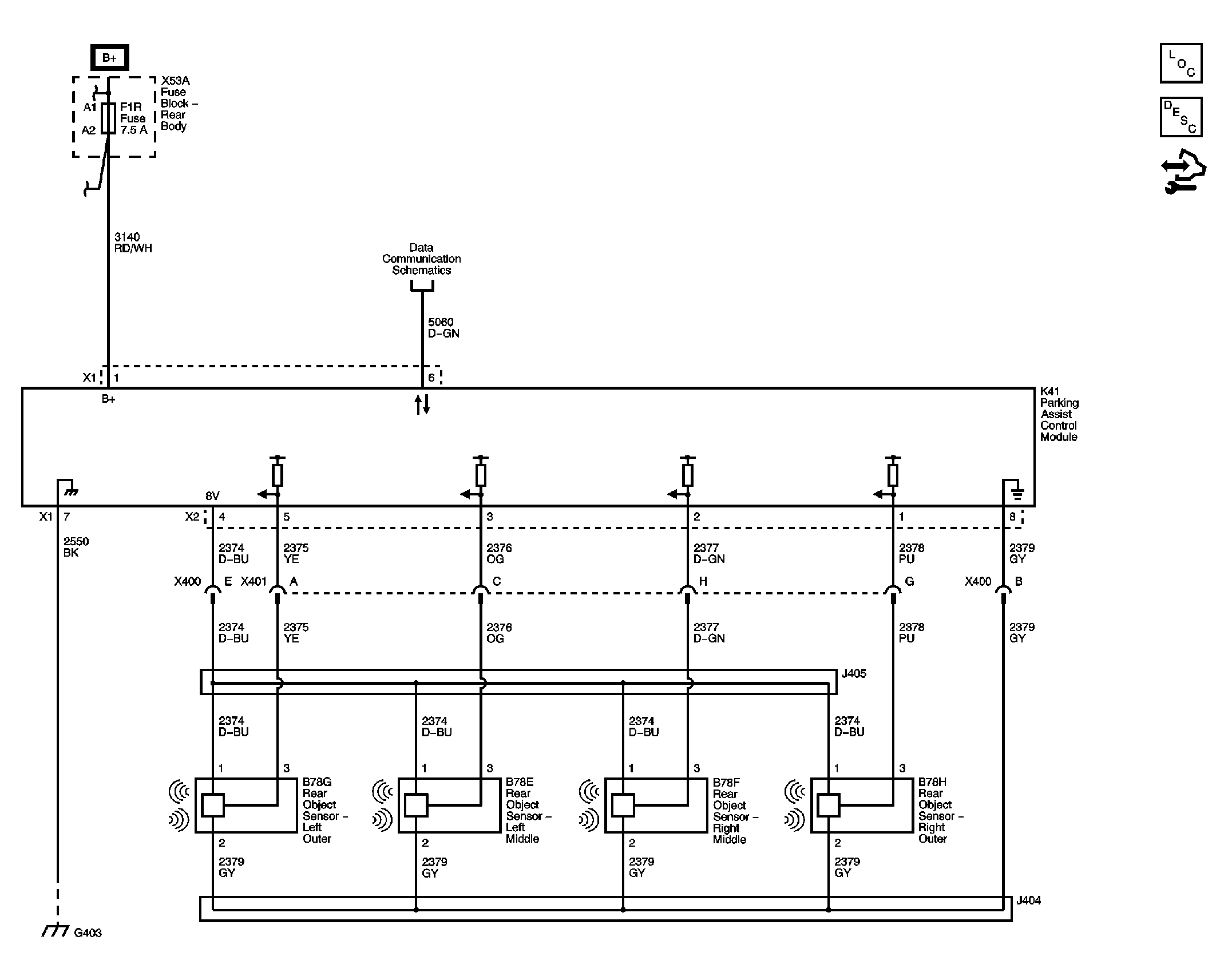

Fig 1: Object Detection
GM2207671Courtesy of GENERAL MOTORS CORP.
