Body Control System Schematics

WARNING: This page is about a different car, the 2010 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

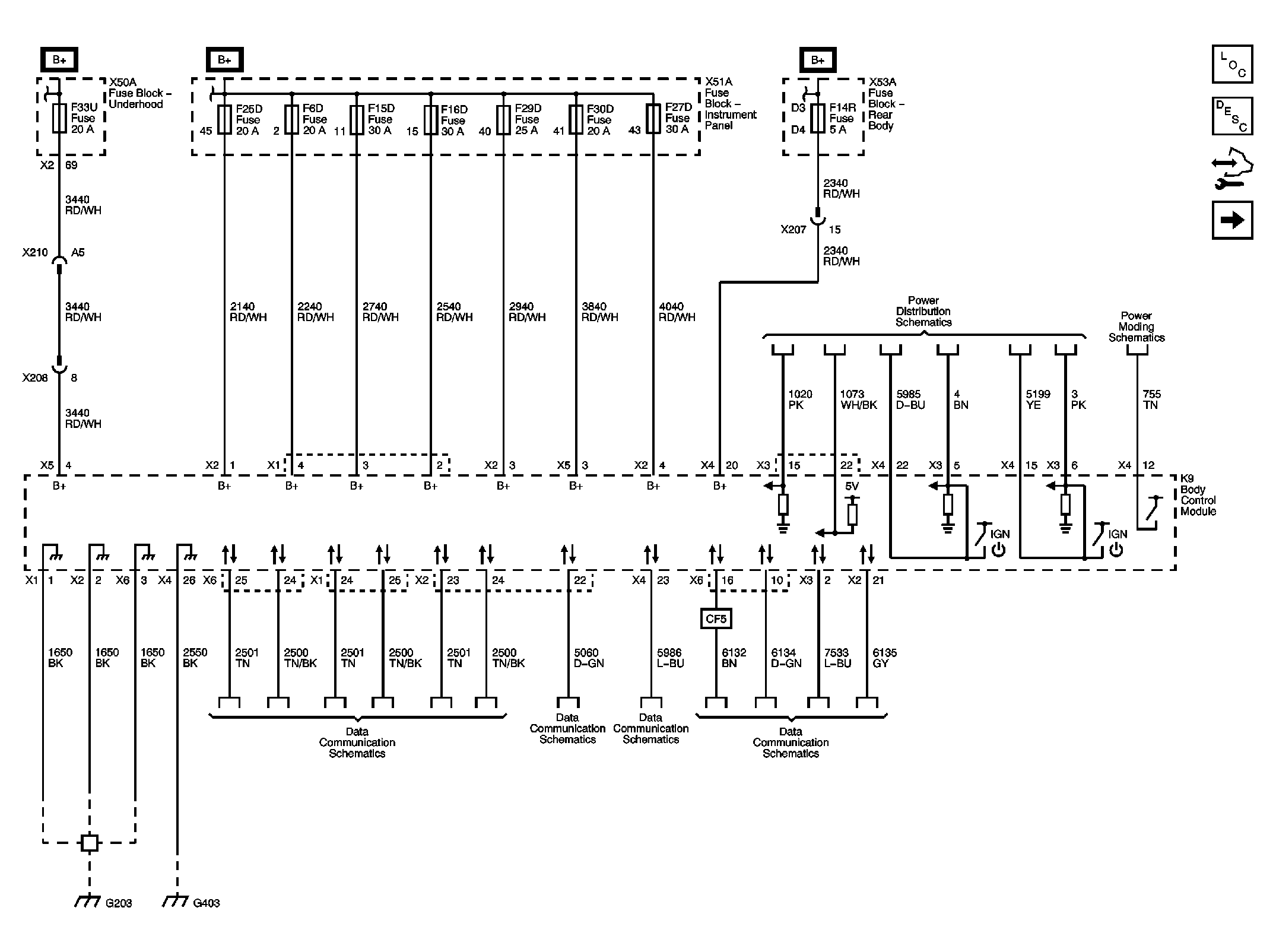

Fig 1: Module Power, Ground, Data Communications

Courtesy of GENERAL MOTORS CORP.

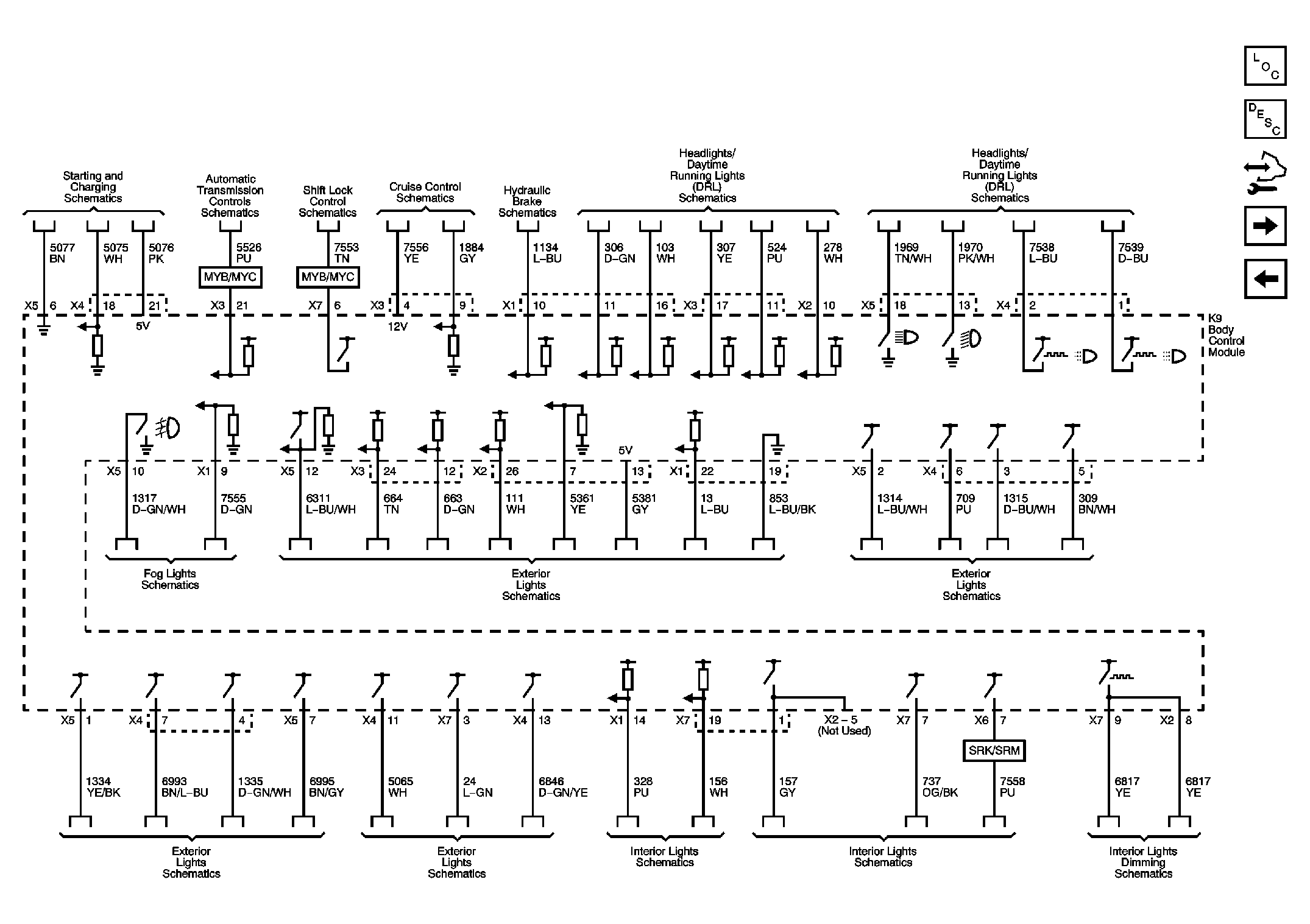

Fig 2: References 1 of 2

Courtesy of GENERAL MOTORS CORP.

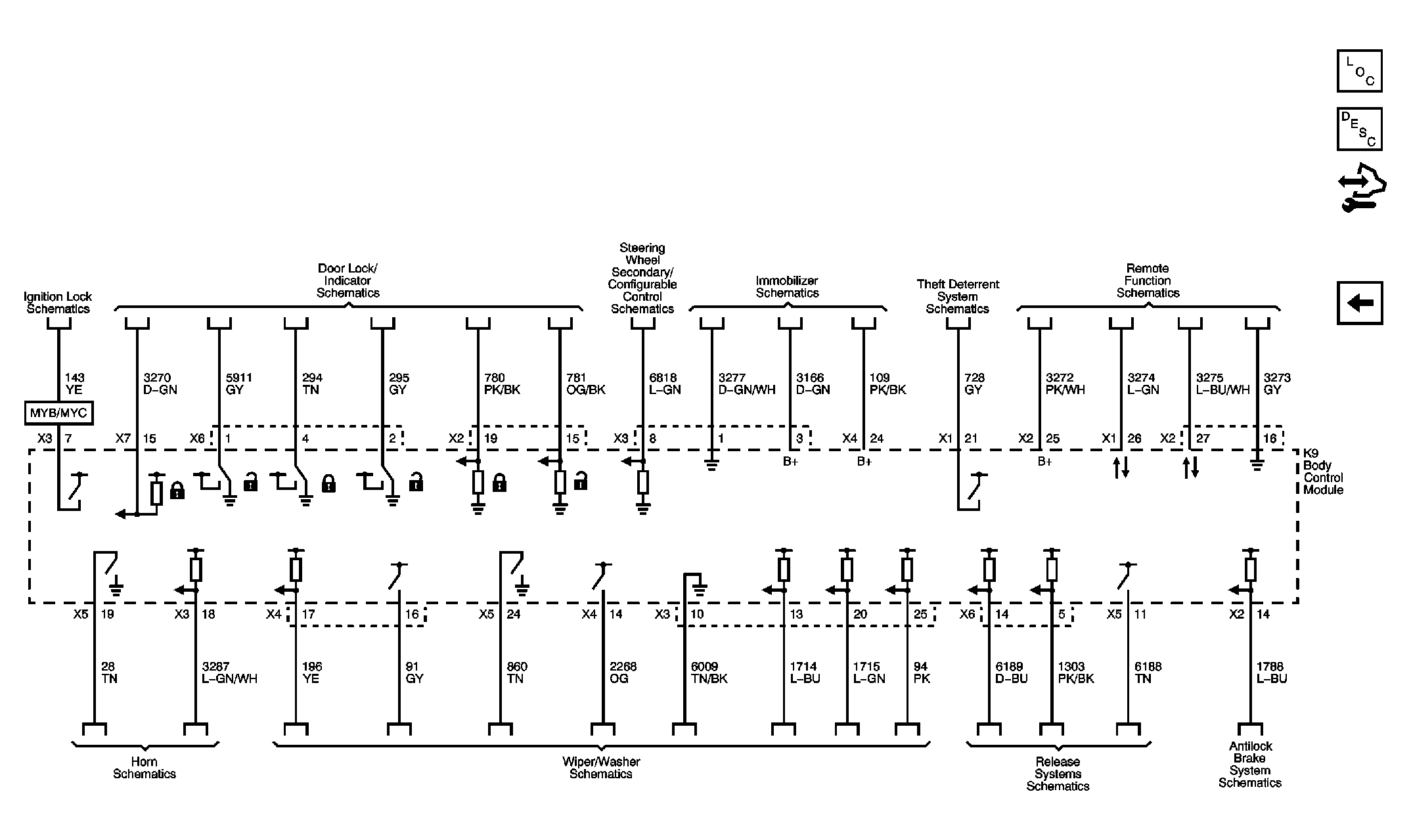

Fig 3: References 2 of 2

Courtesy of GENERAL MOTORS CORP.
