Rear Brake Backing Plate Replacement

WARNING: This page is about a different car, the 2010 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

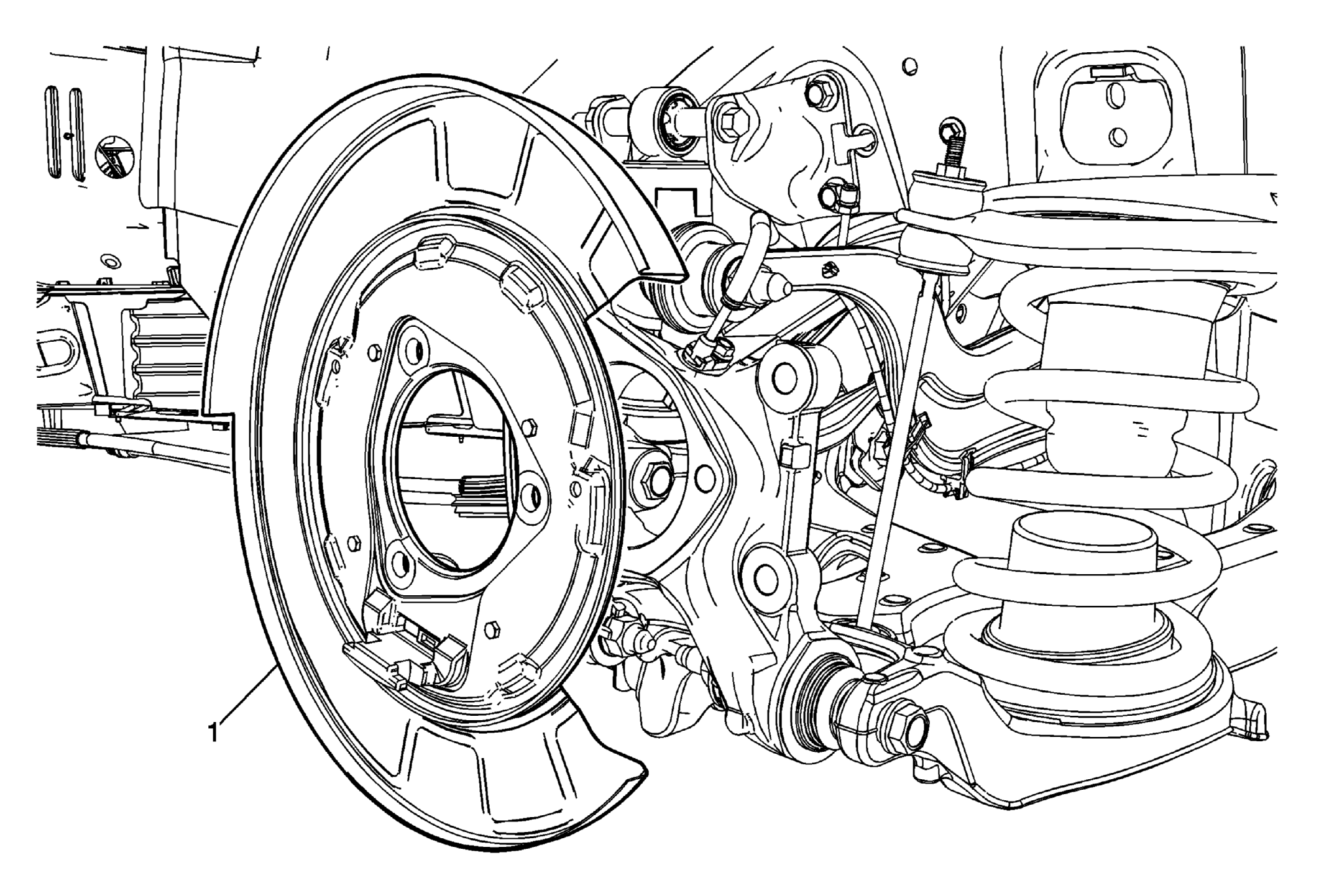

Fig 1: Rear Brake Backing Plate

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
WARNING: Refer to Brake Dust Warning . Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation . Remove the park brake shoes. Refer to Parking Brake Shoe Replacement . Remove the park brake actuator. Refer to Parking Brake Actuator Replacement . Remove the wheel hub and bearing assembly. Refer to Rear Wheel Bearing and Hub Replacement .
1	Disc Brake Backing Plate

Callout

Component Name

WARNING: Refer to Brake Dust Warning .

Preliminary Procedures

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
Remove the park brake shoes. Refer to Parking Brake Shoe Replacement .
Remove the park brake actuator. Refer to Parking Brake Actuator Replacement .
Remove the wheel hub and bearing assembly. Refer to Rear Wheel Bearing and Hub Replacement .

Disc Brake Backing Plate
