Installation Procedure

WARNING: This page is about a different car, the 2010 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

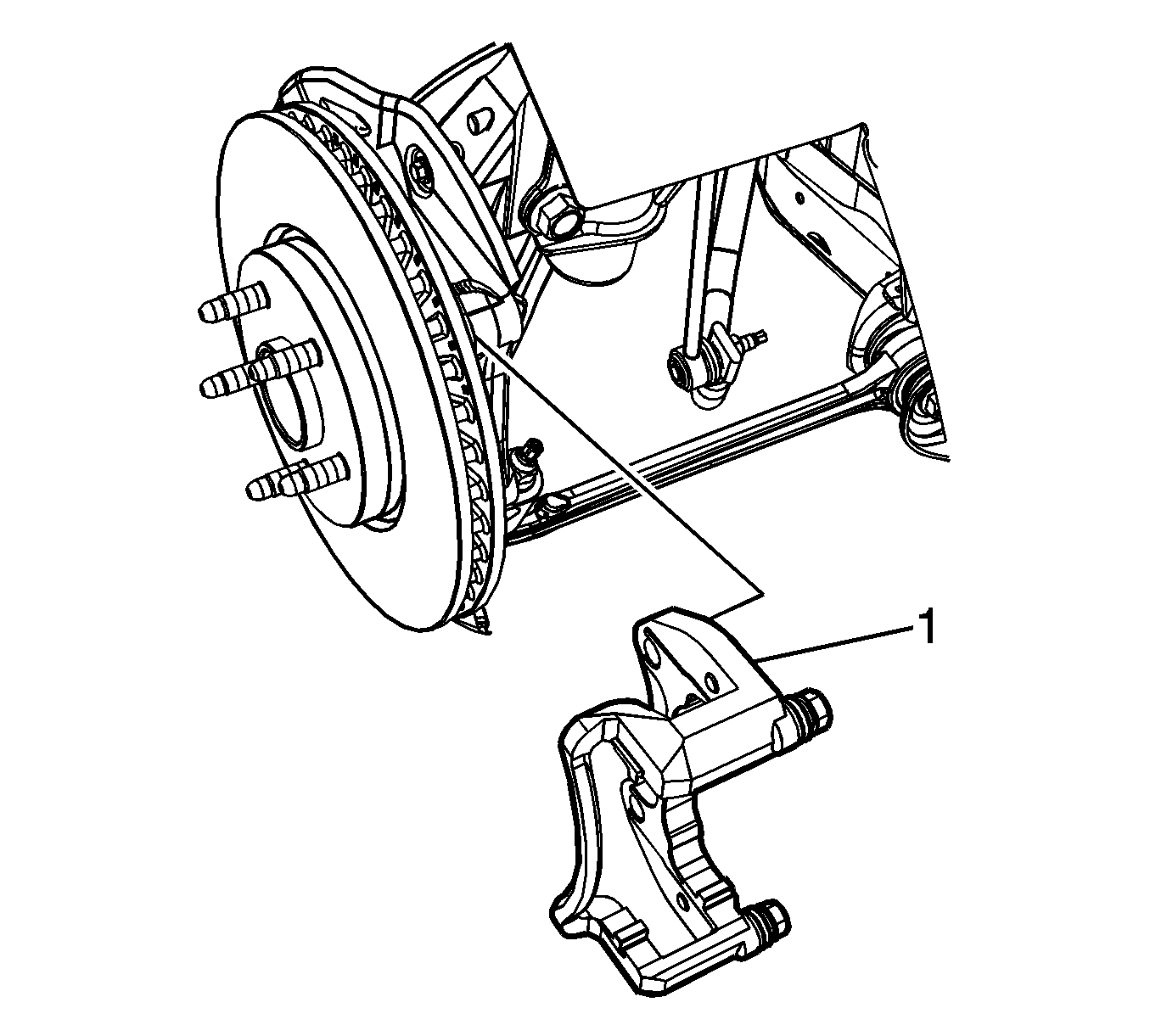

Fig 1: Disc Brake Caliper Bracket

Courtesy of GENERAL MOTORS CORP.

Install the disc brake caliper bracket (1).

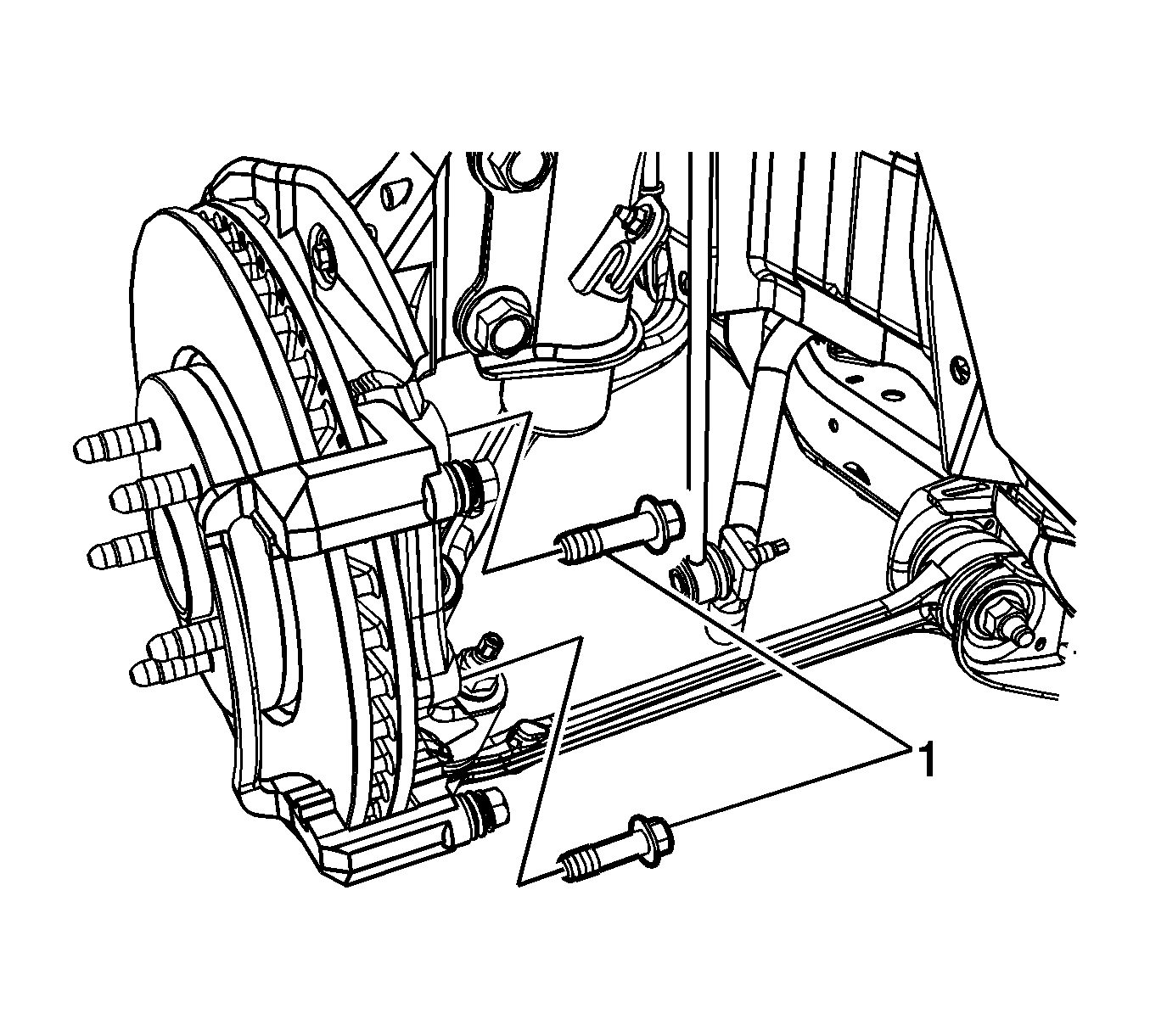

Fig 2: Disc Brake Caliper Bracket Bolts

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fastener Caution .

NOTE: The brake caliper bracket bolts must be replaced any time they are removed.

Install 2 new disc brake caliper bracket bolts (1) and tighten to 40 N.m (30 lb ft) + 90 degrees.

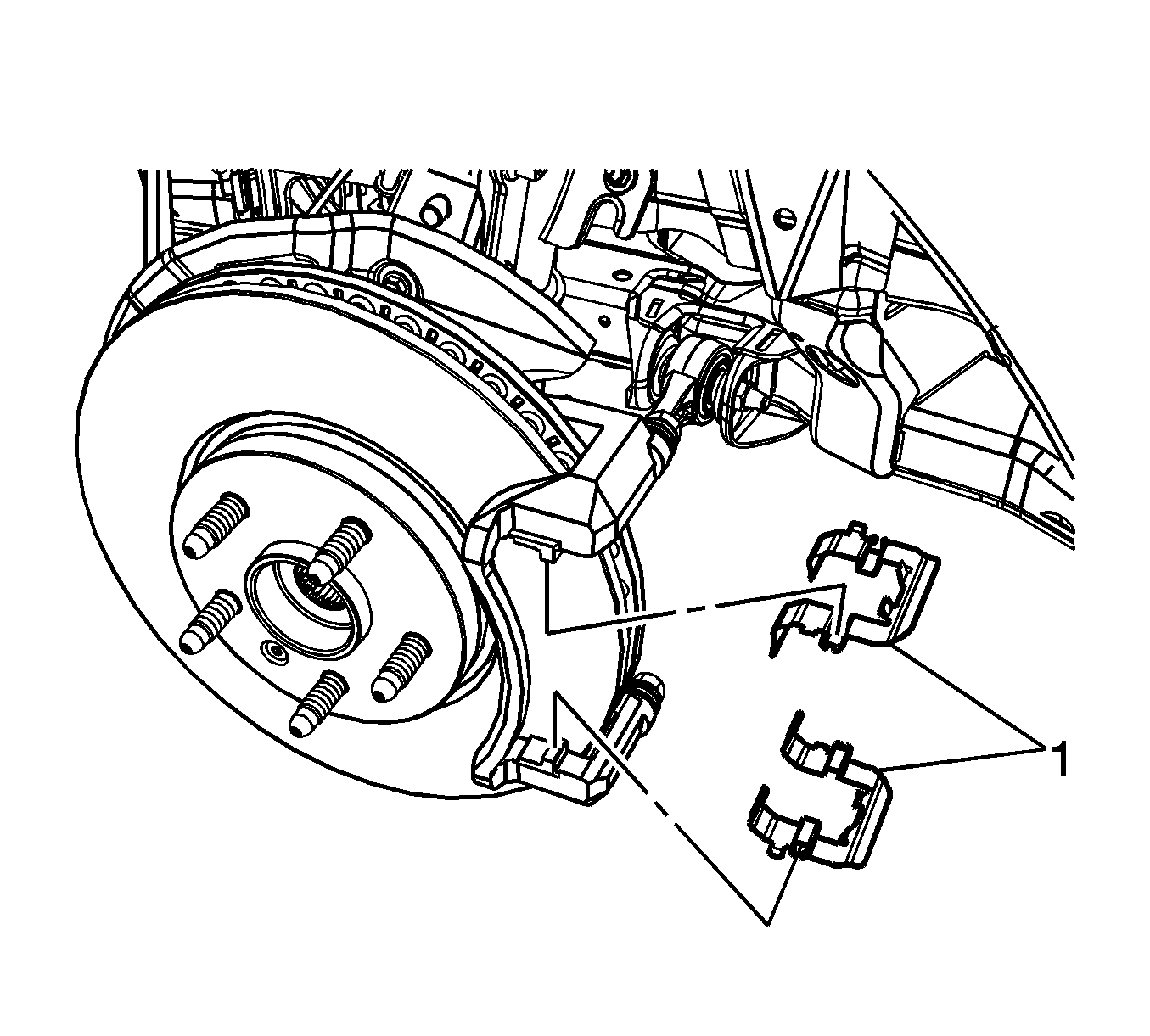

Fig 3: Brake Pad Springs

Courtesy of GENERAL MOTORS CORP.

Install the disc brake pad springs (1).

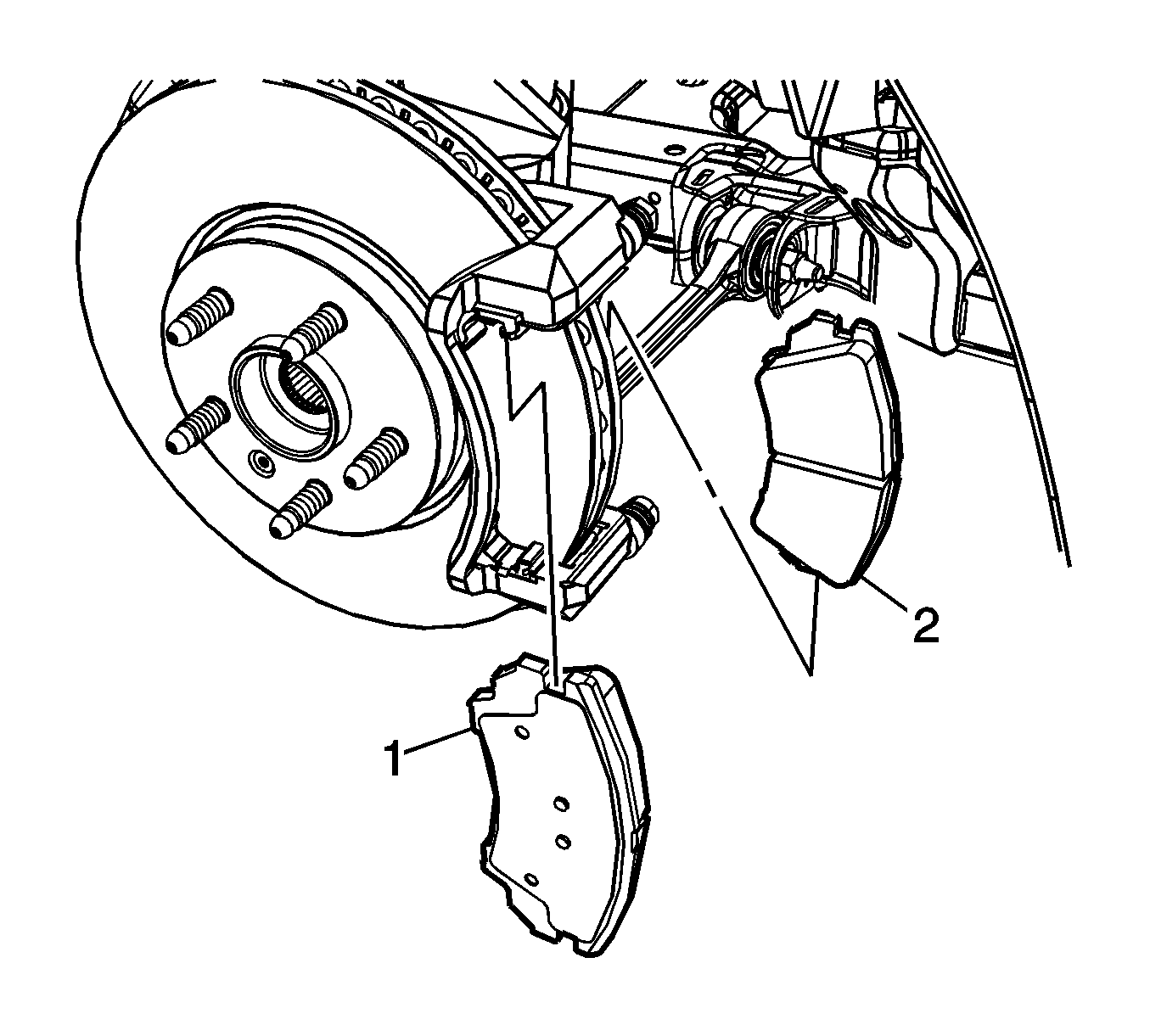

Fig 4: Brake Pads

Courtesy of GENERAL MOTORS CORP.

Install the outer disc brake pad (1).
Install the inner disc brake pad (2).

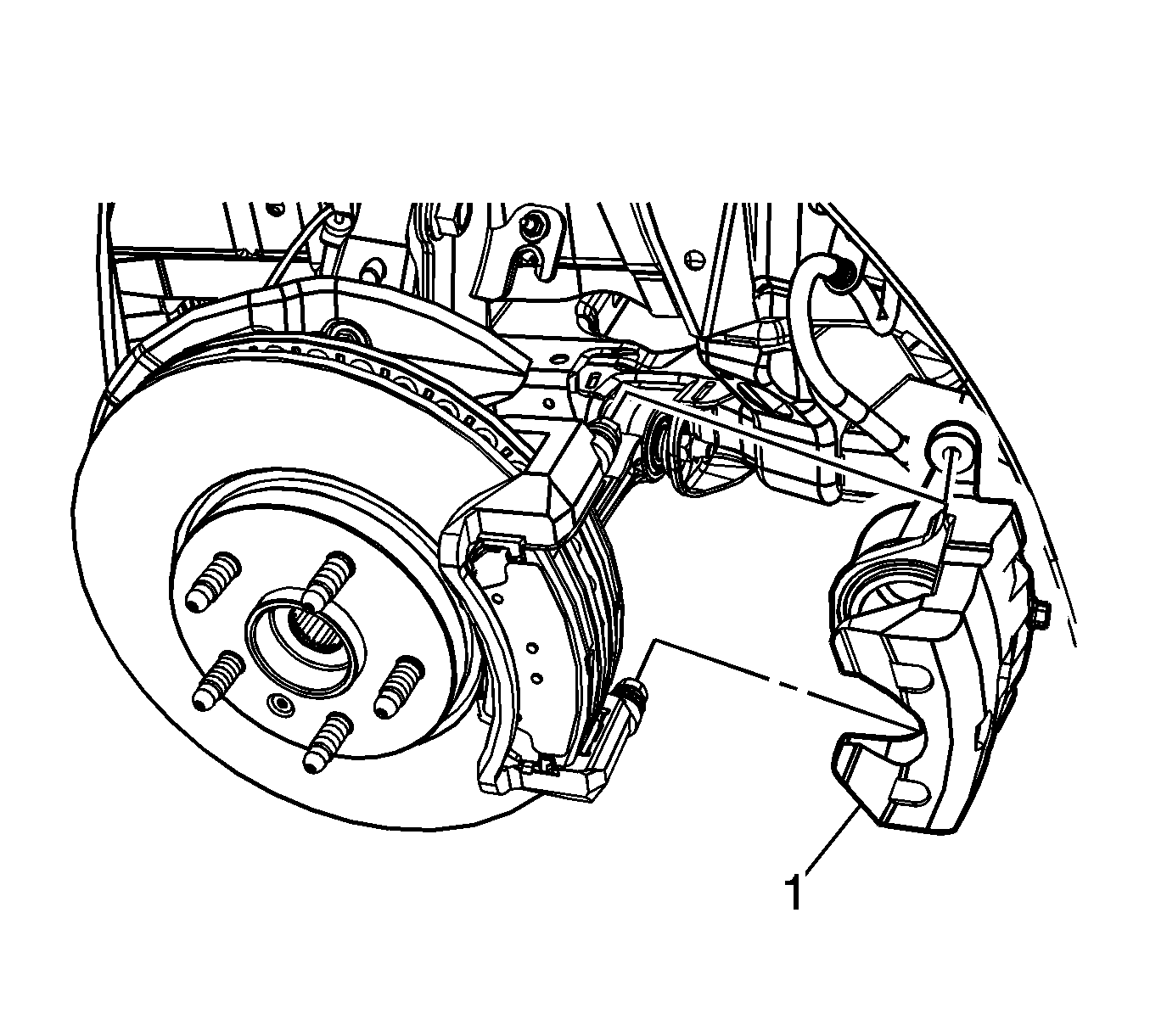

Fig 5: Brake Caliper

Courtesy of GENERAL MOTORS CORP.

Install the disc brake caliper (1).

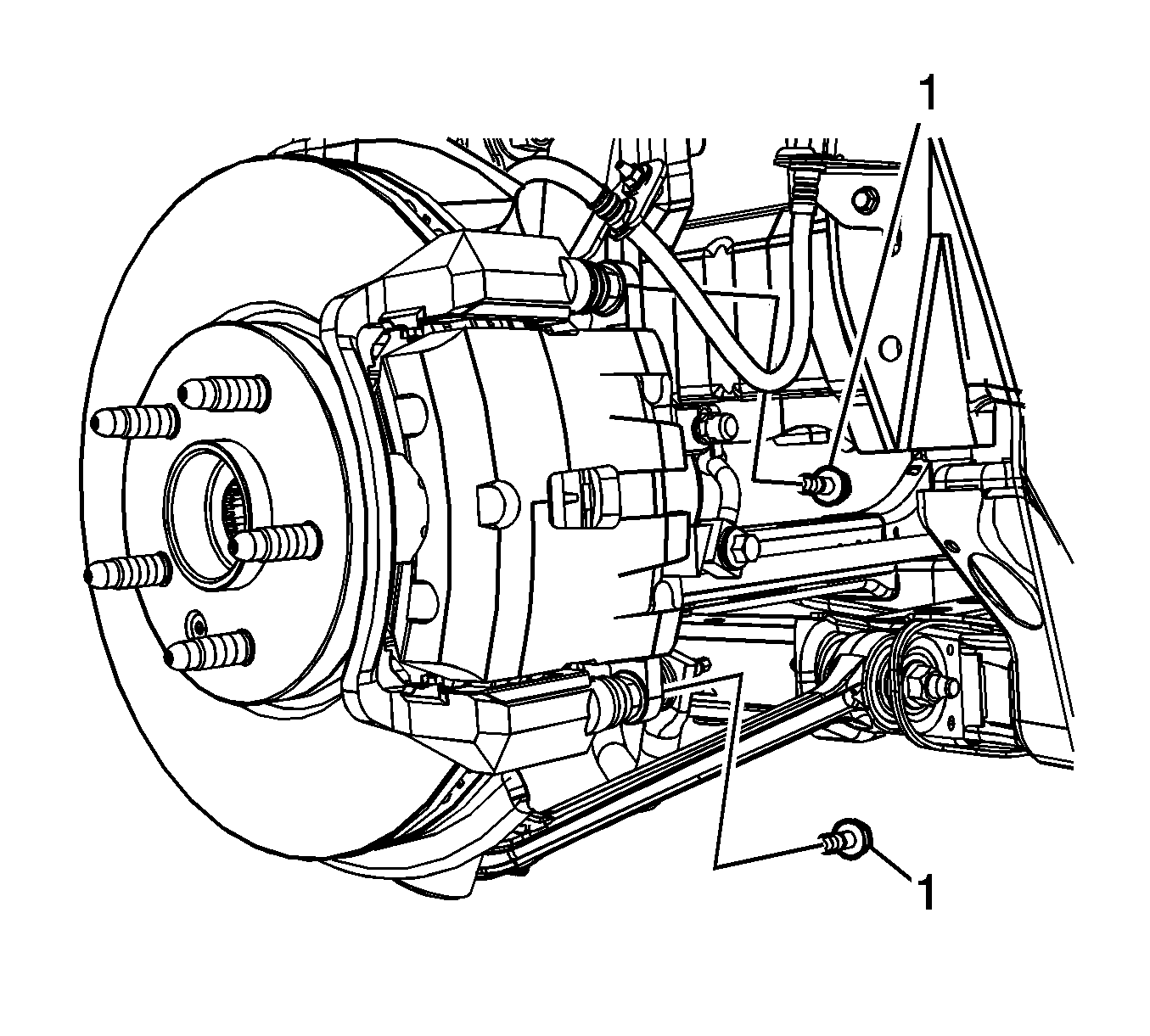

Fig 6: Brake Caliper Guide Pin Bolts

Courtesy of GENERAL MOTORS CORP.

NOTE: The brake caliper guide pin bolts must be replaced any time they are removed.

Using a backup wrench on the brake caliper guide pins, install 2 new brake caliper guide pin bolts (1) and tighten to 27 N.m (20 lb ft).
Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
