Installation Procedure

WARNING: This page is about a different car, the 2010 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

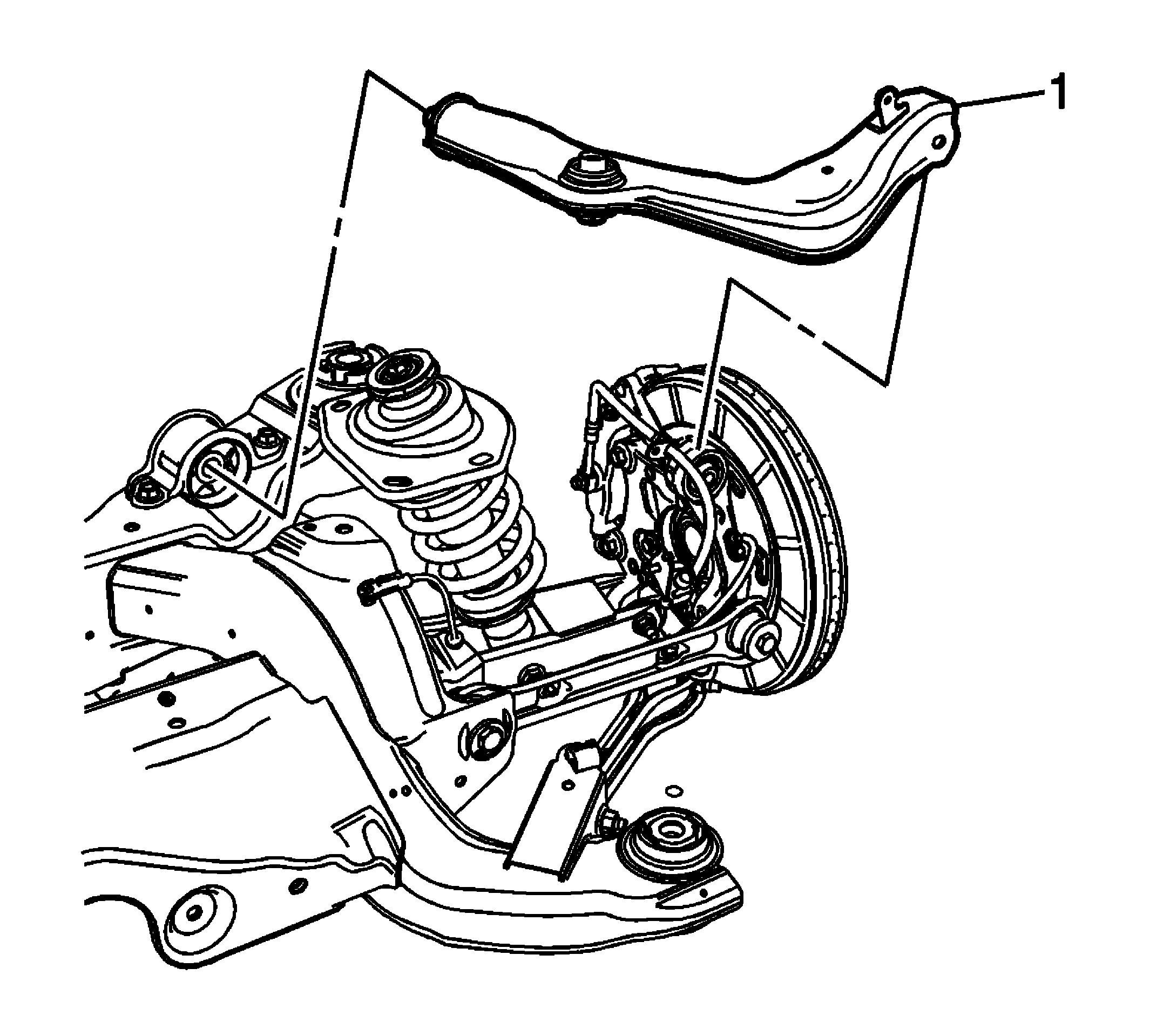

    Fig 1: Upper Control Arm
    GM2201335Courtesy of GENERAL MOTORS CORP.
  1. Position the upper control arm (1) in the frame and on the knuckle.

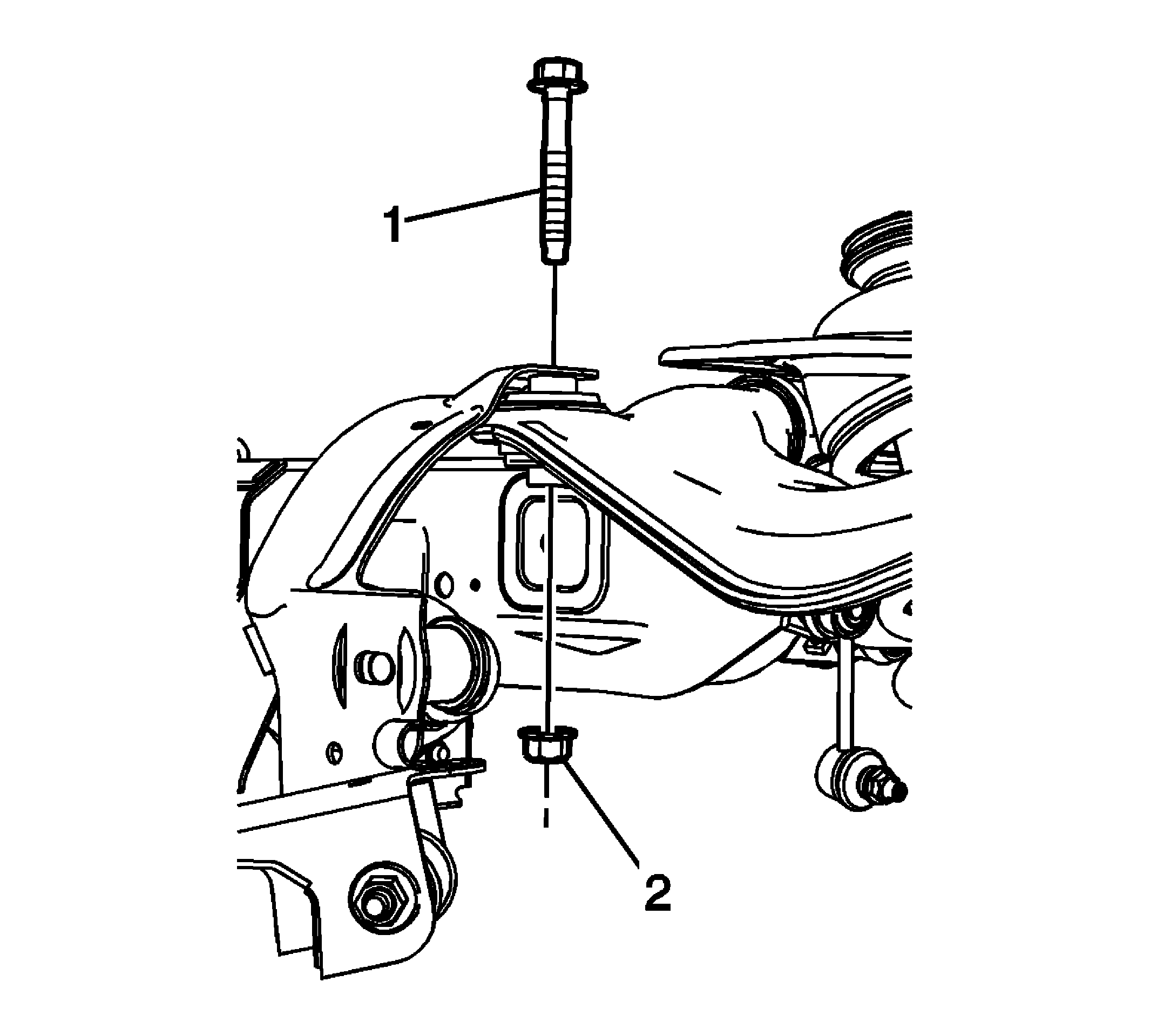

    2. Fig 2: Upper Control Arm Bolt & Nut From Frame
    GM2193525Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  2. Install the upper control arm bolt (1) and the nut (2) and tighten to 80 N.m (59 lb ft) plus 120 degrees.

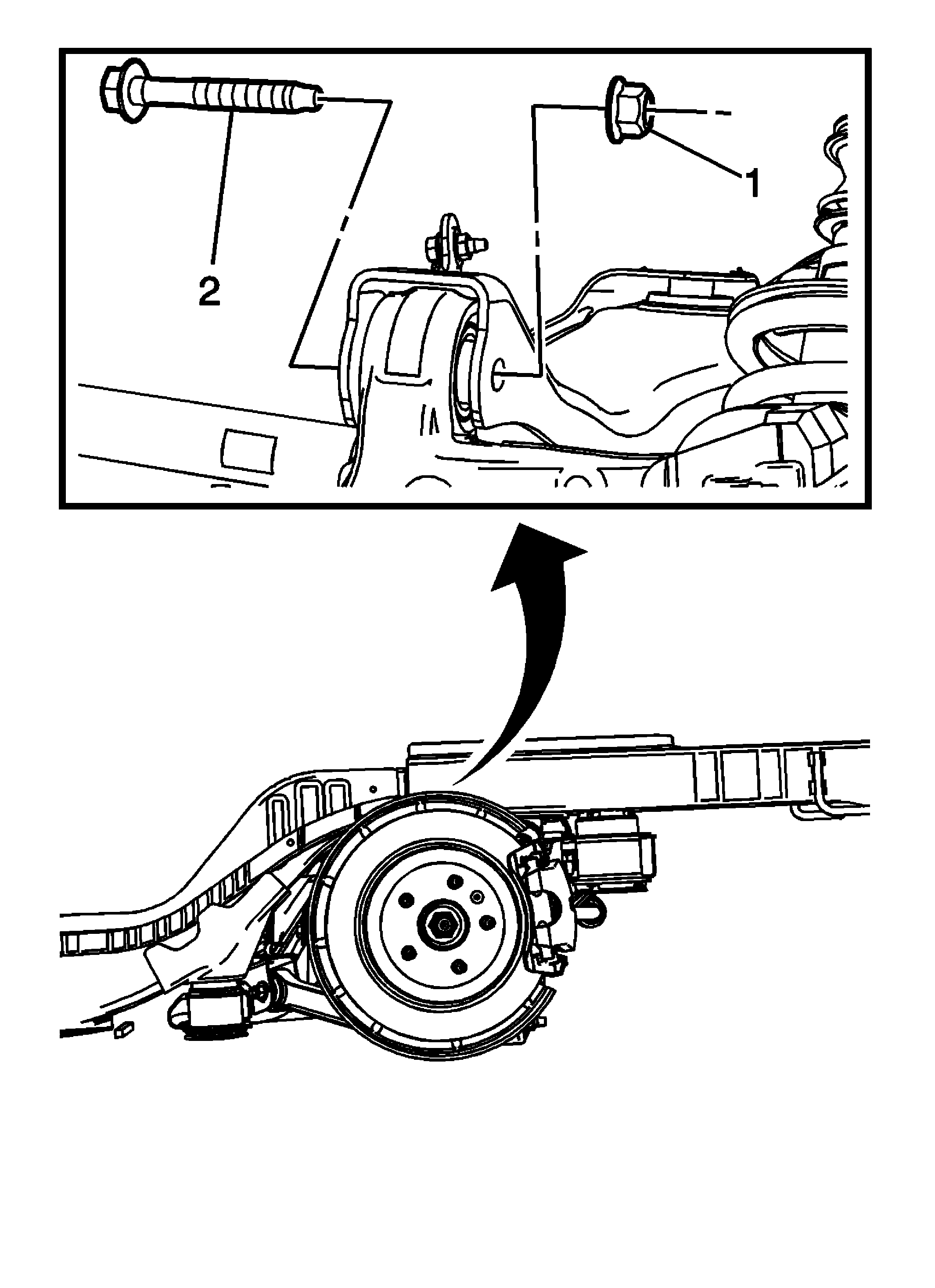

    3. Fig 3: Upper Control Arm Bolt & Nut From Knuckle
    GM2193527Courtesy of GENERAL MOTORS CORP.
  3. Install the upper control arm bolt (2) and the nut (1) and tighten to 60 N.m (44 lb ft) plus 90 degrees.

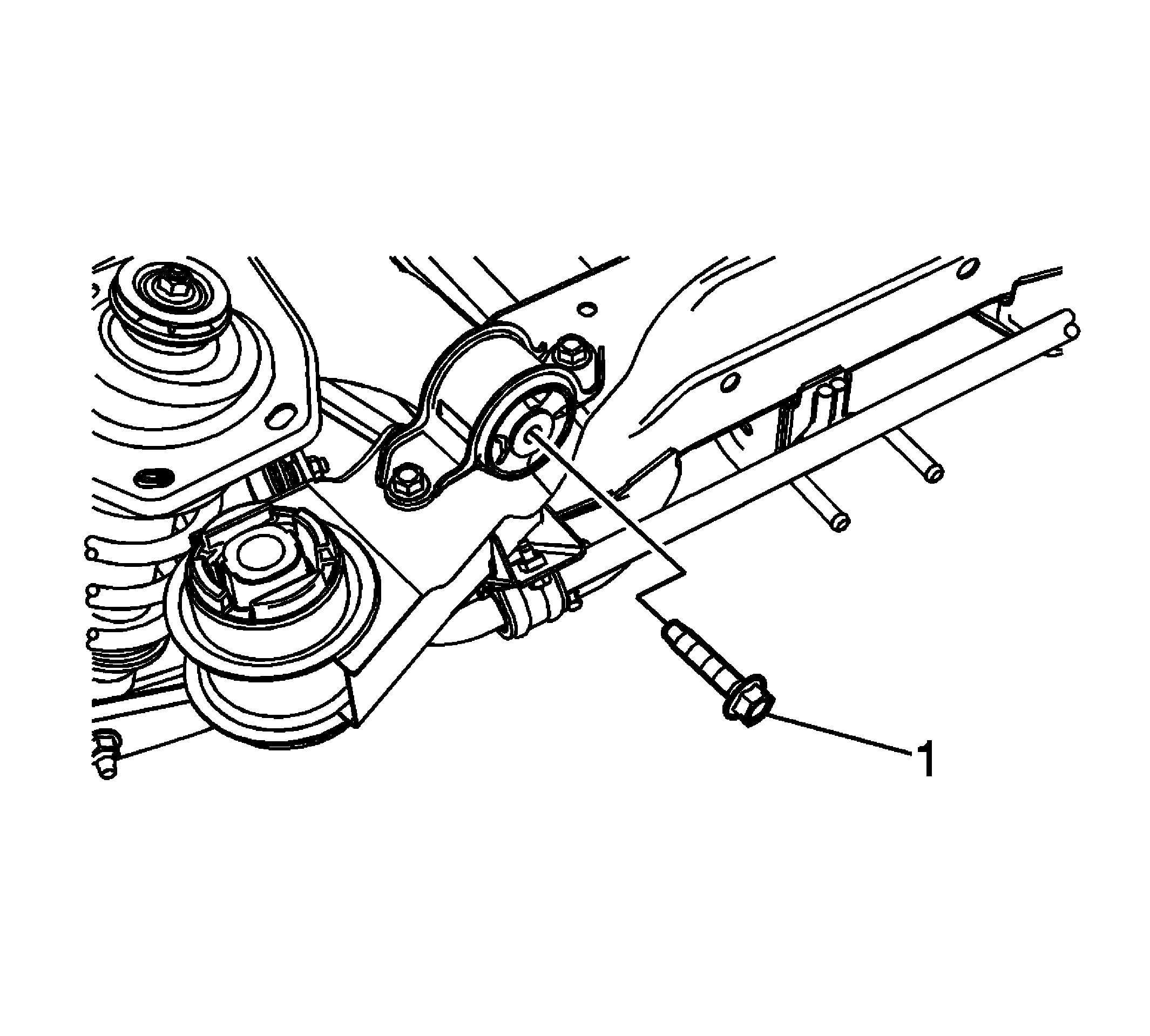

    4. Fig 4: Upper Rear Control Arm Bushing Bolt
    GM2201313Courtesy of GENERAL MOTORS CORP.
  4. Install the upper control arm bushing bolt (1) and tighten to 50 N.m (37 lb ft) plus 120 degrees.
  5. Install the rear brake hose on the upper control arm. Refer to Rear Brake Hose Replacement (LLT) or Rear Brake Hose Replacement (LS3, L99) .
  6. Remove the support from the knuckle.
  7. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  8. Lower the vehicle.
  9. Check and adjust the rear wheel alignment, if needed. Refer to Rear Camber Adjustment .
