Installation Procedure

WARNING: This page is about a different car, the 2010 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

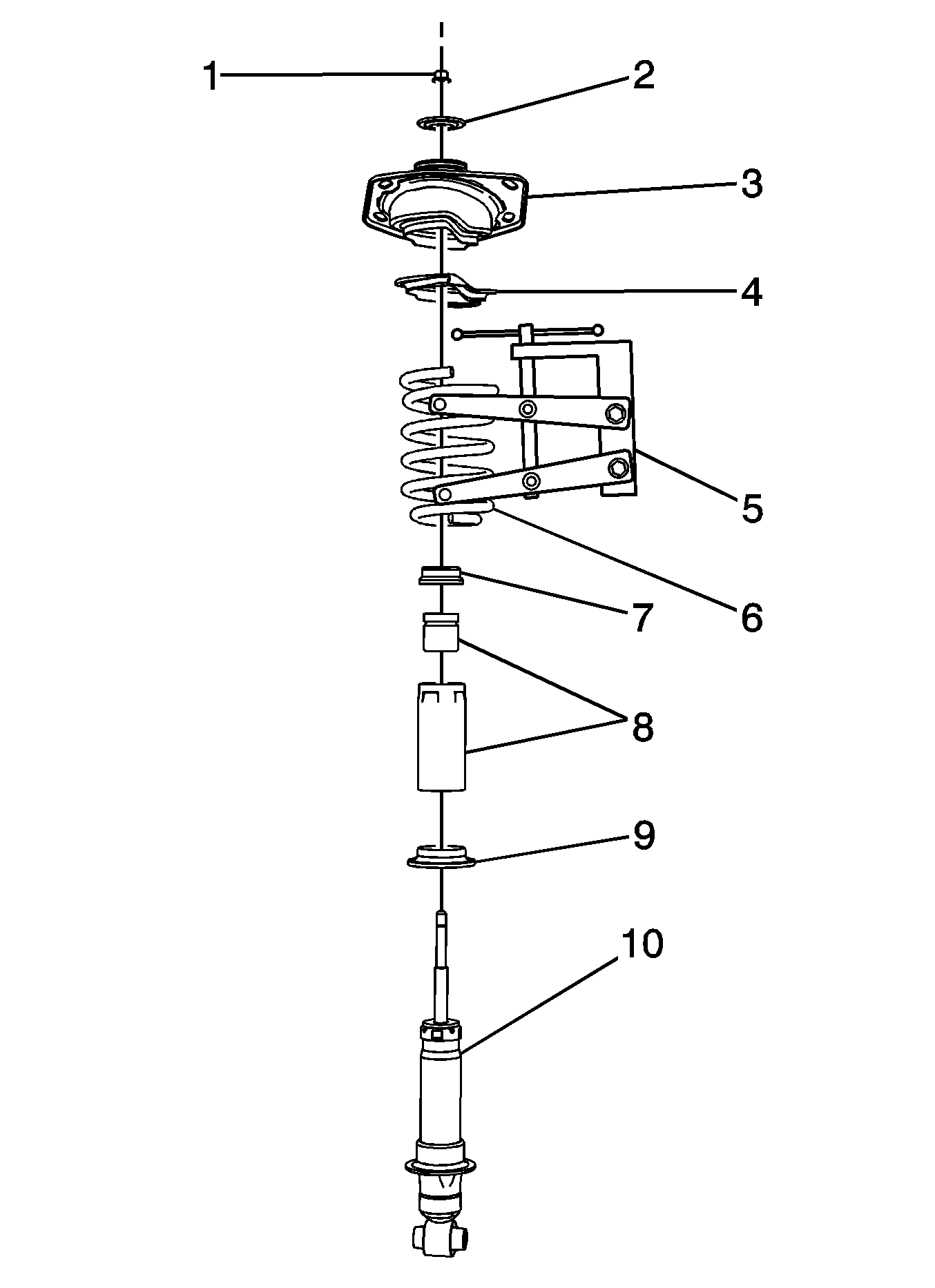

    Fig 1: Removing/Installing Rear Shock Absorber Components
    GM2201514Courtesy of GENERAL MOTORS CORP.
    NOTE: DO NOT tighten the nut for the rear shock absorber until the spring is properly alignment with the reference mark.
  1. Using the CH 48845:  compressor (5) install the rear shock absorber (10), lower insulator (9), shield, rear shock absorber bumper (8), rear shock absorber bumper seat (7), spring (6), rear spring upper insulator (4), rear shock absorber upper plate (3), retainer (2), and the nut (1).

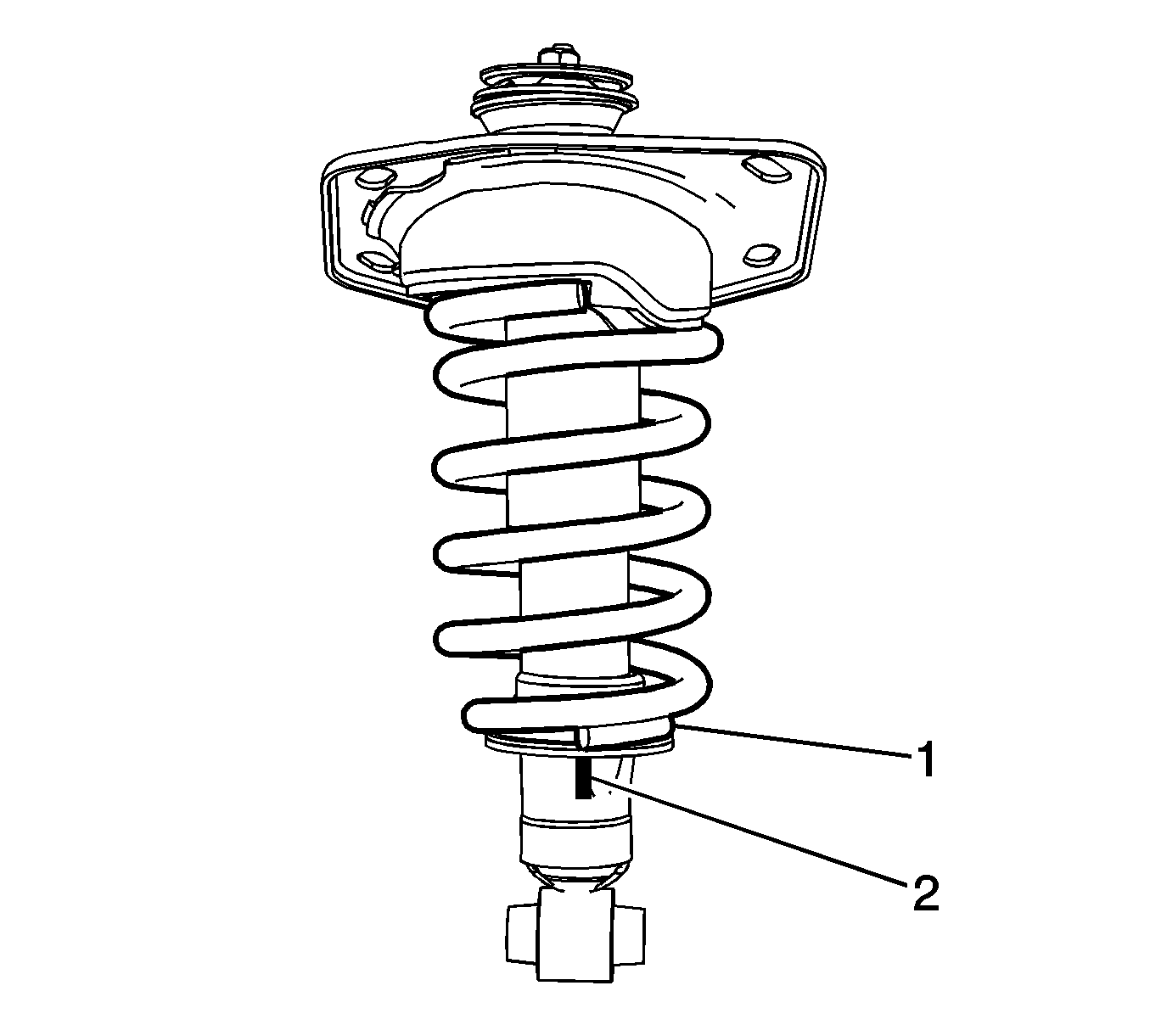

    2. Fig 2: Mark On Rear Spring
    GM2201497Courtesy of GENERAL MOTORS CORP.
  2. Align the spring (1) to the reference mark on the shock absorber (2).
    3. CAUTION: Refer to Fastener Caution .
  3. Using the appropriate tool to hold the shock absorber shaft, tighten the rear shock absorber nut to 45 N.m (33 lb ft).
  4. Install the rear shock absorber in the vehicle. Refer to Shock Absorber Replacement .
