Installation Procedure

WARNING: This page is about a different car, the 2010 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

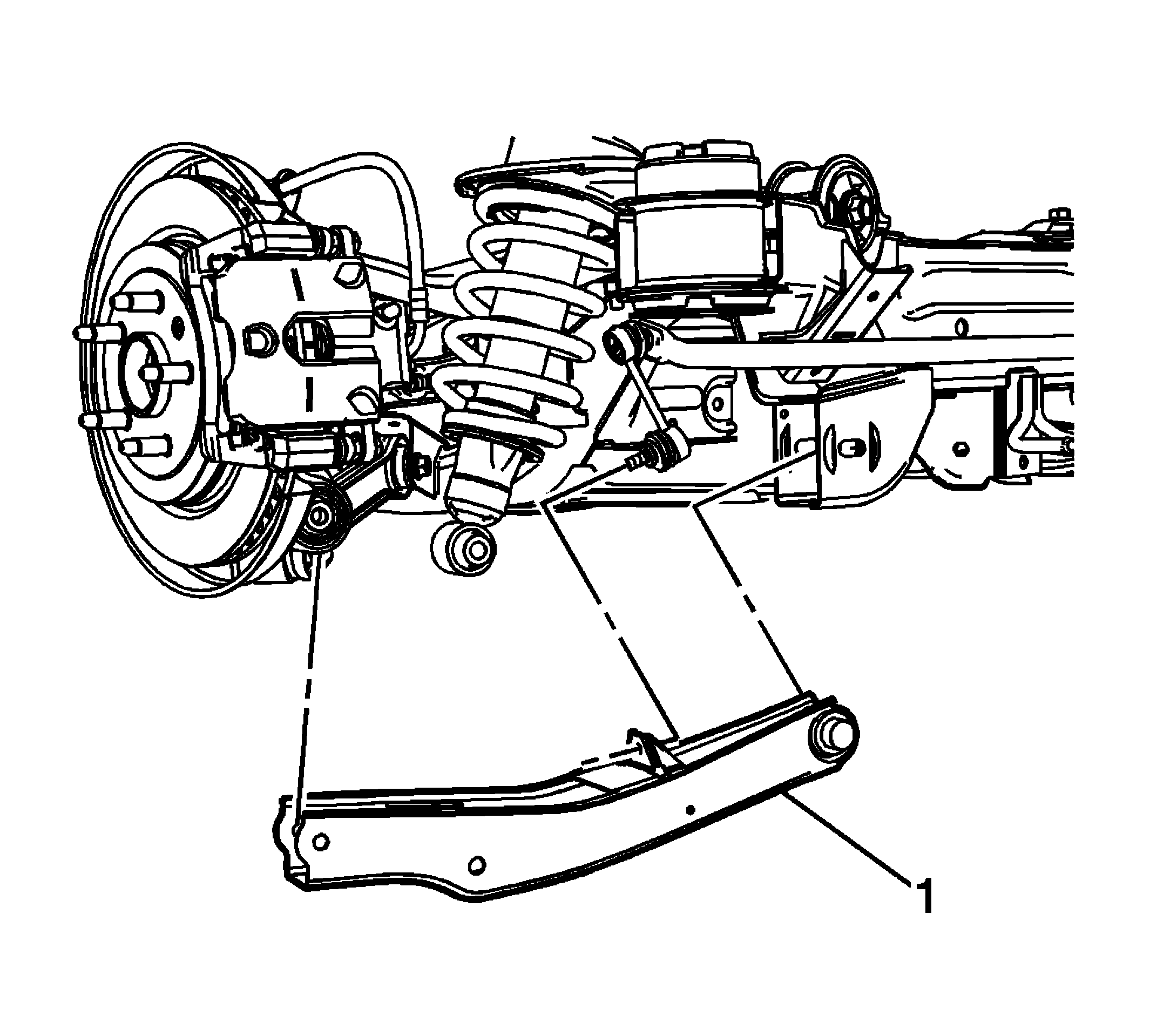

    Fig 1: Rear Lower Control Arm
    GM2193373Courtesy of GENERAL MOTORS CORP.
  1. Position the rear lower control arm (1) in the rear cradle and knuckle.

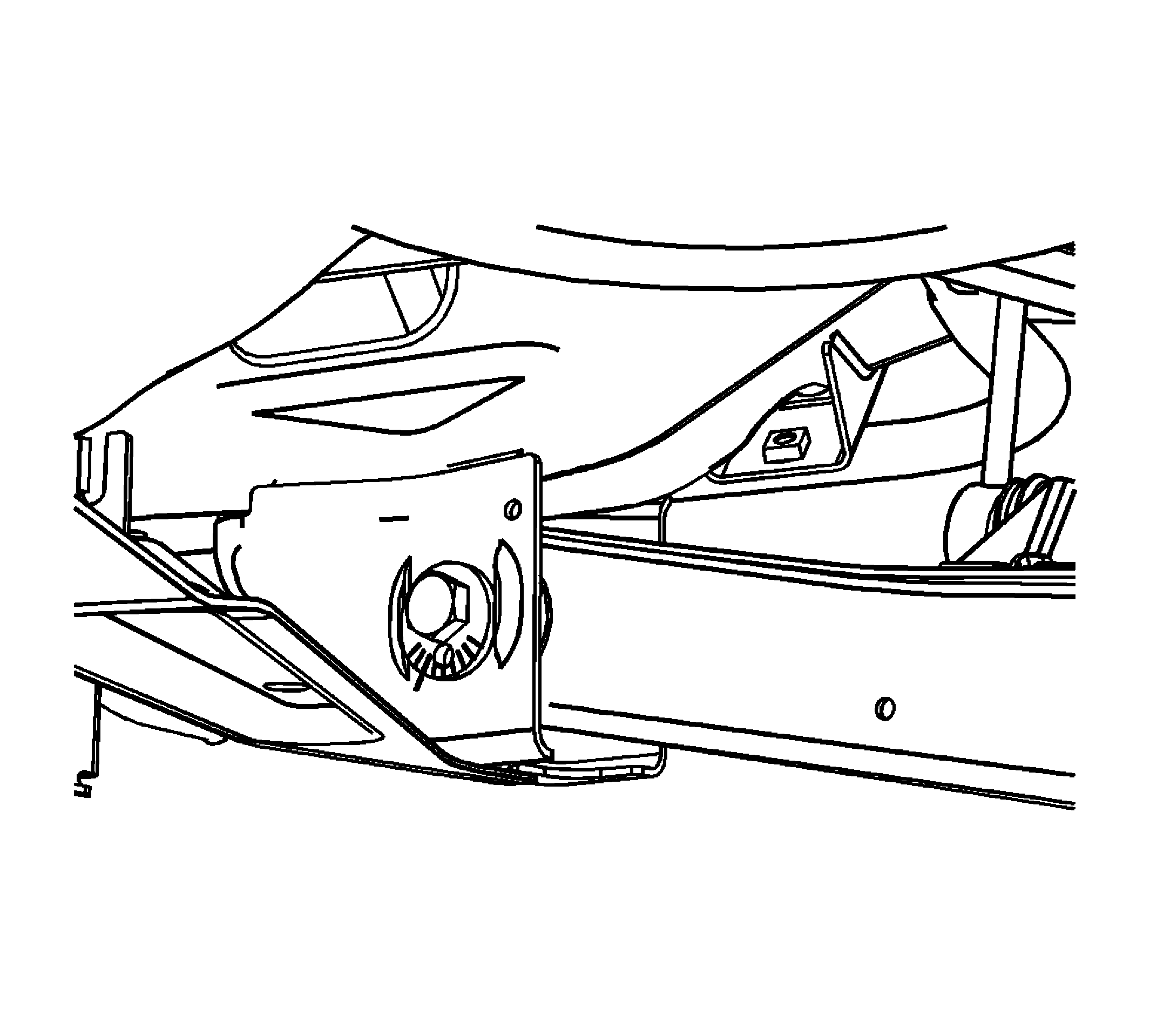

    2. Fig 2: Adjuster To Frame Mark
    GM2193338Courtesy of GENERAL MOTORS CORP.
  2. Install the rear lower control arm adjuster bolt and align the reference marks.

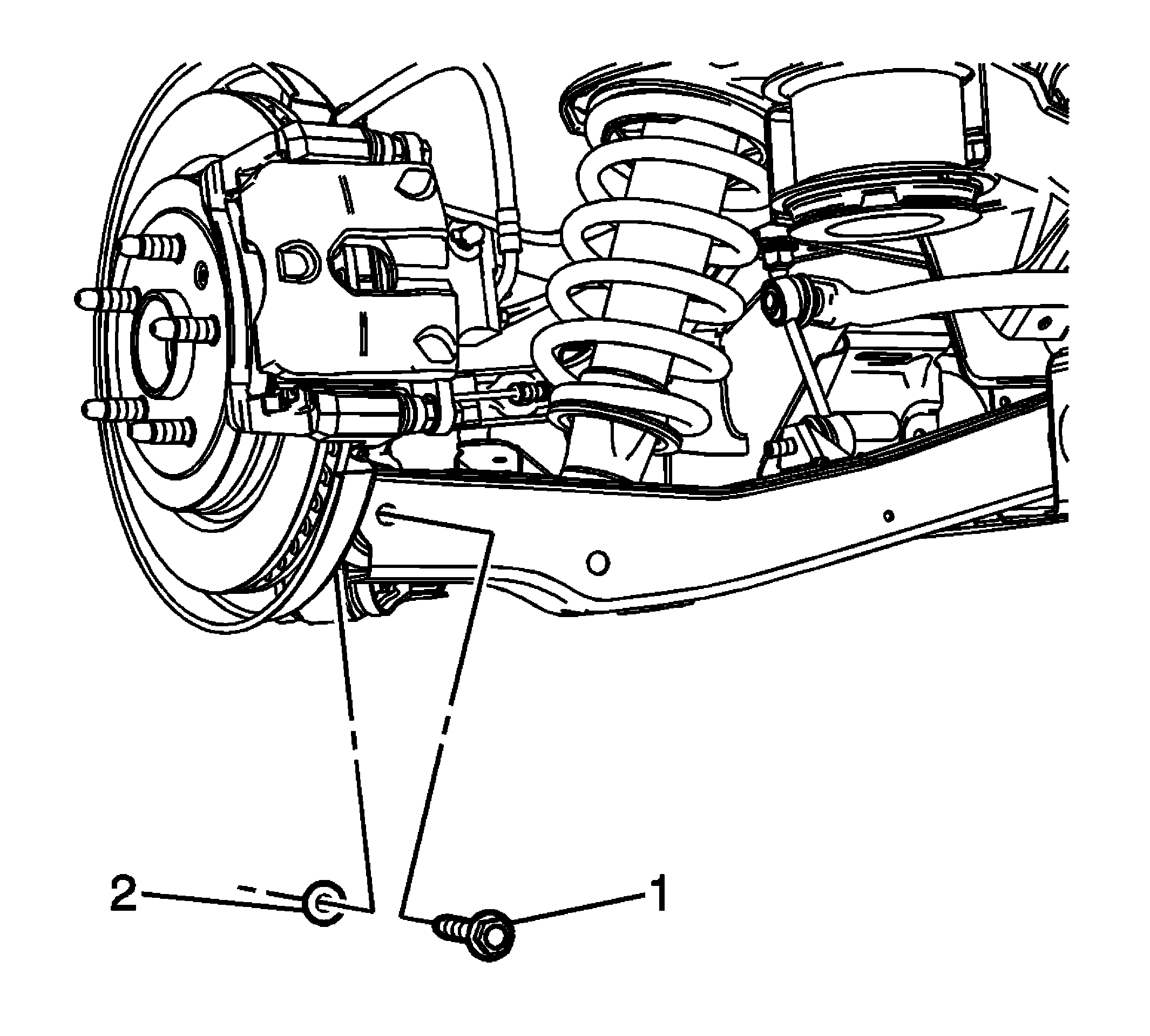

    3. Fig 3: Rear Lower Control Arm Bolt & Washer
    GM2193359Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  3. Install the rear lower control arm bolt (1).
  4. Install the rear lower control arm nut (2) and tighten to 40 N.m (30 lb ft) plus 120 degrees.

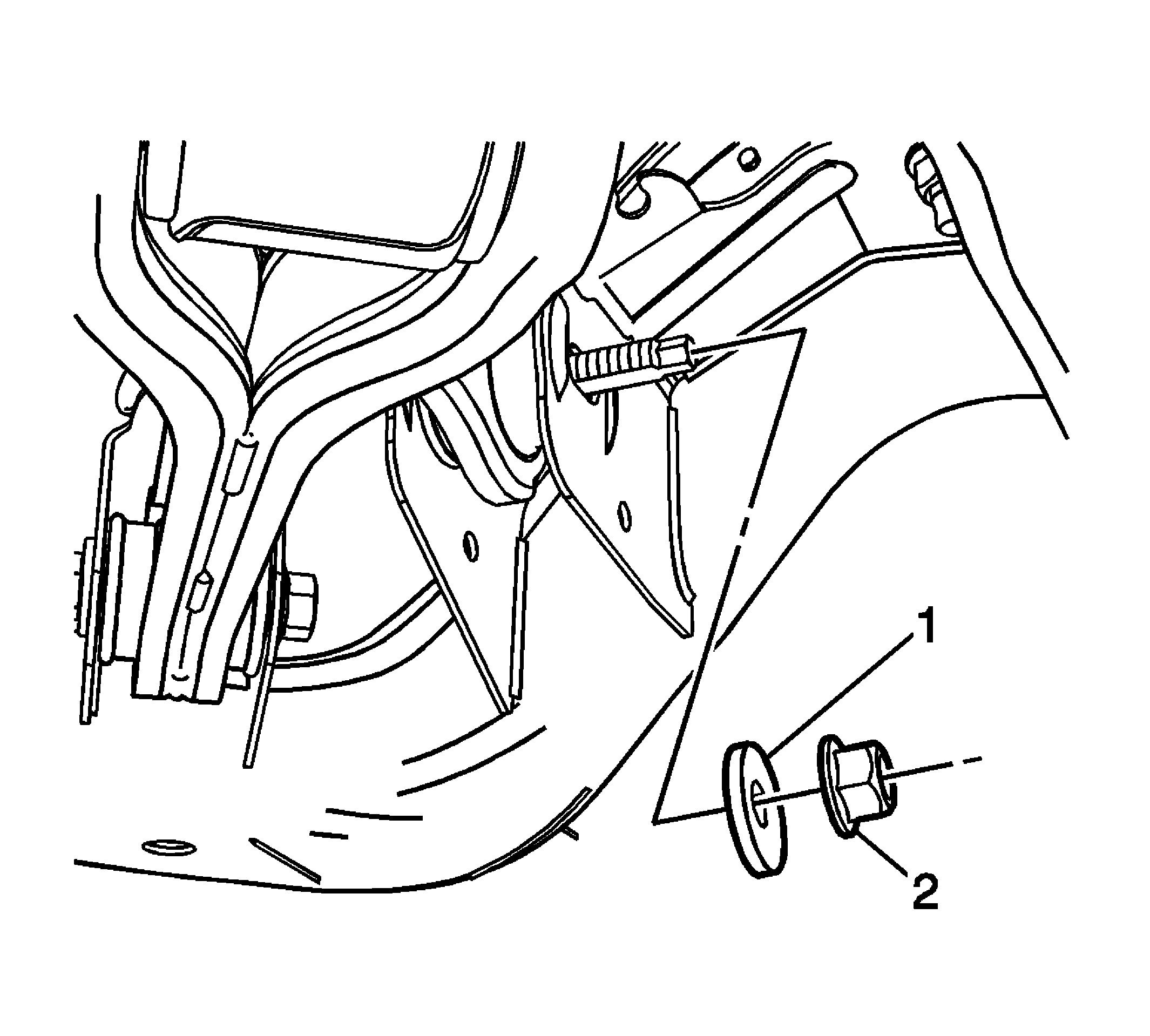

    5. Fig 4: Adjuster Washer & Nut
    GM2196891Courtesy of GENERAL MOTORS CORP.
  5. Install the rear lower control arm adjuster washer (1) and nut (2), then tighten the nut (2) to 115 N.m (85 lb ft).
  6. Install the lower shock absorber bolt to the lower control arm. Refer to Shock Absorber Replacement .
  7. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  8. Lower the vehicle.
  9. Check and adjust the rear wheel alignment, if needed. Refer to Rear Camber Adjustment .
