Removal Procedure

WARNING: This page is about a different car, the 2010 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
Remove the wheel speed sensor wiring harness from the adjuster link. Refer to Rear Wheel Speed Sensor Replacement .

Fig 1: Relationship Mark Of Adjuster To Frame

Courtesy of GENERAL MOTORS CORP.

Mark the relationship of the adjuster to the frame (1).

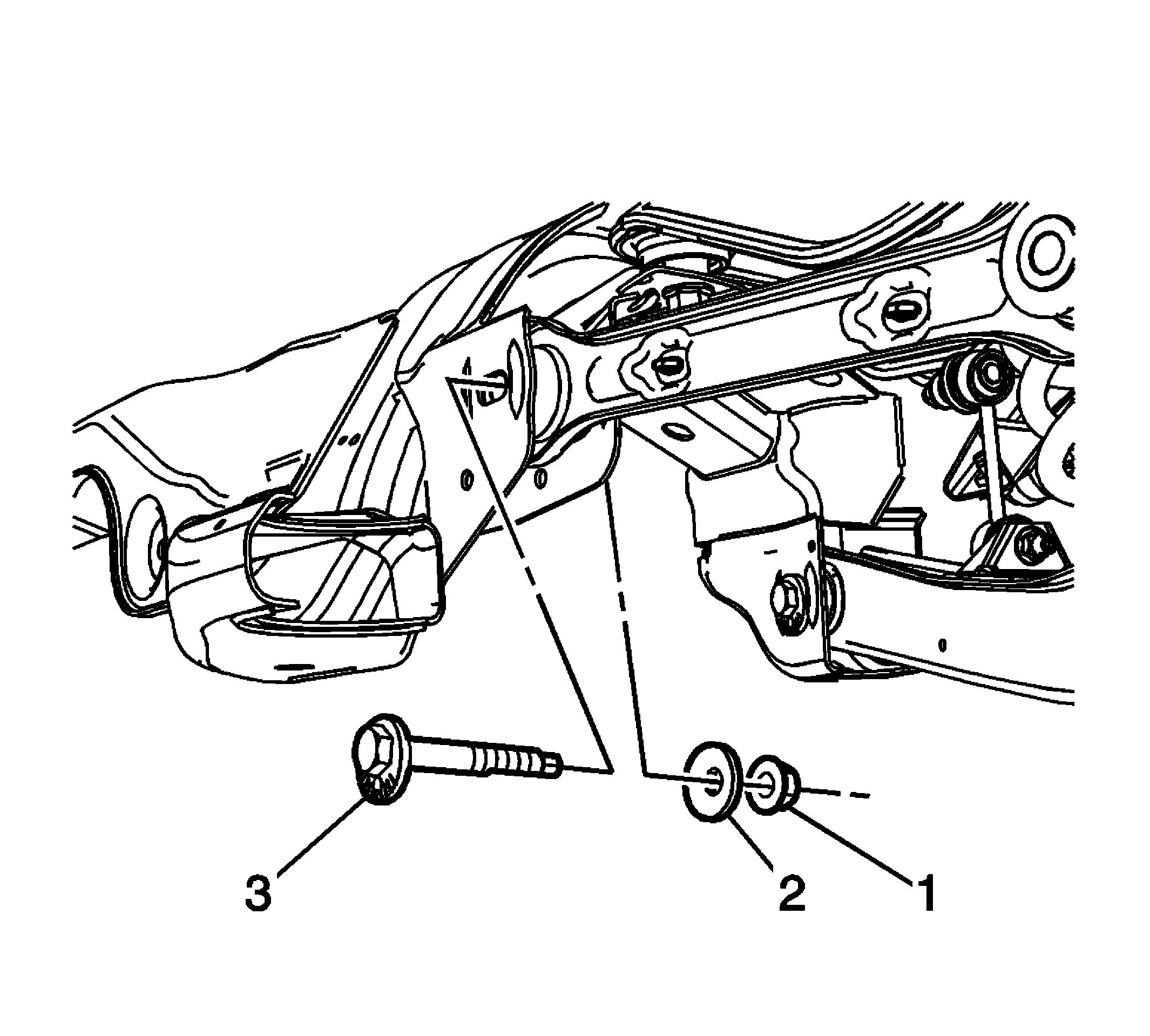

Fig 2: Rear Suspension Adjuster Link Bolt, Nut & Washer

Courtesy of GENERAL MOTORS CORP.

Remove the rear suspension adjuster link bolt (3), nut (1) and the washer (2).

Fig 3: Rear Suspension Adjuster Link Bolt At Knuckle

Courtesy of GENERAL MOTORS CORP.

Remove the rear suspension adjuster link bolt (1) at the knuckle.

Fig 4: Rear Suspension Adjuster Link

Courtesy of GENERAL MOTORS CORP.

NOTE: If the bushings are found to be excessively worn or are damaged, replace the adjustable link. The bushings are NOT serviced.

Remove the rear suspension adjuster link (1).
