Starter Shield Replacement (LLT)
WARNING: This page is about a different car, the 2010 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure: Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . |
|

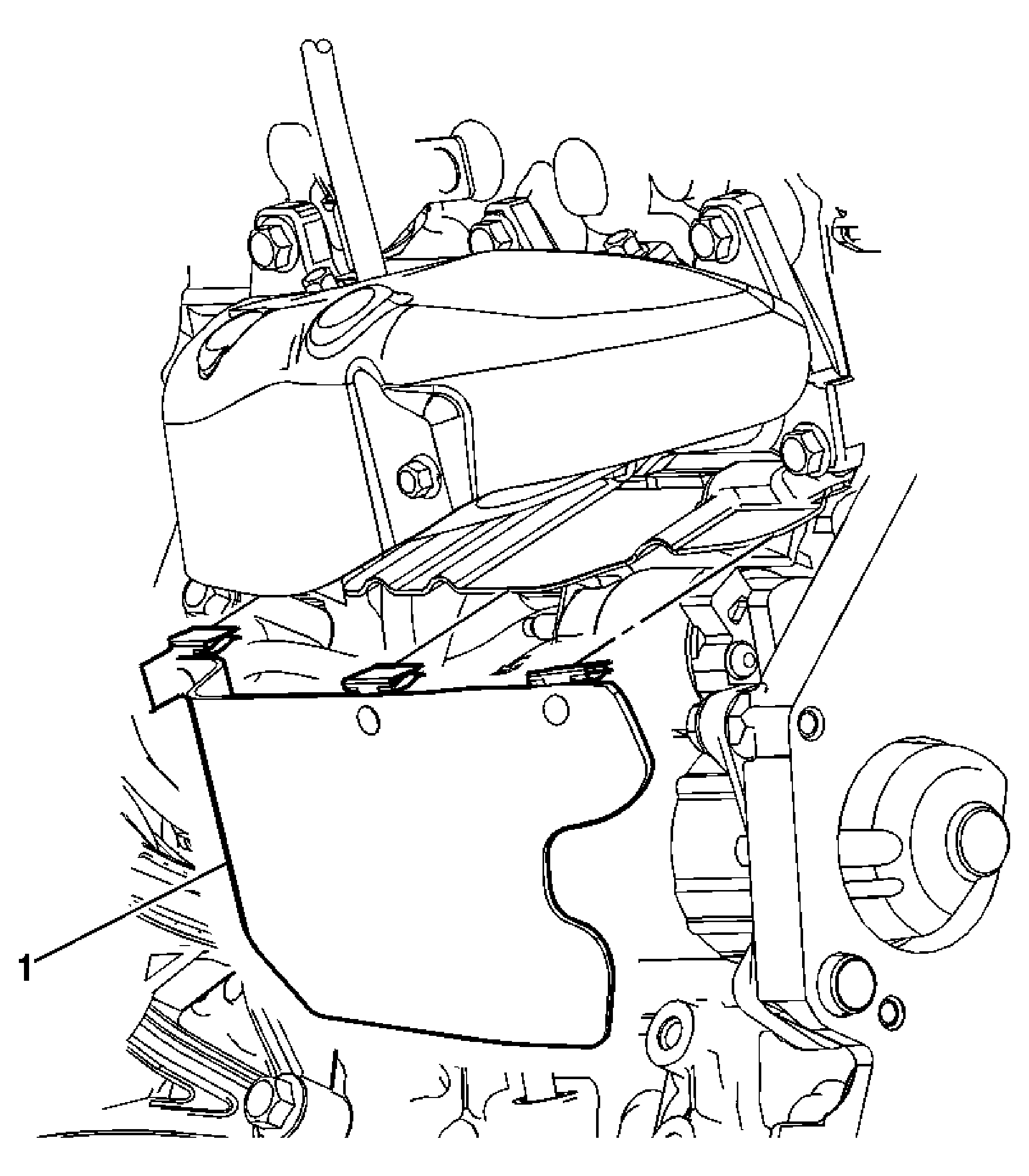

| 1 | Shield Tip: The shield is held to the exhaust manifold gasket with three retainers. |
